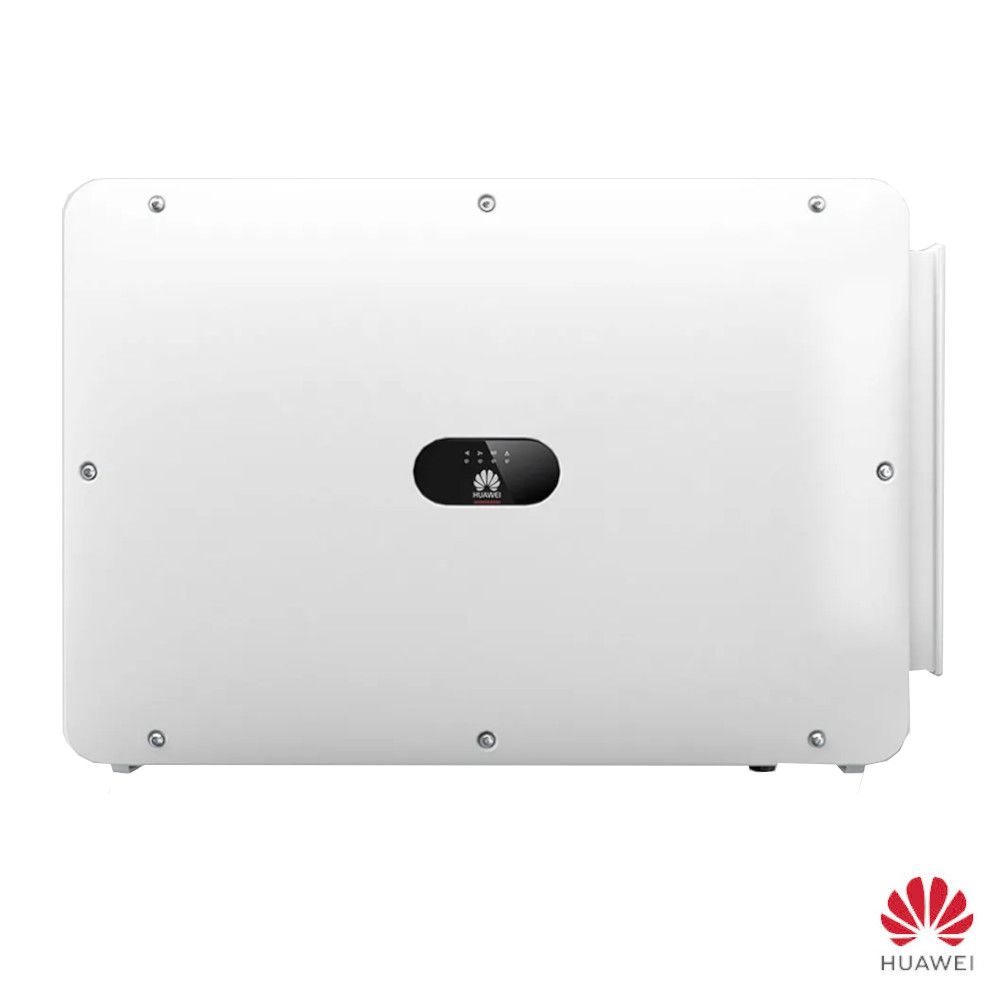

SUN2000-200KTL-H2
Smart String Inverter
| 9
MPP Trackers |
99.0%
Max. Efficiency |
String-level
Management |
Smart I-V Curve
Diagnosis Supported |
| MBUS
Supported |
Fuse Free
Design |
Surge Arresters for
DC & AC |
IP66
Protection |
SUN2000-200KTL-H2
Technical Specifications
|
|
Efficiency | |
| Max. Efficiency | ≥99.00% | |
| European Efficiency | ≥98.60% | |
| Input | ||
| Max. Input Voltage | 1,500 V | |
| Max. Current per MPPT | 30 A | |
| Max. Short Circuit Current per MPPT | 50 A | |
| Start Voltage | 550 V | |
| MPPT Operating Voltage Range | 500 V ~ 1,500 V | |
| Nominal Input Voltage | 1,080 V | |
| Number of Inputs | 18 | |
| Number of MPP Trackers | 9 | |
| Output | ||
| AC Output Power | 200,000 W* | |
| Max. AC Apparent Power | 215,000 VA | |
| Max. AC Active Power (cosφ=1) | 215,000 W | |
| Nominal Output Voltage | 800 V, 3W + PE | |
| Rated AC Grid Frequency | 50 Hz / 60 Hz | |
| Nominal Output Current | 144.4 A** | |
| Max. Output Current | 155.2 A | |
| Adjustable Power Factor Range | 0.8 LG 0.8 LD | |
| Max. Total Harmonic Distortion | ＜1% | |
| Protection | ||
| Input-side Disconnection Device | Yes | |
| Anti-islanding Protection | Yes | |
| AC Overcurrent Protection | Yes | |
| DC Reverse-polarity Protection | Yes | |
| PV-array String Fault Monitoring | Yes | |
| DC Surge Arrester | Type II | |
| AC Surge Arrester | Type II | |
| DC Insulation Resistance Detection | Yes | |
| Residual Current Monitoring Unit | Yes | |
| Communication | ||
| Display | LED Indicators, WLAN + APP | |
| USB | Yes | |
| MBUS | Yes | |
| RS485 | Yes | |
| General | ||
| Dimensions (W x H x D) | 1,035 x 700 x 365 mm (40.7 x 27.6 x 14.4 inch) | |
| Weight (with mounting plate) | ≤86 kg (189.6 lb.) | |
| Operating Temperature Range | -25°C ~ 60°C (-13°F ~ 140°F) | |
| Cooling Method | Smart Air Cooling | |
| Max. Operating Altitude without Derating | 4,000 m (13,123 ft.) | |
| Relative Humidity | 0 ~ 100% | |
| DC Connector | Staubli MC4 EVO2 | |
| AC Connector | Waterproof Connector + OT/DT Terminal | |
| Protection Degree | IP66 | |
| Topology | Transformerless | |
*When environmental temperature is 50℃，AC Output Power 185,000W
**When environmental temperature is 50℃，Nominal Output Current 133.6A
