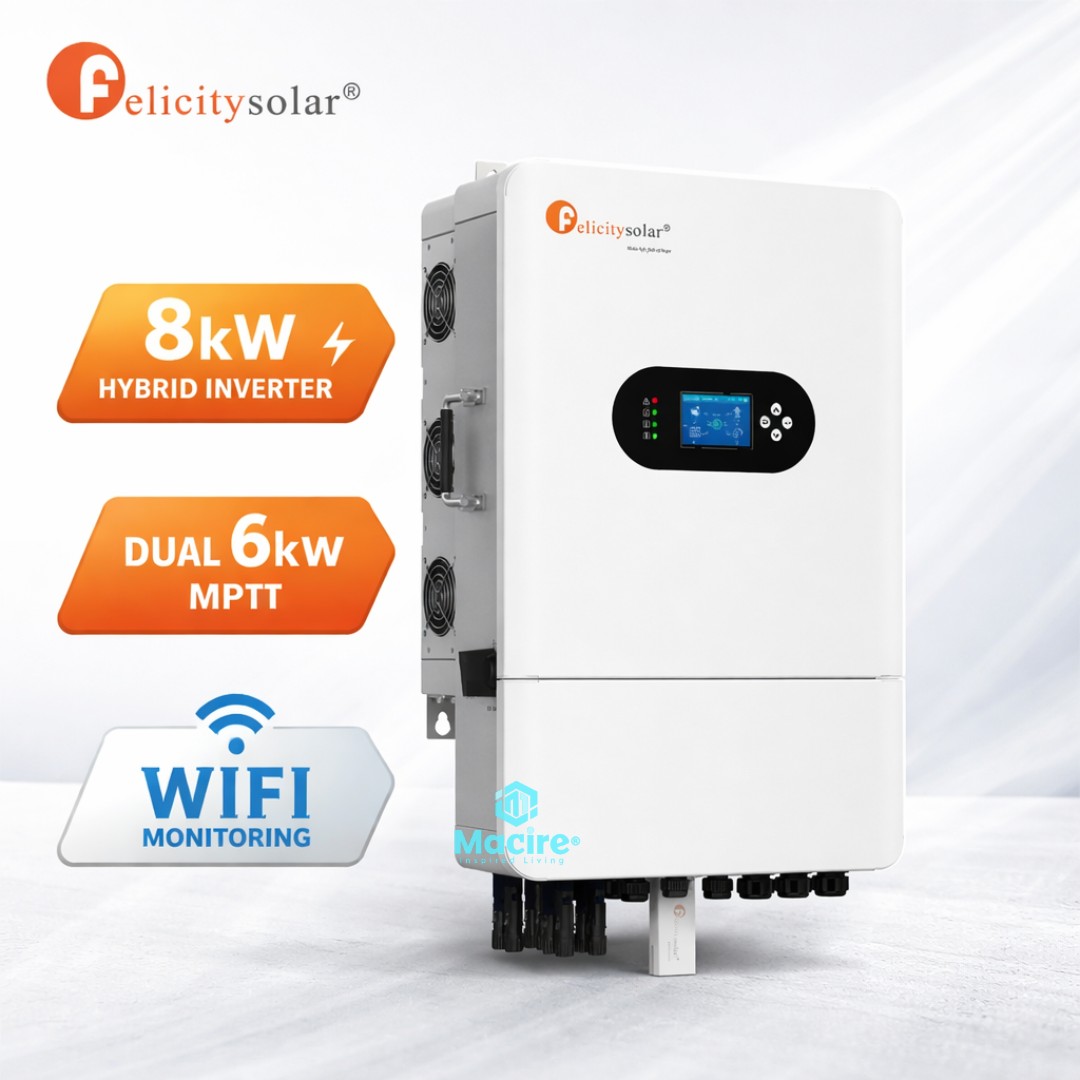

8kW Felicity Low Voltage Hybrid Inverter IVGM8KLP1G1 – Dual MPPT, On/Off-Grid, WiFi Monitoring

The 8kW Felicity Low Voltage Hybrid Inverter is a high-capacity, single-phase solar power solution designed for modern homes, offices, and light commercial setups across Kenya. Built for both on-grid and off-grid operation, this inverter delivers dependable power while maximising solar energy utilisation through its advanced dual MPPT design.

Operating on a 48V low-voltage battery system, the inverter features two independent 6kW MPPT solar inputs, allowing flexible PV array configuration and higher energy harvest even under varying sunlight conditions. With a wide PV input voltage range of 120–425V per MPPT and 26A + 26A PV input current, it supports large solar arrays with ease.

The integrated WiFi monitoring module enables real-time system tracking and performance management, offering users visibility and control over their energy usage. Supplied and supported by Macire, each Felicity inverter is verified for local conditions, system compatibility, and long-term reliability.

⭐ Genuine Product | Macire Verified | Warranty Supported

System Architecture & Configuration

Inverter & Power System

High-performance 8kW hybrid inverter design
48V low-voltage battery architecture
Single-phase AC output for residential and commercial use
Supports on-grid, off-grid, and hybrid operating modes

Solar Charging & MPPT

Dual independent MPPT solar chargers
2 × 6kW MPPT channels
Wide PV input voltage range (120–425V per MPPT)
High PV input current capacity (26A + 26A)

Monitoring & Control

Built-in WiFi monitoring module
Remote system monitoring and diagnostics
Smart energy management and performance tracking

???? Technical Specifications (Summary)

???? Key Features

8kW high-capacity single-phase power output
48V low-voltage battery compatibility
Dual 6kW MPPT for higher solar harvesting
Wide PV voltage range for flexible array design
High PV input current handling capability
Integrated WiFi monitoring and control
Supports on-grid and off-grid operation
Stable output for sensitive electronics
Scalable for growing solar installations
Macire-tested for Kenyan operating conditions

???? Applications / Use Cases

???? Residential homes & maisonettes
???? Offices and commercial buildings
???? Schools and institutions
???? Shops and retail outlets
???? Clinics and pharmacies
???? Solar backup and self-consumption systems

???? Installation & Engineering Notes

Designed for 48V battery systems
Proper PV string sizing required per MPPT limits
Adequate ventilation recommended for inverter location
Surge protection and grounding advised
Macire provides system sizing, installation guidance, and commissioning support

???? Care, Maintenance & Operations

Ensure clean and dust-free installation environment
Check cable connections periodically
Monitor system performance via WiFi platform
Avoid exceeding PV and load limits
Keep firmware updated where applicable
Routine inspection recommended by Macire technicians

⚠️ Do’s & Don’ts

✅ Do’s

Do use compatible 48V lithium or lead-acid batteries
Do size solar arrays within MPPT limits
Do install with proper grounding and protection
Do monitor performance using WiFi tools
Do follow Macire installation recommendations

❌ Don’ts

Don’t exceed inverter rated load
Don’t mix incompatible battery types
Don’t block ventilation openings
Don’t operate without proper surge protection
Don’t ignore system alerts or warnings

???? Compatibility Section

Compatible with:

48V lithium and lead-acid battery banks
High-voltage solar panel arrays (within MPPT range)
Single-phase residential wiring systems
Macire solar panels, batteries, and protection accessories

???? Performance / Load Handling Overview

❓ Mini FAQ

Q1: Is this inverter suitable for home solar systems?
Yes. It is ideal for residential and small commercial solar installations.

Q2: Does it support off-grid operation?
Yes. It supports off-grid, on-grid, and hybrid configurations.

Q3: Does it include WiFi monitoring?
Yes. WiFi monitoring is built in.

Q4: What battery voltage does it use?
It operates on a 48V low-voltage battery system.

Q5: Do you deliver and support nationwide?
Yes. Macire provides Kenya-wide delivery and technical support.

???? Why Buy from Macire

Genuine Felicity hybrid inverters only
Macire verification before dispatch
Kenya-wide delivery via Macire Logistics
Expert system sizing and design support
Professional installation guidance
After-sales service and warranty support
Trusted by homes, installers, and businesses
Proven performance in Kenyan conditions
