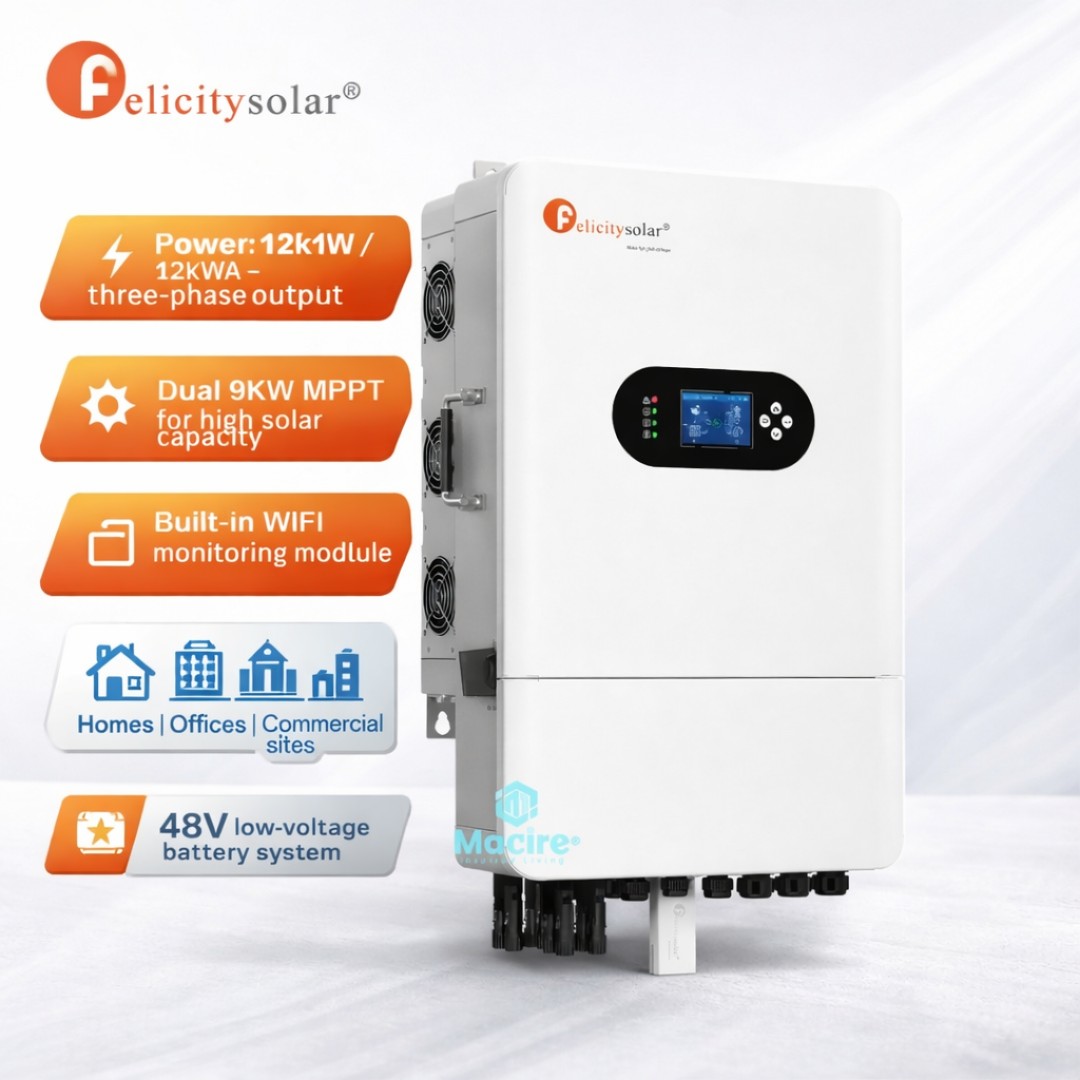

The 12kW Felicity Low Voltage Hybrid Inverter is a high-capacity three-phase solar power solution engineered for demanding residential, commercial, and institutional applications across Kenya. Designed for on-grid and off-grid operation, this inverter delivers stable three-phase output while maximising solar energy utilisation through advanced MPPT technology.
Operating on a 48V low-voltage battery system, the inverter features dual 9kW MPPT solar inputs, allowing flexible PV string design and superior energy harvesting across wide operating conditions. With a broad PV input voltage range of 160–650V DC per MPPT and 26A + 26A PV input current, it supports large solar arrays suited to higher-load installations.
The integrated WiFi monitoring module enables real-time system visibility, performance tracking, and diagnostics. Supplied and supported by Macire, each Felicity inverter is verified for compatibility with Kenyan grid conditions, system safety, and long-term reliability.
⭐ Genuine Product | Macire Verified | Warranty Supported
System Architecture & Configuration
Inverter & Power System
High-performance 12kW hybrid inverter platform
48V low-voltage battery architecture
True three-phase AC output
Supports on-grid, off-grid, and hybrid modes
Solar Charging & MPPT
Dual independent MPPT solar chargers
2 × 9kW MPPT channels
Wide PV voltage operating window (160–650V DC per MPPT)
High PV input current handling (26A + 26A)
Monitoring & Control
Integrated WiFi monitoring module
Remote system monitoring and fault diagnostics
Smart energy management and load balancing
???? Technical Specifications (Summary)
| Specification | Details |
|---|---|
| Brand | Felicity |
| Model | IVGM12KLP3G1 |
| Rated Power | 12 kW / 12 kVA |
| System Voltage | 48V (Low Voltage) |
| Phase | Three Phase |
| Operating Mode | On-Grid / Off-Grid / Hybrid |
| MPPT Channels | 2 × 9kW |
| PV Input Voltage | 160–650V DC per MPPT |
| PV Input Current | 26A + 26A |
| Monitoring | Built-in WiFi |
| Application Type | Residential, commercial & institutional |
| Warranty | Macire-backed (terms apply) |
???? Key Features
12kW high-capacity three-phase power output
48V low-voltage battery compatibility
Dual 9kW MPPT for high solar input capacity
Wide PV voltage range for flexible string design
High PV current handling capability
Built-in WiFi monitoring and control
Supports grid-tied and off-grid operation
Stable output for sensitive and motor loads
Scalable for expanding solar systems
Macire-tested for Kenyan operating environments
???? Applications / Use Cases
???? Large residential homes & estates
???? Commercial buildings and offices
???? Schools and training institutions
???? Workshops and light industrial facilities
???? Shopping centres and retail complexes
???? Hospitals and medical facilities
???? Installation & Engineering Notes
Designed for 48V battery banks
Proper three-phase load balancing required
PV string design must align with MPPT voltage limits
Adequate ventilation and surge protection recommended
Macire provides system design, installation guidance, and commissioning support
???? Care, Maintenance & Operations
Maintain clean and ventilated installation area
Inspect DC and AC connections periodically
Monitor performance through WiFi platform
Observe battery health and system alerts
Avoid exceeding PV and inverter ratings
Scheduled inspection recommended by Macire
⚠️ Do’s & Don’ts
✅ Do’s
Do use compatible 48V lithium or lead-acid batteries
Do design PV arrays within MPPT voltage limits
Do balance three-phase loads correctly
Do install proper grounding and surge protection
Do follow Macire technical guidelines
❌ Don’ts
Don’t exceed 12kW rated output
Don’t mix incompatible battery chemistries
Don’t obstruct inverter ventilation
Don’t bypass protection devices
Don’t ignore alarms or warning indicators
???? Compatibility Section
Compatible with:
48V lithium and lead-acid battery systems
High-voltage solar panel strings (within MPPT range)
Three-phase electrical distribution systems
Macire solar panels, batteries, and protection accessories
???? Performance / Load Handling Overview
| Load Level | Typical Performance |
|---|---|
| Light Load | High efficiency, low losses |
| Medium Load | Optimal PV and battery utilisation |
| High Load | Stable three-phase output |
| Peak Load | Managed via hybrid power blending |
❓ Mini FAQ
Q1: Is this inverter suitable for three-phase installations?
Yes. It provides true three-phase output for balanced loads.
Q2: Can it operate fully off-grid?
Yes. It supports off-grid, on-grid, and hybrid configurations.
Q3: Does it include WiFi monitoring?
Yes. WiFi monitoring is built in.
Q4: What battery voltage does it use?
It operates on a 48V low-voltage battery system.
Q5: Do you deliver and support nationwide?
Yes. Macire offers Kenya-wide delivery and technical support.
???? Why Buy from Macire
Genuine Felicity hybrid inverters only
Macire verification before dispatch
Kenya-wide delivery via Macire Logistics
Expert system sizing and design support
Professional installation guidance
After-sales service and warranty support
Trusted by installers and businesses nationwide
Proven performance in Kenyan conditions
