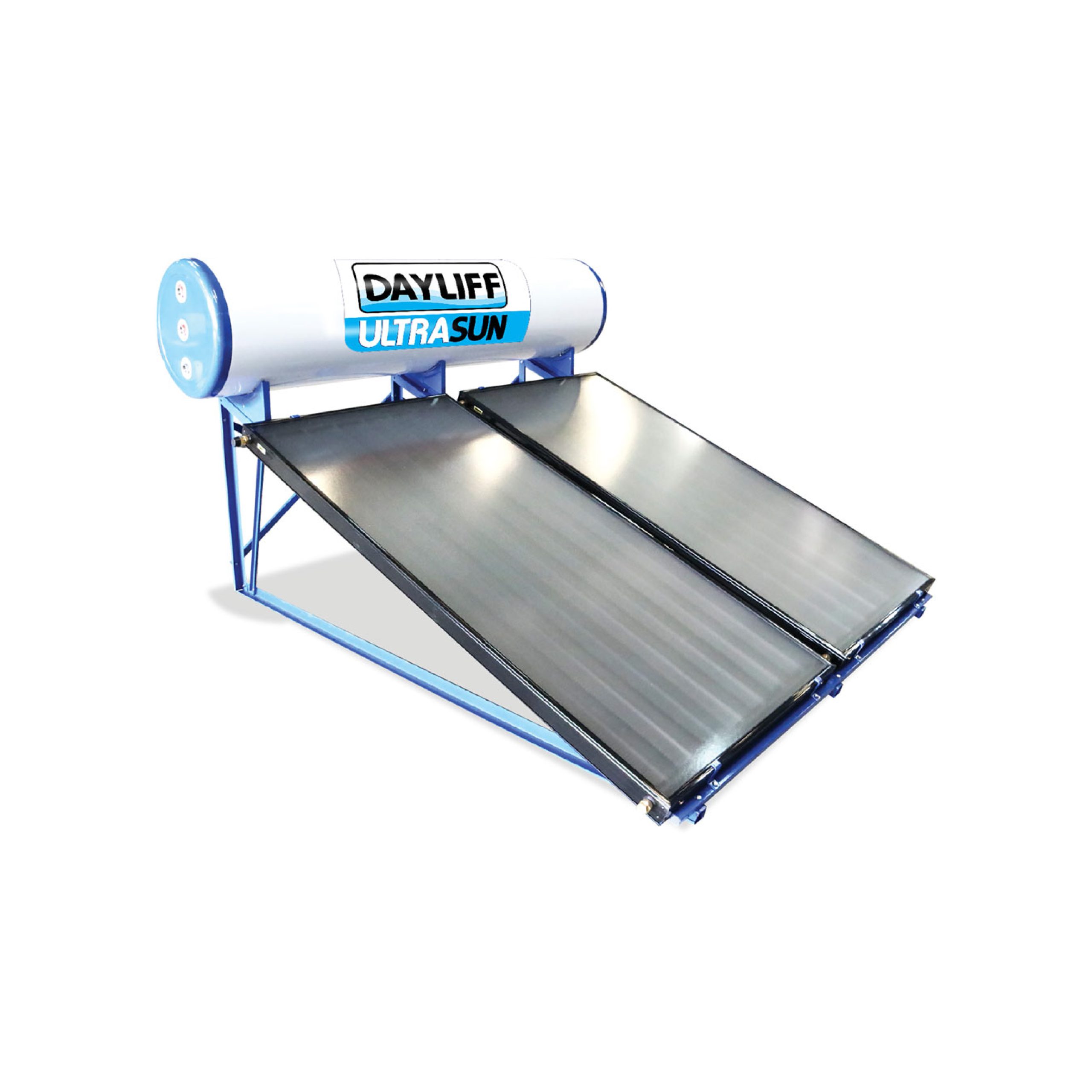

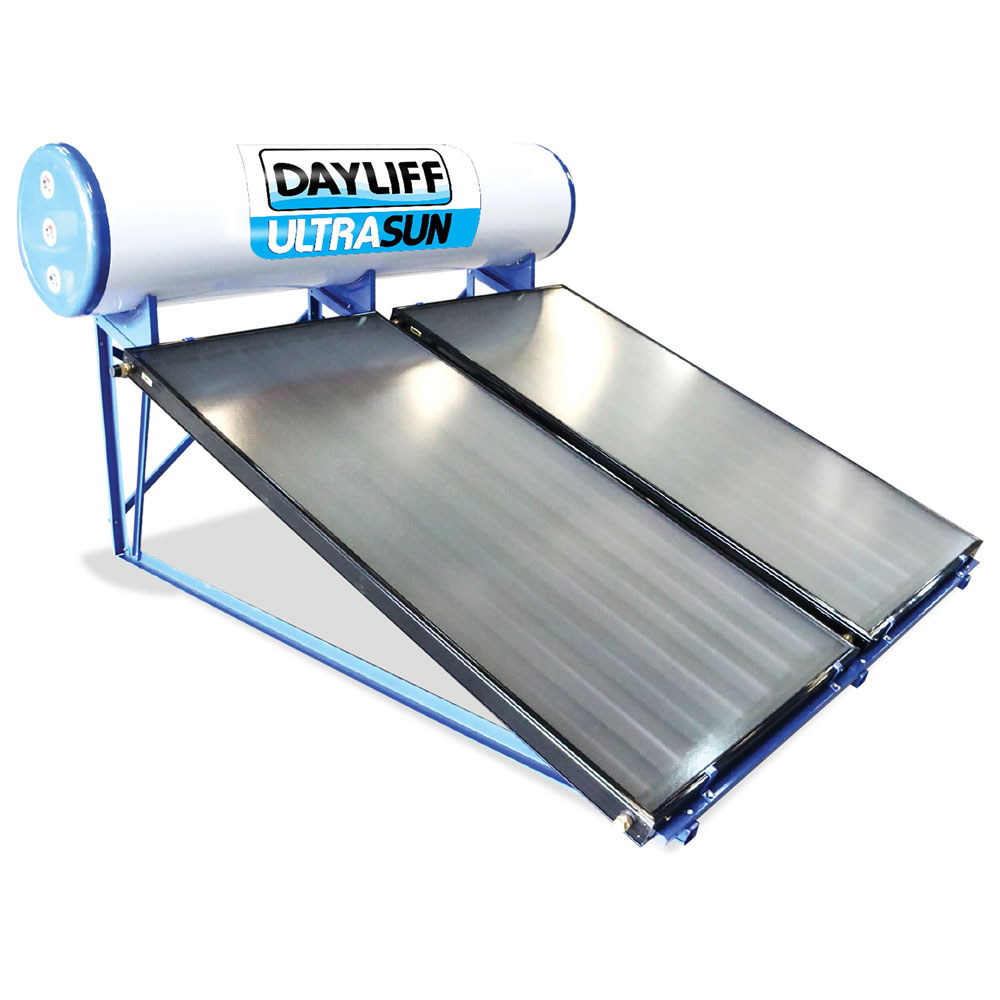

UltraSun Standard 300L Direct Solar Hot Water System
KSh235,600.00KSh298,000.00 (-21%)
UltraSun Standard 300L Direct Solar Hot Water System ????????
The UltraSun Standard 300L Direct Solar Hot Water System is a high-efficiency, eco-friendly solution designed to provide reliable and sustainable hot water for residential and commercial use. This system harnesses solar energy to heat water directly, ensuring energy savings and reducing dependency on electricity or gas for water heating.
???? Key Features:
- Large Capacity ????: 300L capacity, ideal for medium to large households or small businesses.
- Direct Solar Heating ☀️: Water is heated directly by the sun without the need for a separate heat exchanger, making the system more efficient.
- Eco-Friendly ????: Uses renewable solar energy, reducing carbon emissions and electricity consumption.
- Durable Construction ????: Built with high-quality materials designed to withstand harsh environmental conditions, ensuring long-lasting performance.
- Fast Heating ⚡: Efficient heat absorption for quick hot water delivery.
- Low Maintenance ????️: Minimal upkeep required, thanks to its simple and reliable design.
- Corrosion-Resistant Materials ????️: Made with corrosion-resistant components for durability and efficiency in all climates.
Ultrasun Solar hot water systems are economical effective heaters that provide excellent performance,good value and guaranteed long life. They are of Open Loop thermosyphon design with water flow circulating through the collectors and being stored in the tank ready for use. Features include;
- Heavy duty stainless steel AISI 304 tank complete with 2kw electric heater, thermostat and a sacrificial anode to protect against corrosion
- Ultra high efficiency solar collectors incorporating capillary copper pipes ultrasonically welded on a black chrome backplate covered by high transmittance glass• Insulated copper pipe for hot water complete with necessary compression fittings, pressure release valve and a drain cock
- Galvanised mounting frame
Ultrasun Solar water Systems are available in three sizes to suit domestic and small scale institutional applications. They are effective and robust products designed for many years of trouble free operation with a 5 year guarantee to demonstrate product quality
OPERATING CONDITIONS
Water quality: Water outside the following limits should be appropriately pre-treated. Clarity:Clear, TDS:>600mg/l, Hardness:>200mg/l,CaCo3
Saturation Index: >0.8
Max. Operating Temperature: 1500C
Max. Operating Pressure: 6bar
NOTE
Maximum heating output is based on average irradiation levels of 6000W/m2/day prevailing in September – March and minimum Heating output is based on average irradiation levels of 4000W/m2/day prevailing in June/July and are for indicative purposes only.
| Solar Specifications | |
| Model | AG 300 |
| System Tank Size (Litres) | 300 |
| Typical Household (People) | 10 |
| Collector Model | 2x L UUB Superline |
| Collector Area (M2) | 4.6 |
| Collector Weights(Kgs) | 82 |
| Collector Fluid Capacity (litres) | 3.0 |
| Max Heat Output/Day (kWhrs) | 24 |
| Min Heat Output/Day (kWhrs) | 16 |
| Empty Weight(Kg) | 98 |
| Full Weight(Kg) | 398 |
