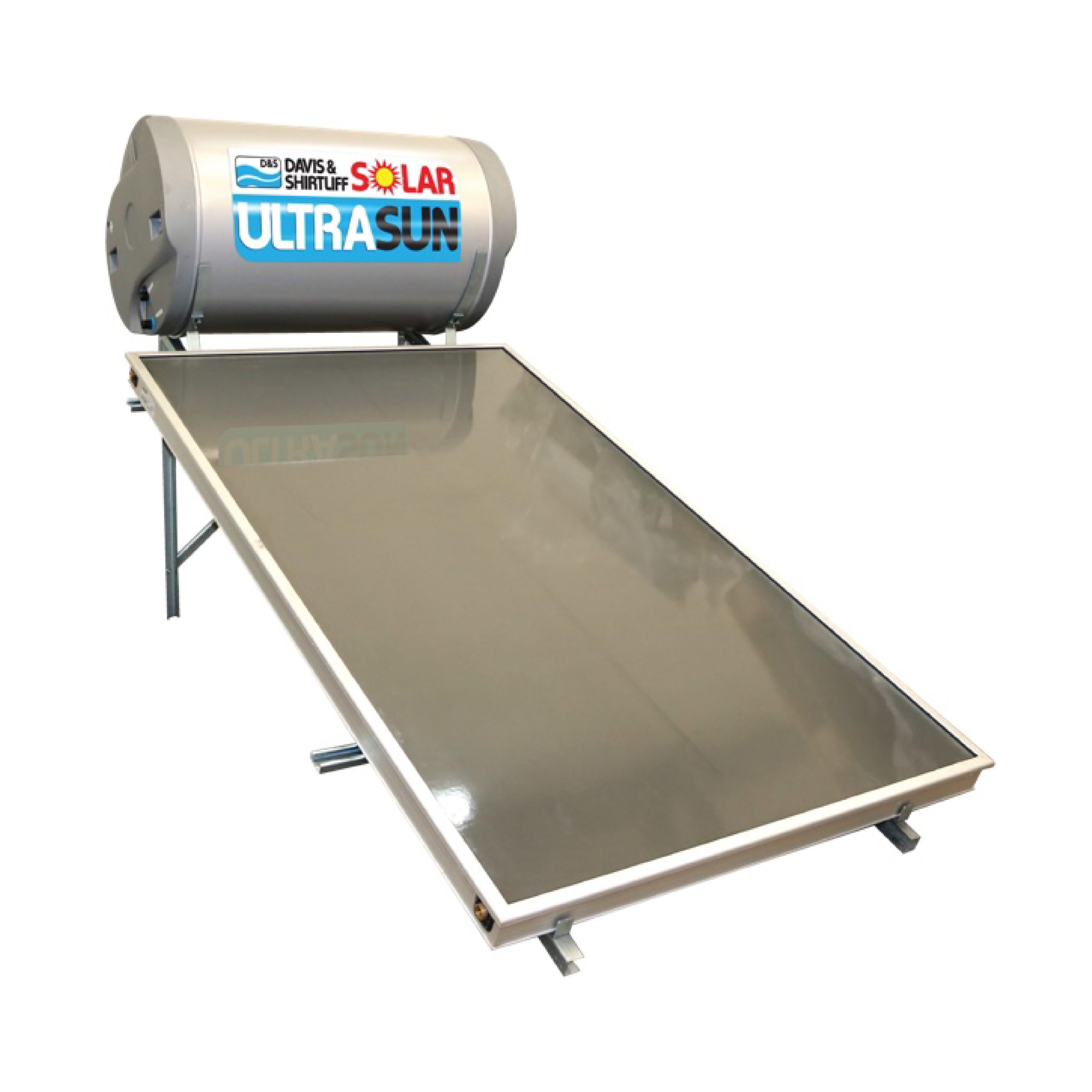

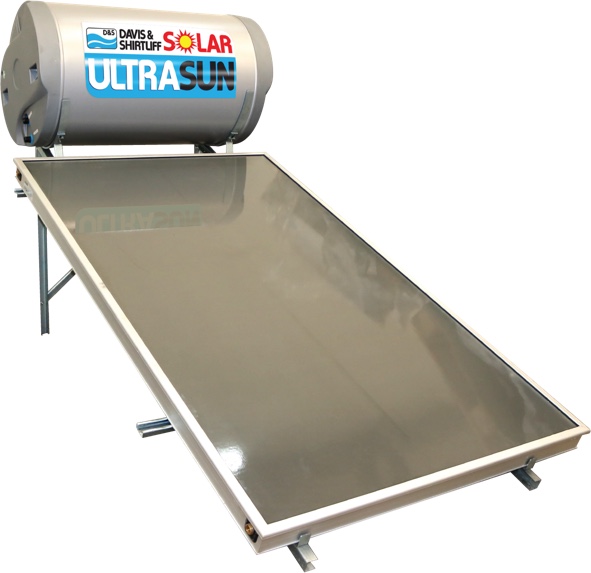

Ultrasun Solar hot water systems are economical effective heaters that provide excellent performance,good value and guaranteed long life. They are of Open Loop thermosyphon design with water flow circulating through the collectors and being stored in the tank ready for use. Features include;
- Heavy duty stainless steel AISI 304 tank complete with 2kw electric heater, thermostat and a sacrificial anode to protect against corrosion
- Ultra high efficiency solar collectors incorporating capillary copper pipes ultrasonically welded on a black chrome backplate covered by high transmittance glass• Insulated copper pipe for hot water complete with necessary compression fittings, pressure release valve and a drain cock
- Galvanised mounting frame
Ultrasun Solar water Systems are available in three sizes to suit domestic and small scale institutional applications. They are effective and robust products designed for many years of trouble free operation with a 5 year guarantee to demonstrate product quality
OPERATING CONDITIONS
Water quality: Water outside the following limits should be appropriately pre-treated. Clarity:Clear, TDS:>600mg/l, Hardness:>200mg/l,CaCo3
Saturation Index: >0.8
Max. Operating Temperature: 1500C
Max. Operating Pressure: 6bar
NOTE
Maximum heating output is based on average irradiation levels of 6000W/m2/day prevailing in September – March and minimum Heating output is based on average irradiation levels of 4000W/m2/day prevailing in June/July and are for indicative purposes only.
| Solar Specifications | |
| Model | AG 200 |
| System Tank Size (Litres) | 200 |
| Typical Household (People) | 7 |
| Collector Model | 2x S UBB |
| Collector Area (M2) | 3.4 |
| Collector Weights(Kgs) | 64 |
| Collector Fluid Capacity (litres) | 2.4 |
| Max Heat Output/Day (kWhrs) | 18 |
| Min Heat Output/Day (kWhrs) | 12 |
| Empty Weight(Kg) | 85 |
| Full Weight(Kg) | 285 |
