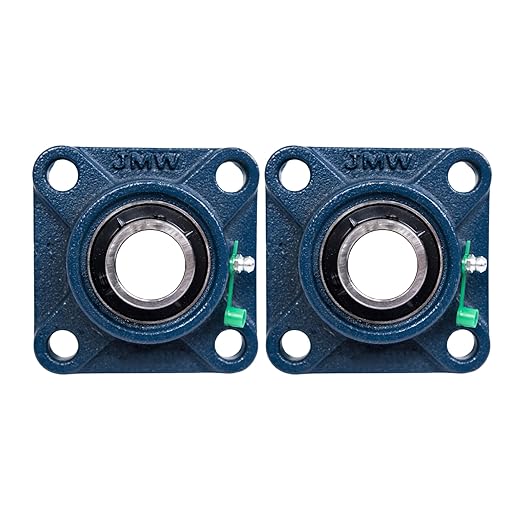

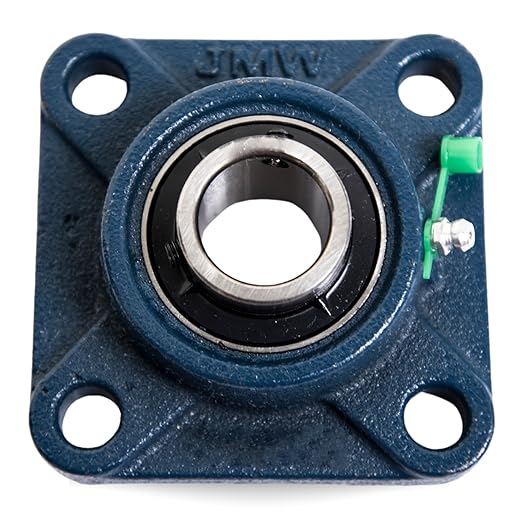

UCF 213-40 bearing Square flanged ball bearing unit with set screw locking cast iron housing

Introducing the UCF 213-40 Bearing: ????️????????

These square flanged ball bearing units, compliant with Japanese Industrial Standards (JIS), are engineered for reliability and durability in various industrial applications. Featuring an insert bearing with extended inner ring and set screw locking, they are designed for both constant and alternating rotation.

The UCF 213-40 Bearing is housed in a sturdy cast iron housing, which can be securely bolted to a machine wall or frame. This ensures stability and precision in operation. With the ability to accommodate moderate initial misalignment, these bearings offer versatility while maintaining performance.

Key Features:

• Superior resistance to contamination
• Designed to withstand high temperatures and speeds

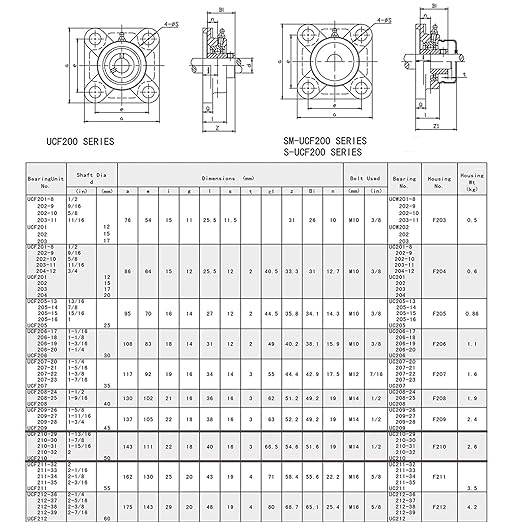

Specifications:

• Shaft diameter: 63.5 mm
• Housing overall width: 50 mm
• Bearing width: 65.1 mm
• Basic dynamic load rating: 57.2 kN
• Basic static load rating: 40 kN
• Limiting speed: 2,350 r/min

Properties:

• Housing type: Flanged
• Flanged housing type: Square
• Number of bolt holes for fasteners: 4
• Bore type: Cylindrical
• Sealing: Seal and flinger on both sides
• Lubricant: Grease

Upgrade your machinery with the reliable and robust UCF 213-40 Bearing for enhanced performance and longevity!
