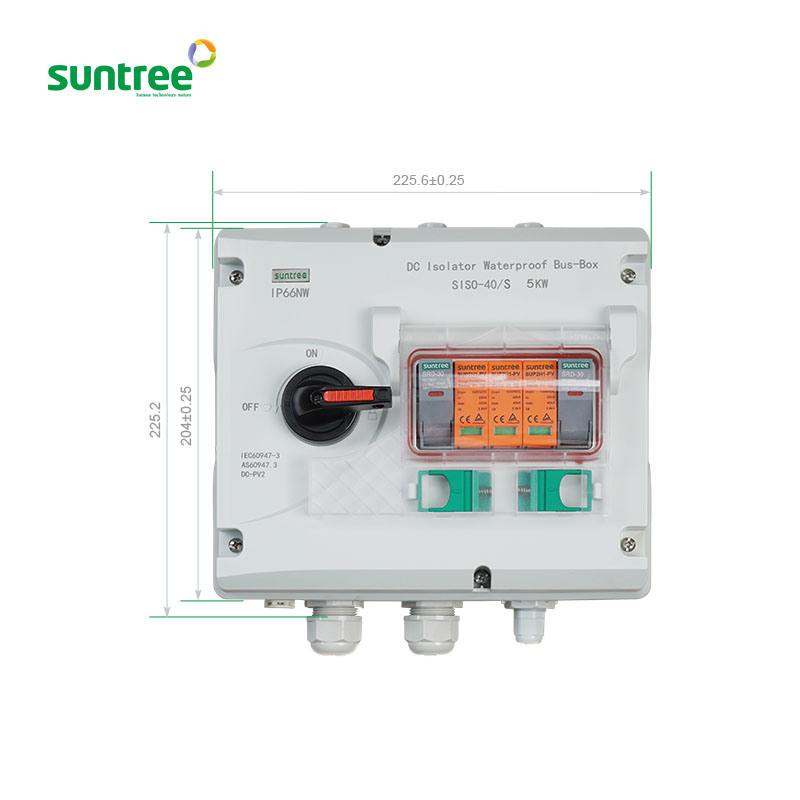

Suntree Dc Isolating Switch Waterproof Bus Box

Suntree DC Isolating Switch Waterproof Bus Box

Introducing the Macire Suntree DC Isolating Switch Waterproof Bus Box—your ultimate solution for efficient and safe photovoltaic (PV) system management. Designed to meet the rigorous demands of modern solar installations, this robust device ensures optimal performance and protection in both residential and commercial settings.

Key Features:

• High Voltage Capacity: Rated voltage up to DC1500V, accommodating a wide range of PV system requirements.
• Ample Current Handling: Supports rated currents up to 40A, ensuring compatibility with various solar configurations.
• Superior Protection: Complies with international standards IEC/EN60947-2, AS/NZS IEC60947.3, and IEC61643-31, guaranteeing reliable performance and safety.
• Versatile Installation: Suitable for both indoor and outdoor use, with flexible vertical or horizontal mounting options to fit diverse installation needs.
• Durable Construction: Operates efficiently in extreme temperatures ranging from -40°C to +70°C, ensuring reliability in harsh environmental conditions.

Scope of Application:

The Macire Suntree DC Isolating Switch Waterproof Bus Box is engineered for seamless integration into photovoltaic systems. It serves as a crucial wiring device, facilitating the orderly connection of PV modules and ensuring efficient power convergence. This bus box consolidates the electrical output from multiple PV strings, forming a comprehensive solar power generation system when combined with controllers and inverters.

Additionally, it is suitable for off-grid systems, offering energy storage and maintenance functionalities. The device is compatible with DC circuit breakers, fuses, surge protectors, MC4 connectors, M25 waterproof connectors, and photovoltaic cable connectors, providing a comprehensive solution for your solar infrastructure.

Robust Protection Features:

With an IP66 protection rating, the Macire Suntree DC Isolating Switch Waterproof Bus Box offers exceptional resistance against water, dust, corrosion, and ultraviolet radiation. This makes it ideal for outdoor environments exposed to rain, dust, extreme temperatures, and intense UV rays.

Technical Specifications:

• Rated Voltage (Ue): Up to DC1500V
• Rated Insulation Voltage (Ui): DC1500V
• Rated Current (Ie): 6A to 55A
• Shock Withstand Voltage (Uimp): 8kV
• Short-Time Withstand Current (Icw): 1.0kA (1s)
• Short Circuit Capacity (Icm): 1.7kA
• Mechanical Life: 10,000 operations
• Overvoltage Category: III
• Utilization Category: DC-PV1, DC-PV2 (DC-21B)

Environmental Adaptability:

• Operating Temperature: -40°C to +70°C
• Altitude: Up to 2000 meters
• Pollution Degree: Level 3
• Storage Temperature: -25°C to +60°C

Applications:

The Macire Suntree DC Isolating Switch Waterproof Bus Box is widely utilized across various industries, including:

• Renewable Energy Installations: Ensuring safe and efficient operation of solar and wind power systems.
• Industrial Facilities: Providing reliable power distribution in smelting, chemical processing, and electronics manufacturing.
• Infrastructure Projects: Supporting energy needs in airports, railways, construction sites, and ports.
• Commercial Establishments: Maintaining power integrity in shopping malls, hotels, and more.

Compliance with Standards:

This product adheres to both national and international standards, including GB/T 14048.2, GB/T 14048.1/3, GB/T18802.1, IEC/EN60947-2, AS/NZS IEC60947.3, and IEC61643-31, ensuring it meets the highest quality and safety benchmarks.

Installation and Maintenance:

Designed for ease of installation, the Macire Suntree DC Isolating Switch Waterproof Bus Box accommodates vertical or horizontal mounting. It is essential to use connectors with a waterproof rating of IP65 or higher to maintain the integrity of the protection grade. Regular inspections and maintenance are recommended to ensure optimal performance and longevity.

Enhance Your Solar Power System with the Macire Suntree DC Isolating Switch Waterproof Bus Box

Invest in the Macire Suntree DC Isolating Switch Waterproof Bus Box to elevate the safety, efficiency, and reliability of your photovoltaic installations. Its robust design and compliance with international standards make it an indispensable component for modern solar power systems.
