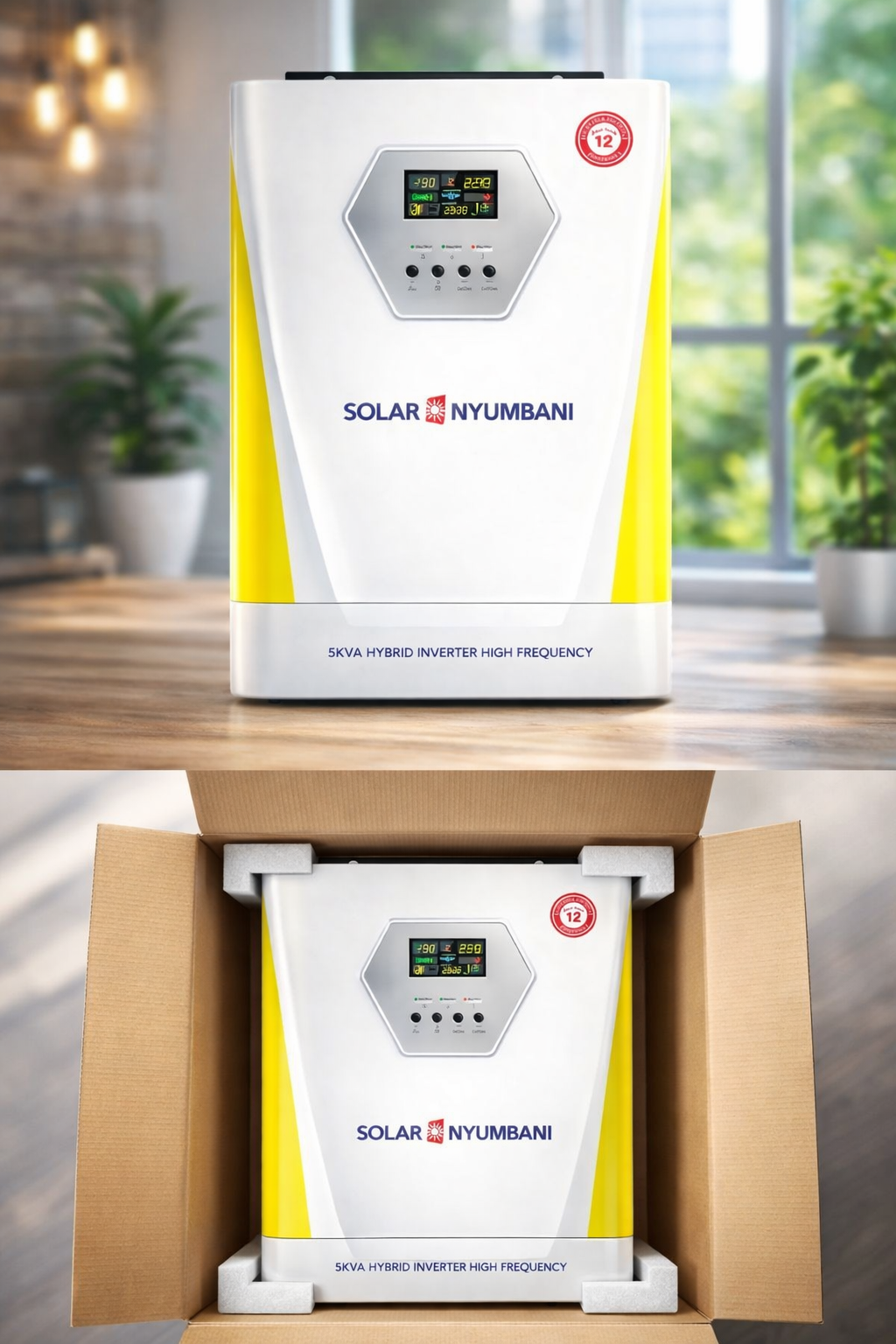

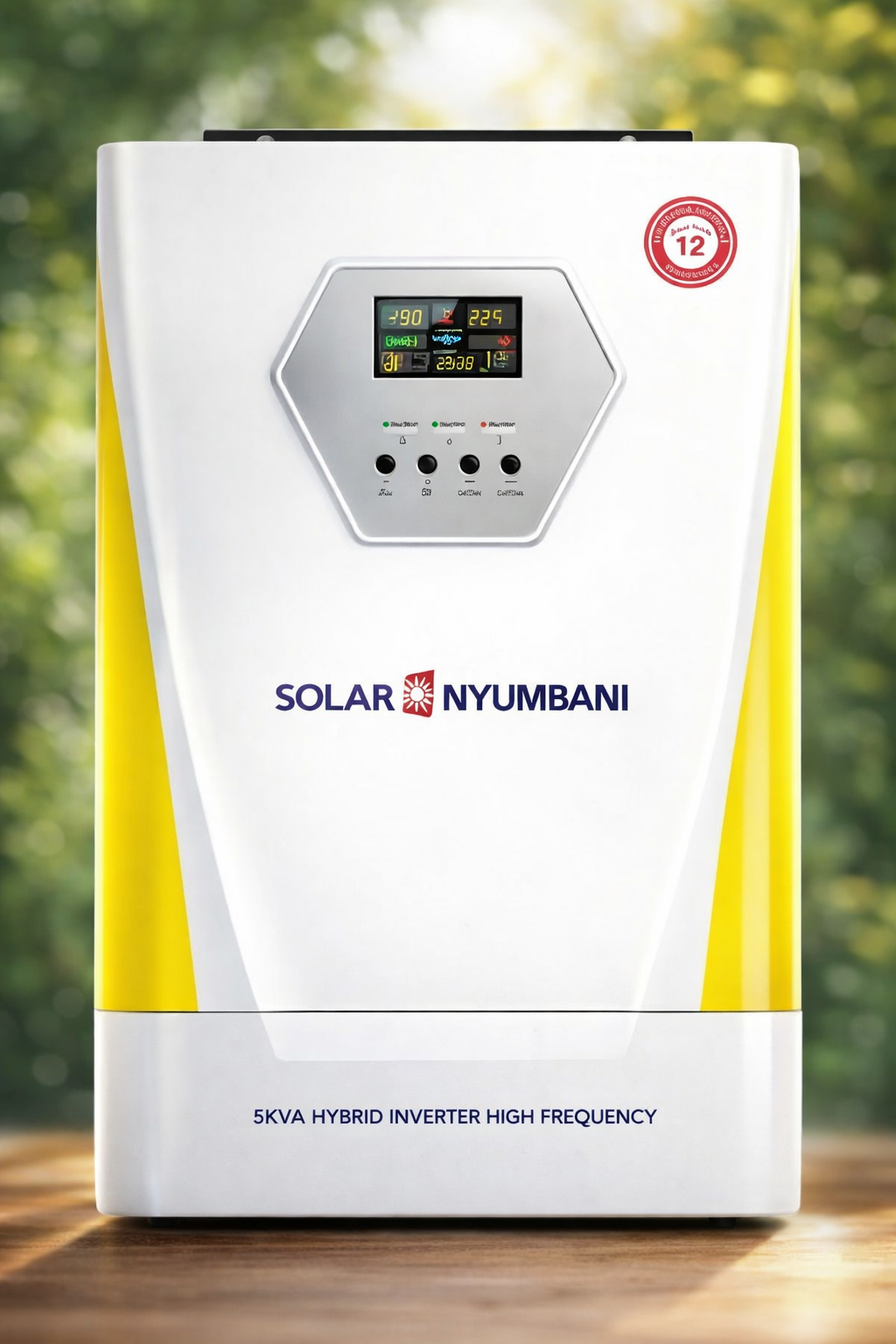

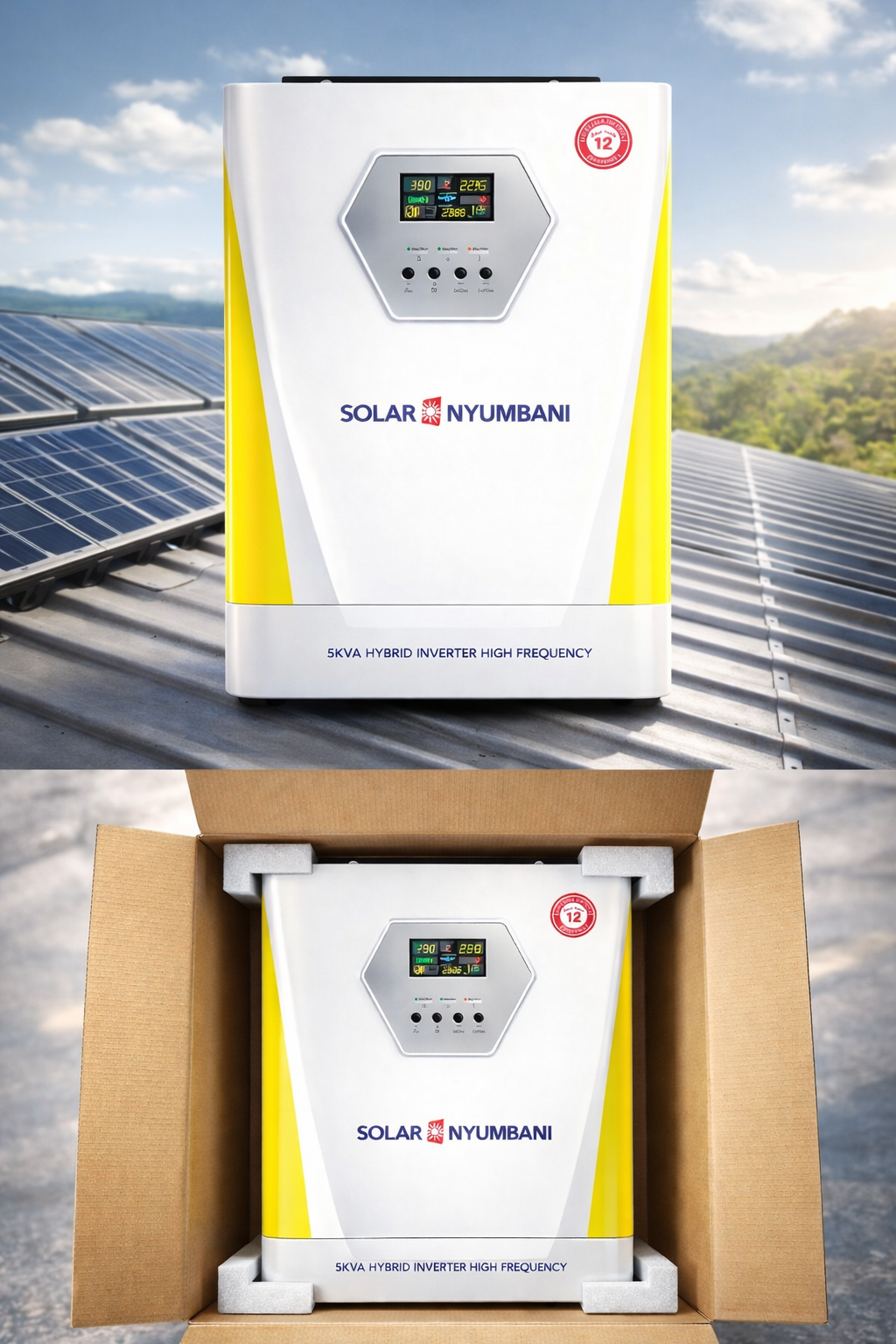

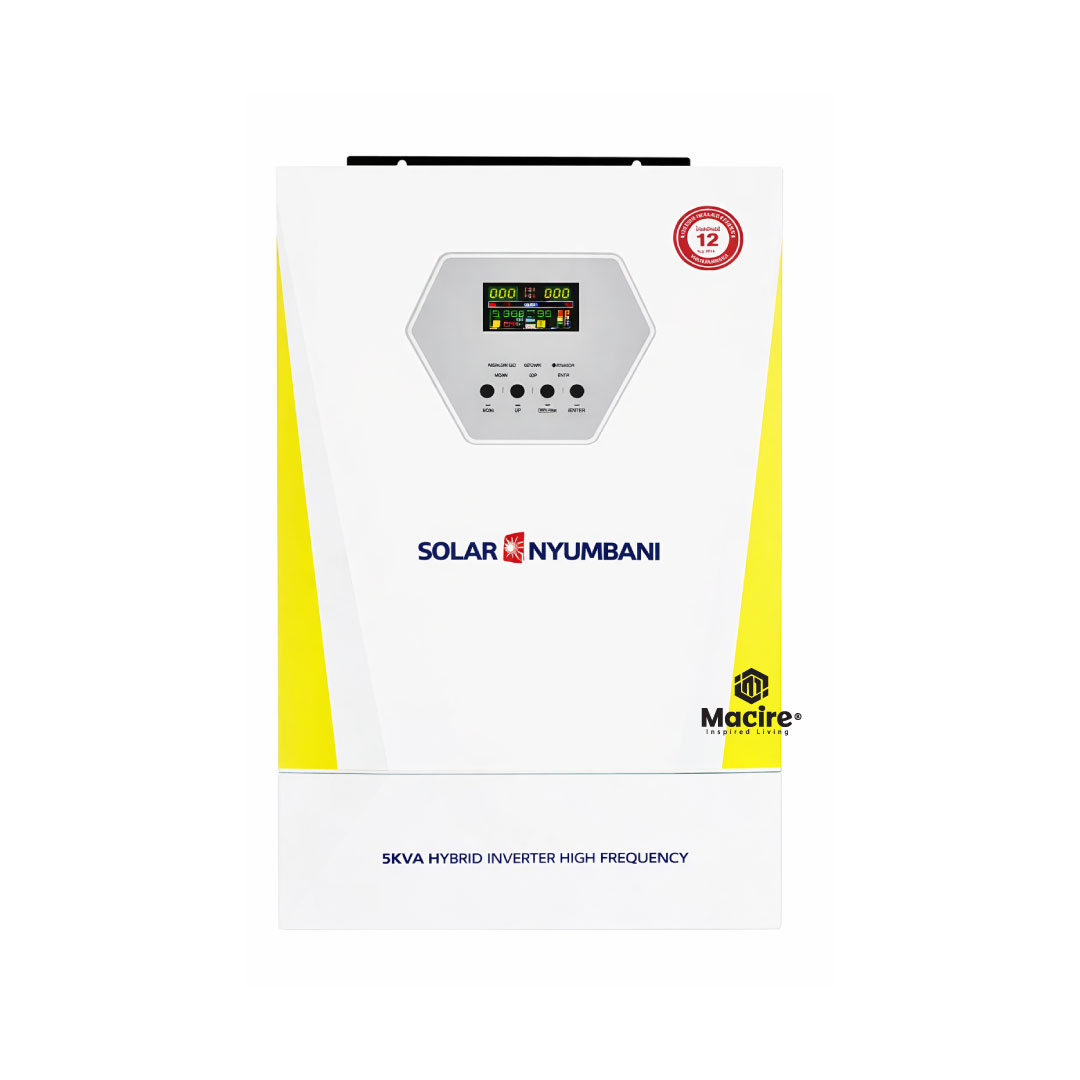

5kW Solar Nyumbani High-Frequency MPPT Solar Inverter

5kW Solar Nyumbani High-Frequency MPPT Solar Inverter – 48V, Pure Sine Wave, Fast Switching

20260131 MACIRE UNIVERSAL PRODU…

 Product Overview (120–160 words)

The Solar Nyumbani 5kW (5000W) High-Frequency MPPT inverter is a compact solar power inverter designed to convert DC power from a 48V battery bank and solar panels into stable 230V AC electricity for daily use. Its high-frequency design delivers a lighter, space-saving build with fast switching, while the integrated MPPT charge controller improves solar harvesting under changing sunlight conditions common in Kenya. This inverter is ideal for powering essential household and small business loads such as lighting, TVs, fridges, routers, computers, and selected tools—especially where outages and voltage fluctuations are frequent.
Macire supports correct sizing (solar array, battery capacity, and protection devices), verifies product authenticity, and provides guidance for safe installation and commissioning. Macire also assists with delivery and after-sales technical support across Kenya.
⭐ Genuine Product | Verified & Supported by Macire

20260131 MACIRE UNIVERSAL PRODU…

4️⃣ System Architecture & Configuration

Core Inverter System

• 5kW pure sine wave AC output for sensitive electronics and motor loads within rating

• High-frequency topology for compact footprint and fast response

MPPT Solar Charging

• Built-in MPPT controller to maximize PV energy conversion

• Supports daytime load supply plus battery charging (system design dependent)

Battery & Charging Interface

• 48V battery system interface (recommended lithium LiFePO₄ or deep-cycle lead-acid)

• Charging behavior and limits should match battery BMS/spec (Macire guidance recommended)

Protection, Cooling & Safety

• Electronic protection against overload, short-circuit, over-temperature, and battery abnormal voltage

• Fan-assisted cooling (installation clearance required)

Monitoring / Controls (Typical)

• Front display for status, PV/AC readings, and fault codes

• Communication options vary by batch/model (USB/RS485/WiFi module where supported)

  20260131 MACIRE UNIVERSAL PRODU…

5️⃣ ???? Technical Specifications Table

(Where exact factory values are not provided, typical industry ranges are shown for a 5kW 48V high-frequency MPPT inverter. Macire confirms final specs per supplied batch.)

20260131 MACIRE UNIVERSAL PRODU…

6️⃣ ???? Key Features (8–12)

• 5kW continuous output for home and small-business essential loads

• High-frequency compact design for easier mounting and reduced space use

• Built-in MPPT charge controller for improved solar energy harvest

• Pure sine wave output—safe for TVs, laptops, routers, and most appliances

• Fast changeover to battery/solar during outages (model dependent)

• Multi-layer electronic protections for safer operation

• Fan-cooled thermal management for longer service life

• Clear status display and fault indication for quick diagnostics

• Configurable charging/priority modes (PV-first, utility-first where supported)

• Compatible with 48V lithium (LiFePO₄) and lead-acid systems when configured correctly

• Macire sizing guidance to reduce nuisance trips and improve uptime

• Macire support for accessories (DC breakers, PV isolators, cables, DB integration)

  20260131 MACIRE UNIVERSAL PRODU…

7️⃣ ???? Applications / Use Cases

• ???? Homes: lighting, TV, WiFi, fridge, sockets for day-to-day needs

• ???? Offices: computers, printers (light duty), networking, lighting

• ???? Clinics: lights, small equipment within rated power (proper sizing required)

• ???? Farms: lighting, small pumps/tools within rating and start-current limits

• ???? Workshops: light tools, charging stations (avoid heavy welders unless specified)

• ???? Light commercial: shops, POS systems, CCTV, refrigeration (load assessment required)

  20260131 MACIRE UNIVERSAL PRODU…

8️⃣ ???? Installation & Engineering Notes

• Install in a dry, ventilated area away from direct heat, dust, and moisture

• Use correct DC cable sizing and tight terminations to prevent overheating

• PV strings must stay within MPPT and max PV voltage limits (critical for safety)

• Always install PV/DC isolators, DC breaker/fuse, and proper earthing

• Battery must have adequate capacity and BMS limits aligned to inverter settings (especially lithium)

• Macire recommends professional installation, commissioning checks, and protection coordination (AC DB + SPD where required)

  20260131 MACIRE UNIVERSAL PRODU…

9️⃣ ???? Care, Maintenance & Operations (6–8)

• Keep ventilation paths clear; maintain recommended wall clearance

• Periodically check cable lugs for tightness (after initial run-in, then quarterly)

• Clean dust filters/vents (where present) to maintain cooling performance

• Monitor battery health (SOC, voltage balance for lithium)

• Avoid continuous operation near maximum load in hot rooms—allow derating margin

• Review fault codes promptly and correct root causes (overload, low battery, PV overvoltage)

• Use surge protection for sensitive electronics and proper earthing practices

• Spares, accessories, and technical guidance available through Macire

  20260131 MACIRE UNIVERSAL PRODU…

???? ⚠️ Do’s & Don’ts

✅ Do’s

• Do size batteries for your real daily energy use (kWh), not just inverter kW

• Do keep PV voltage within inverter limits when designing strings

• Do use correct DC/AC breakers, isolators, and earthing

• Do set charging parameters to match your battery type (especially LiFePO₄)

• Do distribute loads and avoid sudden heavy starts beyond rating

• Do request Macire verification and sizing support before dispatch

❌ Don’ts

• Don’t exceed PV maximum open-circuit voltage (VOC), especially in cool mornings

• Don’t connect undersized cables—this causes heat and failure

• Don’t run heavy welders/large pumps unless confirmed compatible for surge/start current

• Don’t install in sealed cabinets with no airflow

• Don’t mix old and new batteries without assessment

• Don’t bypass protection devices or earthing for “quick fixes”

  20260131 MACIRE UNIVERSAL PRODU…

1️⃣1️⃣ ???? Compatibility

• 48V battery banks: LiFePO₄ (with BMS) or deep-cycle lead-acid (proper capacity)

• PV strings sized to MPPT range and max PV VOC

• AC distribution board integration (MCBs/RCD where applicable)

• Surge protection devices (AC SPD; PV SPD where required)

• Optional monitoring modules (USB/RS485/WiFi where supported)

• Macire-supplied accessories: DC breakers, PV isolators, battery lugs, solar cable, earthing kits (as required)

  20260131 MACIRE UNIVERSAL PRODU…

1️⃣2️⃣ ???? Performance / Runtime Table

Runtime depends on battery size, depth of discharge, inverter efficiency, and load profile. Examples below assume LiFePO₄ usable energy ≈ 90% DoD and ~92% inverter efficiency.

20260131 MACIRE UNIVERSAL PRODU…

Example A: 48V 100Ah Battery (~4.8kWh nominal)

Example B: 48V 200Ah Battery (~9.6kWh nominal)

Performance depends on installation and load sizing as guided by Macire.

20260131 MACIRE UNIVERSAL PRODU…

1️⃣3️⃣ ❓ Mini FAQ (5)

1) Is 5kW enough for my home?
For essentials (lighting, TV, WiFi, fridge, sockets) it is often suitable, but exact fit depends on peak load and motor start currents. Macire can help you size correctly.

2) Can it run a fridge and TV together?
Yes, typically—provided total running watts and start surge stay within limits and battery is adequate.

3) Does it support lithium batteries?
Yes, with correct 48V LiFePO₄ and proper inverter settings aligned to BMS limits.

4) Do you offer installation support?
Macire provides technical guidance, recommended protection devices, and can connect you to installation support depending on location.

5) Do you deliver countrywide in Kenya?
Yes—Macire supports Kenya-wide delivery arrangements based on order location and logistics.

20260131 MACIRE UNIVERSAL PRODU…

1️⃣4️⃣ ???? Why Buy From Macire

• Genuine products only

• Verification before dispatch (model, condition, completeness)

• Guidance on correct system sizing (PV, battery, breakers, cables)

• Kenya-wide delivery support

• Installation advisory and wiring/protection recommendations

• After-sales technical support and troubleshooting

• Access to compatible accessories (isolators, breakers, cables, lugs)

• Support for upgrades and system expansion planning

• Trusted Kenyan supplier with a proven track record
