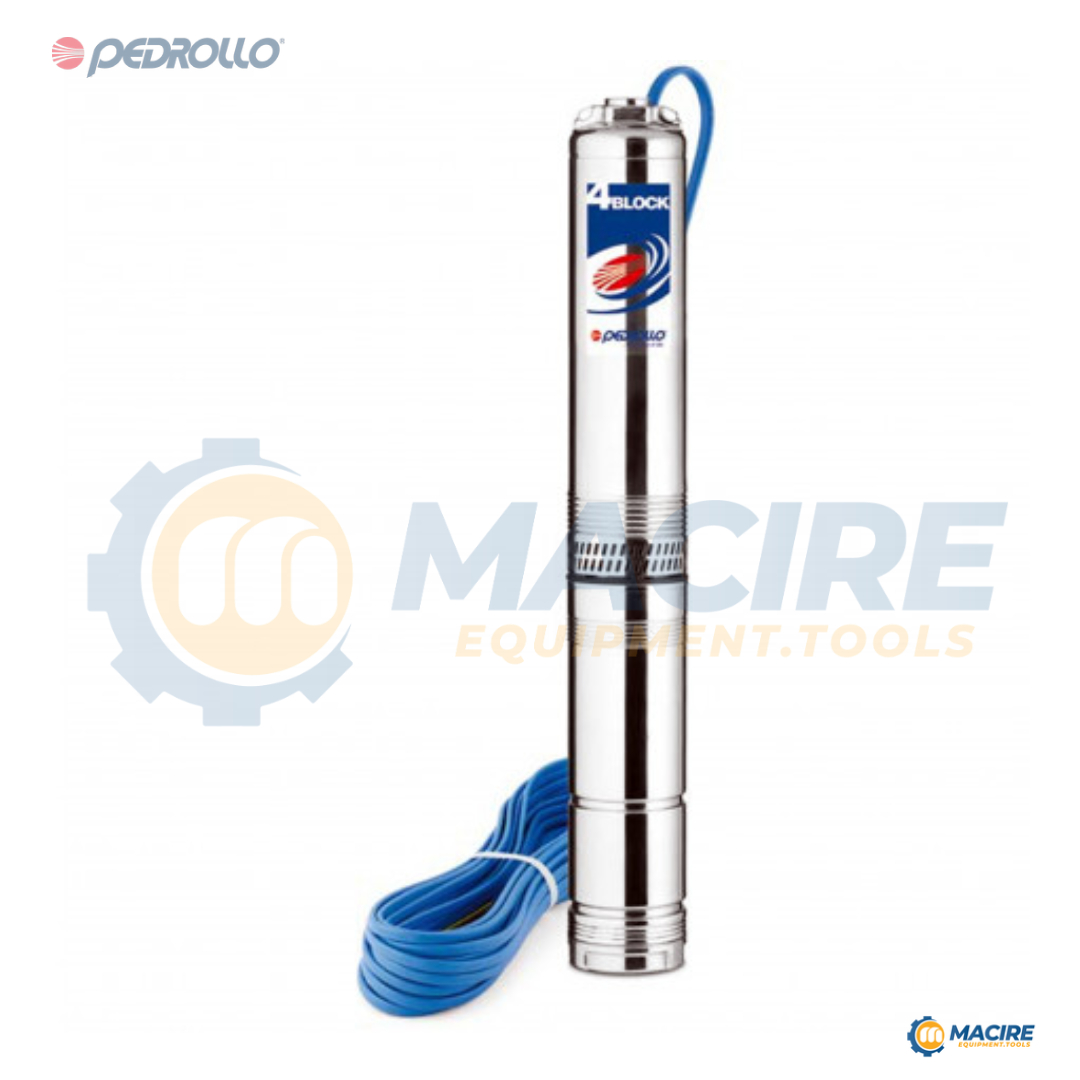

Pedrollo 40m Submersible Pump 4 Block 4/7

Pedrollo 40m Submersible Pump 4BLOCK 4/7 ????????

Features:

• ???? Innovative Design: Combines pump and motor into a compact unit for cost-efficiency.
• ???? High Resistance Components: Technopolymer hydraulic parts allow light silt passage.
• ????️ Built-in Capacitor: No need for a separate control unit.
• ???? Supplied with: 20m drop cable for easy setup.

Applications:

Perfect for small-scale domestic installations, including boreholes and wells, in both vertical and horizontal configurations. ????????

Material:

• ????️ Stainless Steel: All components, except technopolymer impellers and diffusers, are AISI304 grade stainless steel.

Motor Specifications:

• ???? Motor Enclosure Class: IP68
• ⚡ Voltage: 1 X 220/240V
• ???? Insulation Class: F
• ⚙️ Speed: 2900rpm

Operating Conditions:

• ???? Pumped Liquid: Thin, clean, chemically non-aggressive liquids with max sand content of 150gm/m³
• ???? Maximum Fluid Temperature: +30°C
• ???? Maximum Suction Lift: 7m (at sea level)
• ???? Maximum Immersion Depth: 40m
• ????️ Minimum Borehole Diameter: 110mm

Pump Information:

• ???? Model: 4BLOCKm 4/7
• ???? Power:
  • Horsepower (HP): 0.75
  • Kilowatts (kW): 0.55
• ???? Maximum Operating Current (A): 4.3
• ???? Dimensions:
  • Height (H): 663mm
  • Width (W): 100mm
  • DN: 1 1/4″
• ⚖️ Weight: 10kg

Reliable, efficient, and easy to install—ideal for your domestic water pumping needs! ????????
