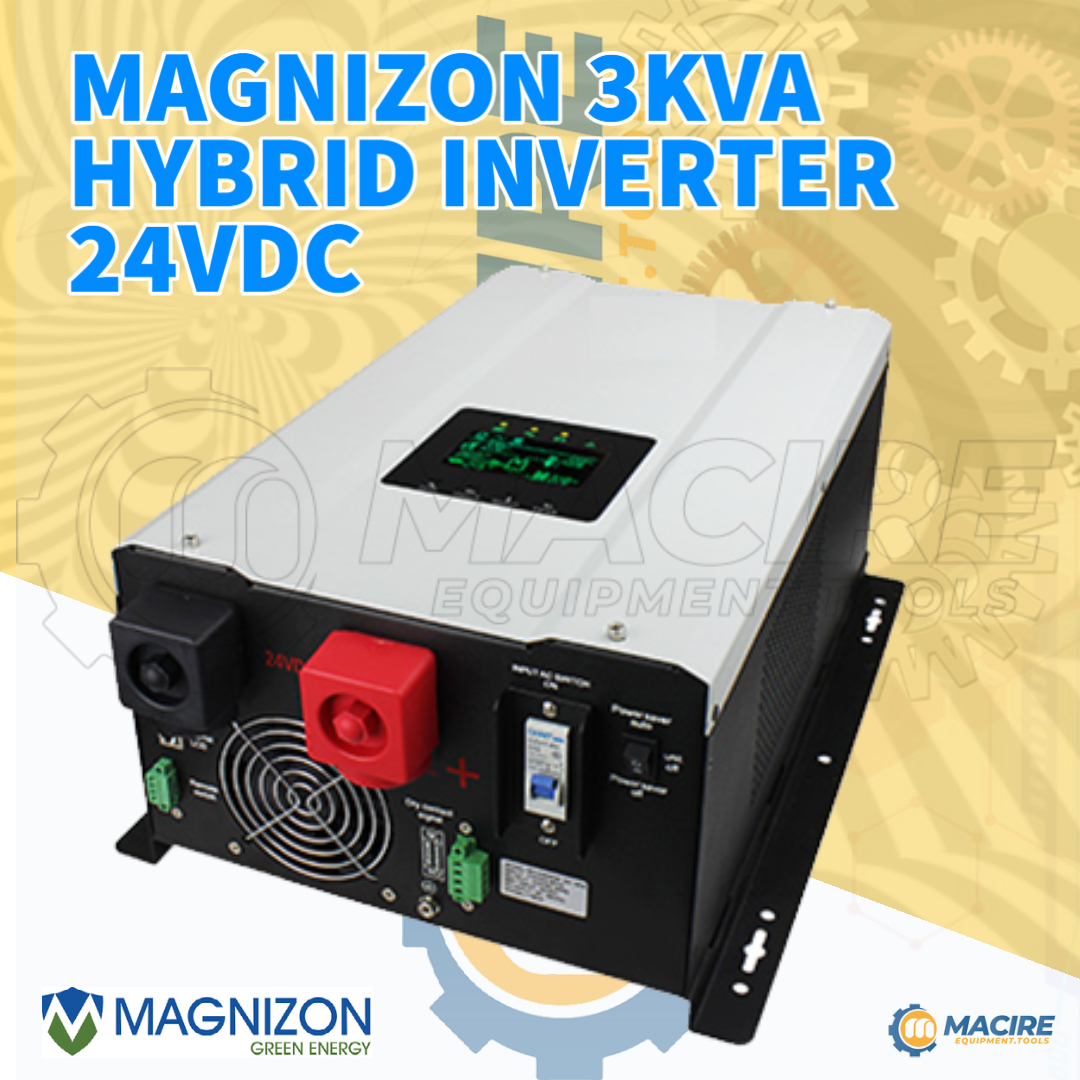

Magnizon 3Kva Hybrid Inverter 24vdc HG3024SW-LCD

Overview

Magnizon’s HG series 3KVA /24V DC operated Smart DC-to-AC inverter with auto line-to-battery transfer and integrated Battery charge, serving as an extended run UPS, a standalone power source or an automotive inverter. HG series Smart inverter supplies power from AC power and DC source. When AC cable is connected to a wall socket, utility power goes to connected equipment(s) and/or charges the battery set via charging system. In battery mode, Smart inverter automatically converts battery energy into AC power for backing up the connected devices. Large LCD displays real time information along with operational schemes, and can also display error codes for easy repair and maintenance. Reliable transformer less IGBT based design and frequency controlled pure sine wave output power, very much compatible to all domestic loads: refrigerators, TV’s, Computers, and power tool and battery chargers. Smart micro controller based 3-stage built in charging system properly charge and maintain battery bank.

Applications

• Versatile inverter/charger with pure sine wave system with seamless transfer switching serves as an automotive inverter for RVs, trucks, standalone alternative power source with high end back up times with various battery technologies (VRLA, GEL, Deep cycle, Ni-Cd and many more)
• Off-grid and On-grid applications using external MPPT smart controllers
• Home and small office applications
• Remote closets and small computer room applications.
• Petrochemical application
• Critical applications where ever higher reliability is needed
• SMB requirements
• Remote closets and small computer room applications.

Key Features

• 24V DC or 220/230/240V AC input; 220/230/240V, 50 /60Hz Pure sine ware output
• 3000VA continuous output with double boost capacity
• Microprocessor controlled Smart volume design
• Built in 10~20A Smart Utility based battery charger
• Automatic line-to-battery switchover
• High efficient DC-to-AC conversion, minimizing energy loss
• Rack design & wall-mounted design for flexible installation
• Intelligent 3-stage charger control for efficient charging and preventing overcharge of battery
• Auto restart while AC recovery
• User-friendly LCD+LED indications
• Multiple protection: low battery alarm, low battery shutdown, over
• charged protection, overload protection, over temperature protection, short circuit protection
• With the environmental temperature control charge management
• Quiet, high efficiency operation, high surge capacity and low idle current
• CE Safety
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload, over temperature and battery deep discharge protection
