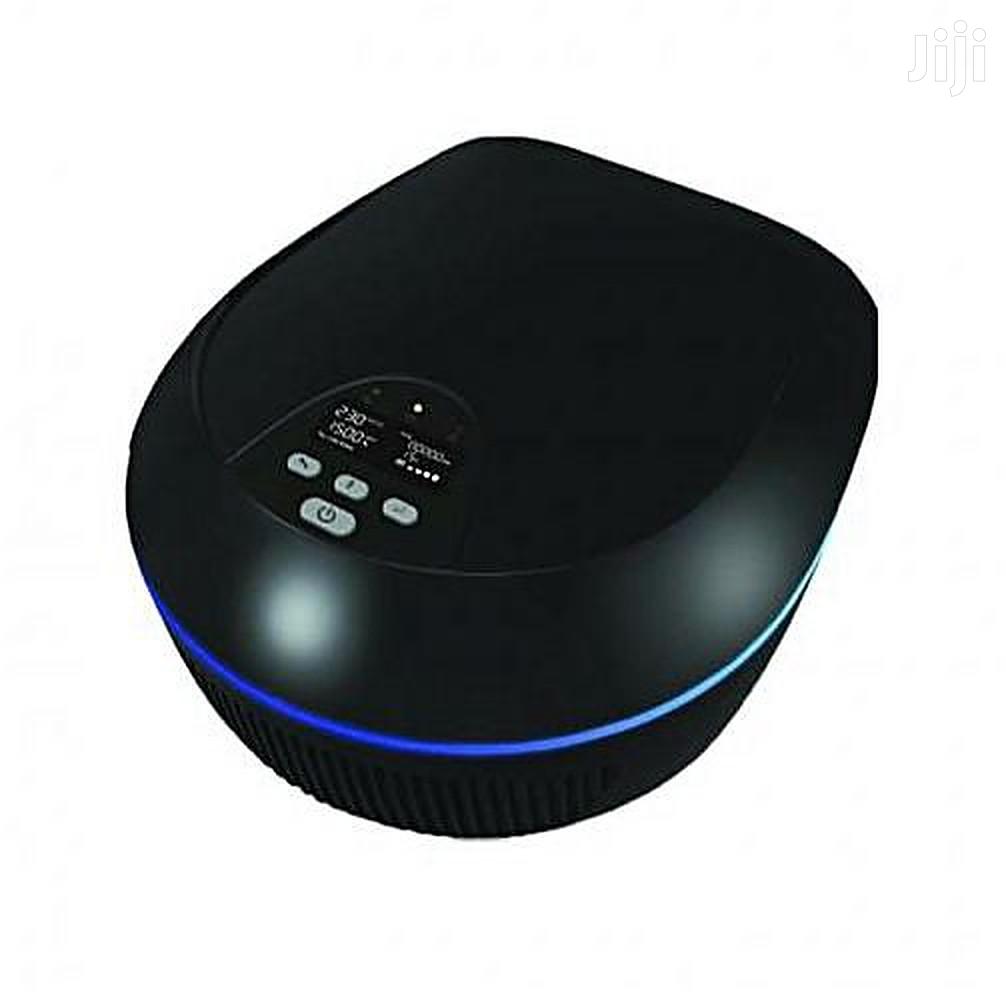

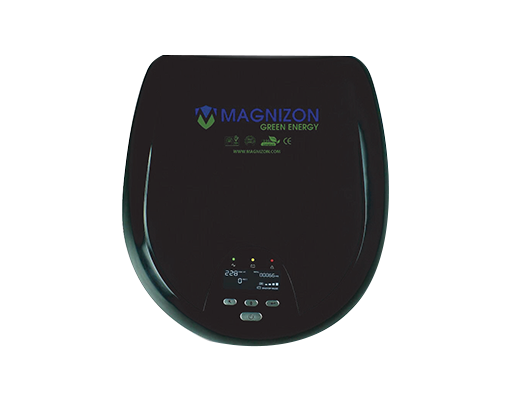

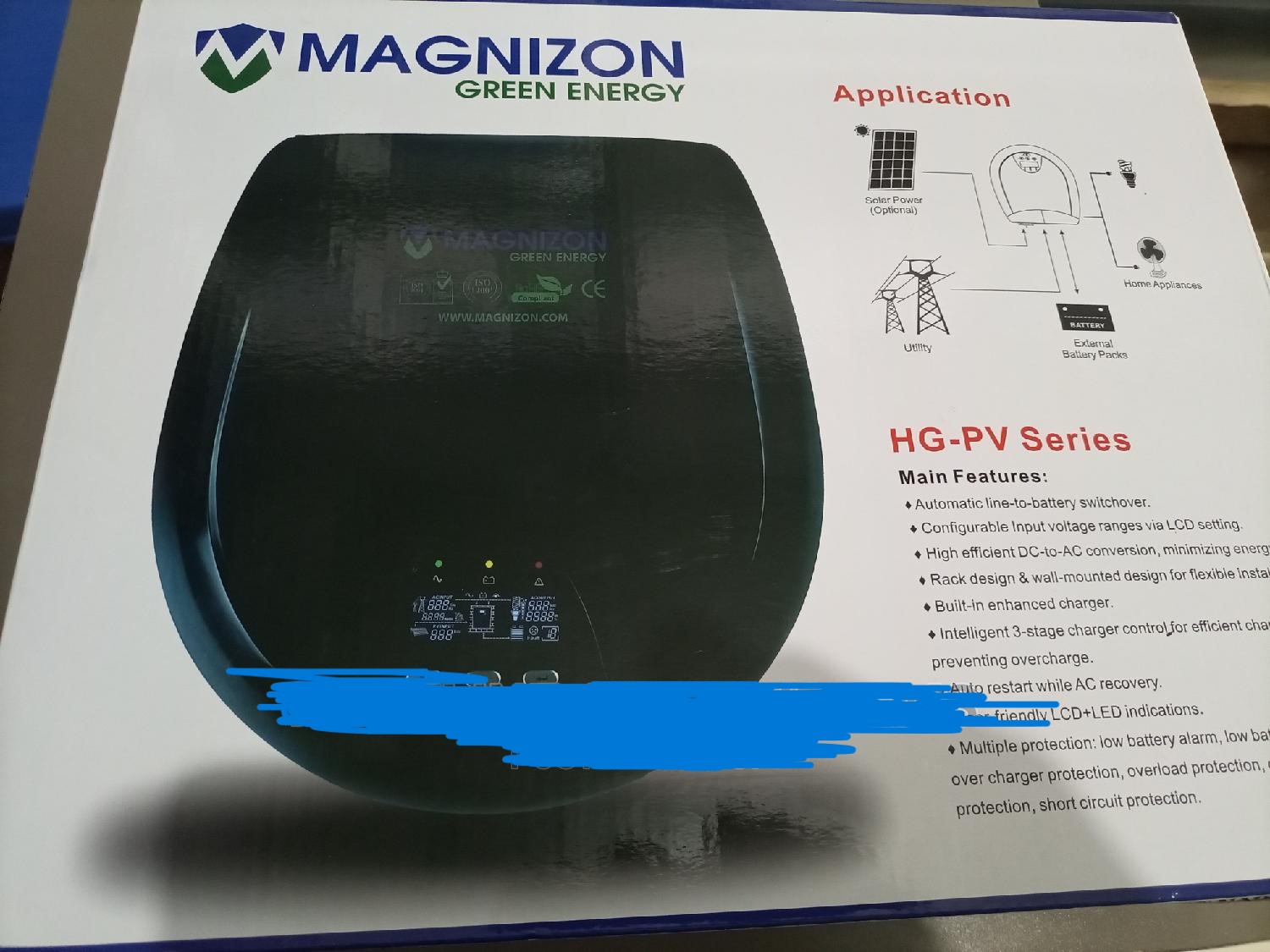

Magnizon 1Kva Hybrid Inverter 12vdc HG1012-PV

Overview

Magnizon HG1012-PV is a Smart DC-to-AC inverter with auto line-to-battery transfer and integrated Solar charge controller and AC-DC caring system (Dual charging system), serving as an extended run UPS, a standalone power source or an automotive inverter(Completely Hybrid and automatic operation). HG1012-PV Smart Hybrid inverter supplies power from AC power and DC source. When AC cable is connected to a wall socket, utility power goes to connected equipment(s) and/or charges the battery set via charging system. In battery mode, Smart Hybrid inverter automatically converts battery energy into AC power for backing up the connected devices. Large LCD displays real time information along with operational schemes, and can also display error codes for easy repair and maintenance. Day time will be supported through solar panels and night time or rainy days will be with batteries and Utility power with intelligent microprocessor based automatic switching. Reliable transformer less IGBT based design and frequency controlled power, very much compatible to all domestic loads: refrigerators, TV’s, Computers, and power tool and battery chargers. Smart micro controller based 3-stage built in charging system properly charge and maintain battery bank in the obscene of solar power or rainy days.

Applications

• Well designed for hybrid applications where solar energy systems connected along with grid or generator sets.
• Versatile inverter/charger with Sine wave system with seamless transfer switching serves as an automotive inverter for RVs, trucks, standalone alternative power source with high end back up times with various battery technologies(VRLA, GEL, Deep cycle and many more)
• Perfectly suitable for Off-grid and Hybrid applications.
• Small PV plants for houses/villas and small offices.
• Remote closets and small computer room applications.

Key Features

• 12V DC or 230V AC input; 230V, 50 Hz output
• 1KVA continuous output with double boost capacity.
• Microprocessor controlled Smart volume design
• Built in 40A Smart solar charge controller & Utility based charger
• Duel Operational Mode UPS/ Solar Inverter Mode
• Robust design for Hybrid configuration
• Sine wave output
• Automatic line-to-battery switchover
• Configurable Input voltage ranges via LCD setting
• High efficient DC-to-AC conversion, minimizing energy loss
• Rack design & wall-mounted design for flexible installation
• Intelligent 3-stage charger control for efficient charging and preventing overcharge of battery
• Auto restart while AC recovery
• User-friendly LCD+LED indications
• Multiple protection: low battery alarm, low battery shutdown, over
• charged protection, overload protection, over temperature protection, short circuit protection
• With the environmental temperature control charge management
• Quiet, high efficiency operation, high surge capacity and low idle current
• CE Safety
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload, over temperature and battery deep discharge protection
• Smart charging system optimizes battery performance
• Cold start function
