Applications:
• Paddy fields irrigation
• Water irrigation with sprinkle systems
• Gardening / Orchard cultivation
• Pumping water from wells
• Filling water reservoirs
• Filling or draining water from ponds
• Filling or draining water from fish farms
• Washing of livestock, barns or agricultural equipment
• Pumping water with solid particles up to 3 mm
Performance Curve:
Documentation:
* This link leads to the parts list of the SEV-80X-BAC model. If the full designation of your pump model differs from that, please ask us about the correct parts list

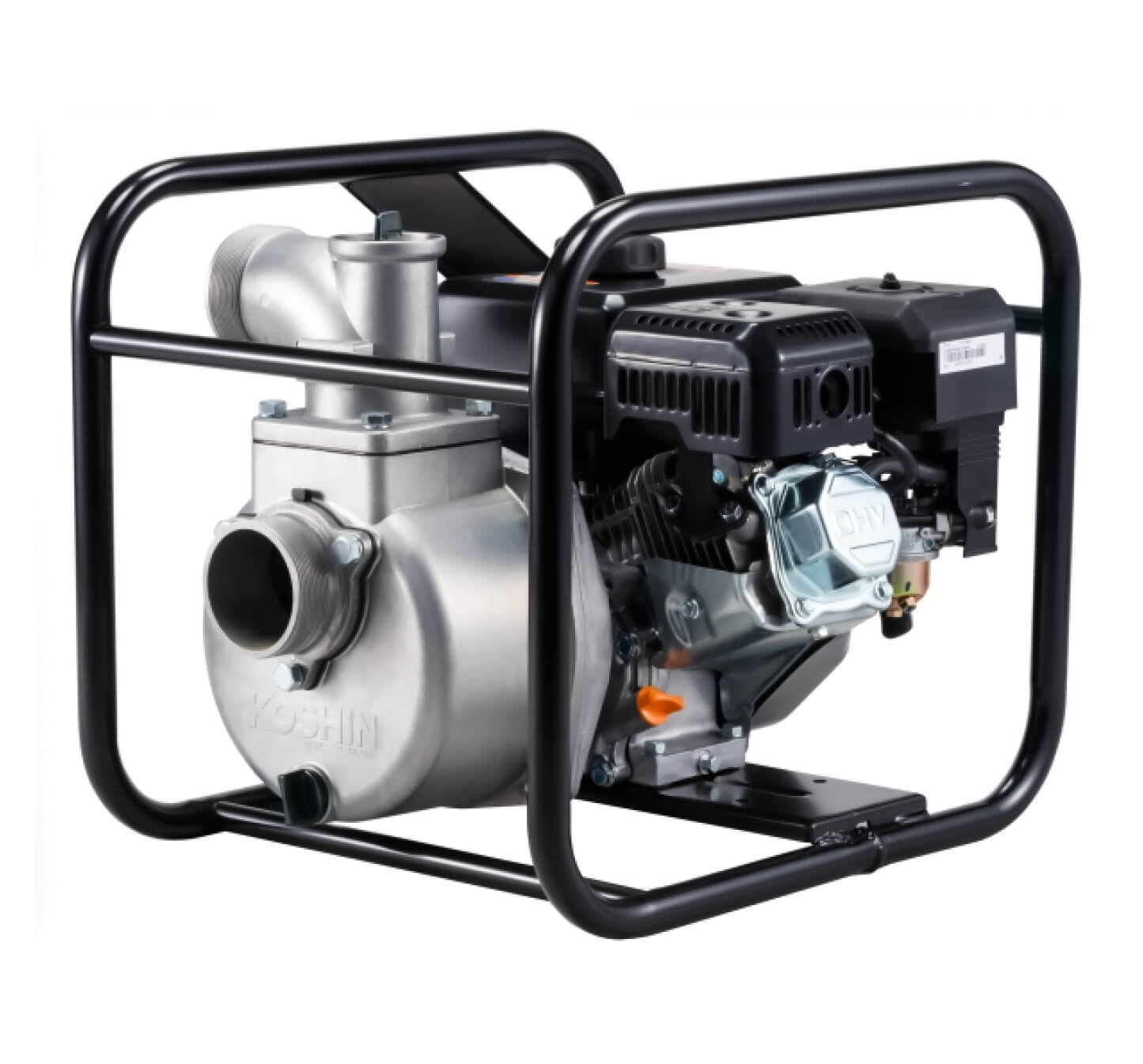

Technical Information:
| MODEL | SEV-80X |
|---|---|
| Connection Dia | 80 mm (3“) |
| Connection Thread | Outer Pipe Thread BSP or NPT |
| Total Head | 27 m |
| Delivery Volume | 1050 L/min |
| Max. Suction Lift | 8 m |
| Grain size | Max. 3 mm |
| Motortype | Forced Air-cooled 4-stroke Gasoline |
| Motor | Koshin K180 |
| Cubic Capacity | 179 ccm |
| Rated Output | 3.1 kW (4.2 PS) / 3600 rpm |
| Max. Output | 3.5 kW (4.8 PS) / 3600 rpm |
| Fuel | Automotive Unleaded Gasoline |
| Fuel Tank Capacity | 3.6 L |
| Continuous Operating Time | Approx. 2.4 hrs. |
| Starting Method | Recoil Starter |
| Standard Accessories | 1 Strainer, 2 Hose Couplings, 3 Hose Bands, 1 Engine Tool Set |
| Net Weight | 28.7 kg |
| Gross Weight | 30.7 kg |
| Dimensions L×W×H (cm) | 54.3 × 42.5 × 46 |
