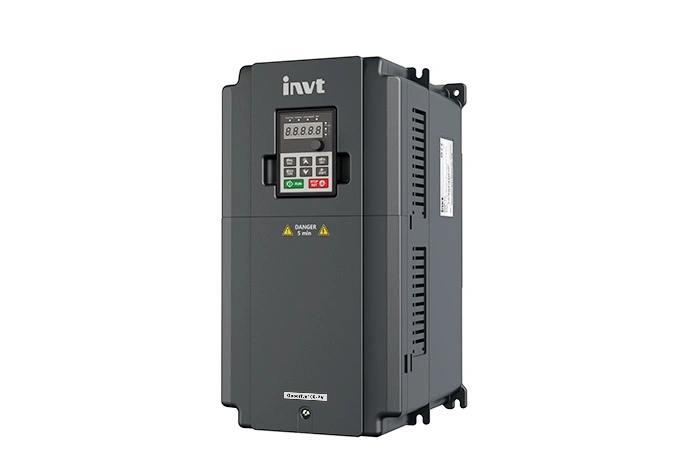

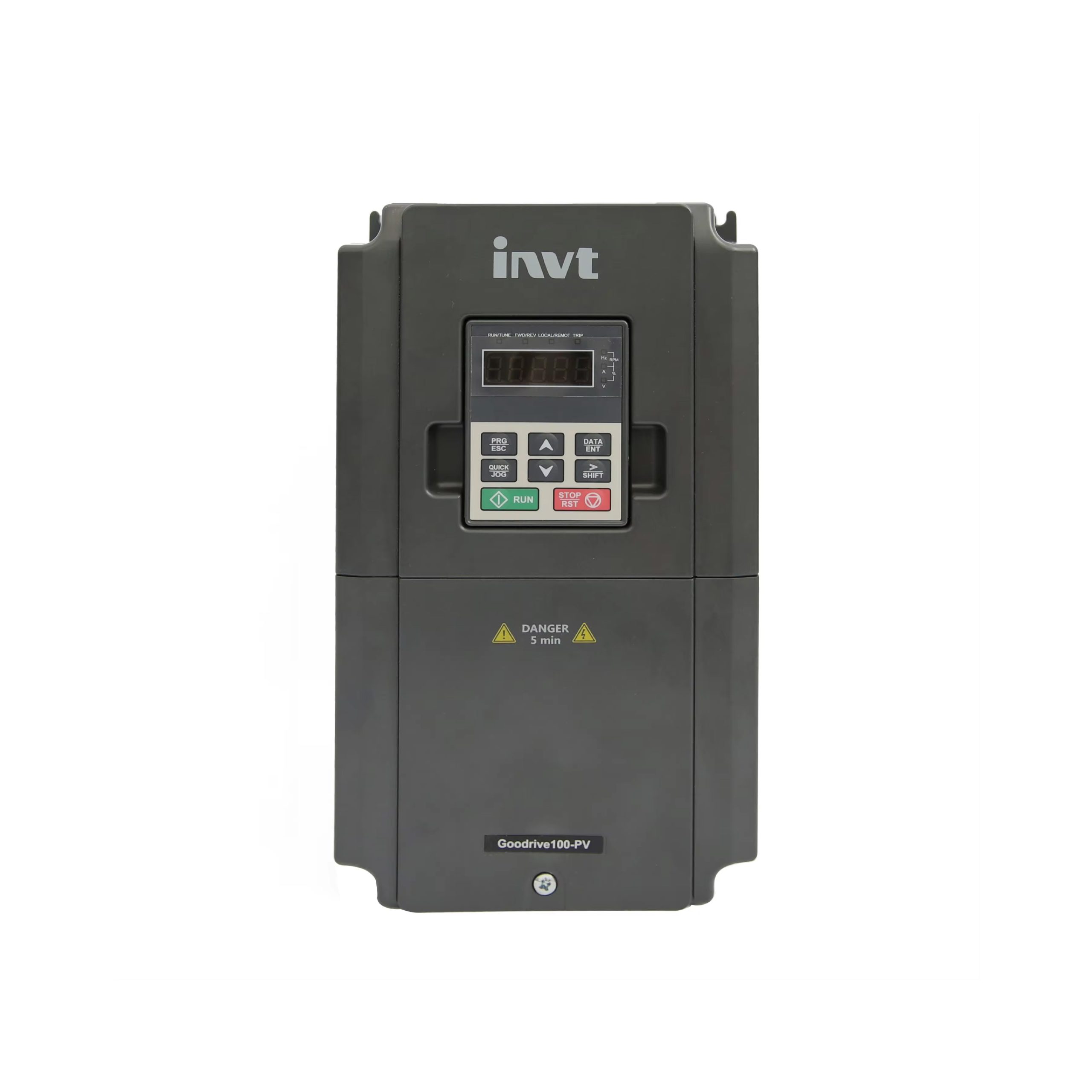

7.5kw 3phase Invt Solar Water Pump Inverter

7.5 kW 3-Phase INVT Solar Water Pump Inverter ????????

Technical Specification ????

• Manufacturer: INVT ????️
• Series: GD 35 ????
• Model: GD35-7R5G-4 ????️
• Application: General purpose ⚙️
• Capacity: 7.5 kW ⚡
• Current: 18.5 A ????
• Main Power Supply: 400 V ⚡
• Phase: 3 ⚡
• Output Frequency: 0-400 Hz ????
• Enclosure: IP20 ????️
• Overload Capacity: 150% for 1 minute ????
• EMC Filter: Yes ✅
• Braking Unit: Yes ✅
• Analog Input: 2 ????
• Digital Input: 9 ????
• Analog Output: 2 ????
• Digital Output: 2 ????
• Relay Output: 2 ????
• RS485 (Modbus RTU): Modbus (optional Profibus, CANopen, and Ethernet) ????
• PID: PID control ????️
• V/f Control Mode: Yes ✅
• Vector Control with Feedback: Yes ✅
• Operation Temperature: -10°C to +50°C ????️

Features and Benefits ????

• High Efficiency: Optimal for solar energy utilization ????
• Robust Performance: Operates efficiently across a wide voltage and temperature range ????️
• EMC Filter: Built-in to reduce electromagnetic interference ⚡
• PID Control: Ensures efficient and stable water pumping ????
• Comprehensive Inputs/Outputs: Multiple analog and digital inputs/outputs for flexible operation ????
• Advanced Communication: Supports multiple communication protocols for seamless integration ????

Applications ????????

• Agriculture: Ideal for irrigation and water supply in farms ????
• Industrial Use: Suitable for various industrial water pumping applications ????
• Remote Areas: Perfect for off-grid locations with reliable solar energy availability ????️

Additional Information ????

• Brand: INVT ????️
• Warranty: Check with the manufacturer or supplier for warranty details ????️
• Maintenance: Regular maintenance recommended for optimal performance ????️

The 7.5 kW 3-Phase INVT Solar Water Pump Inverter is designed to provide efficient and reliable water pumping solutions using solar energy. It is perfect for a wide range of applications, ensuring sustainable and cost-effective operations. ????????⚡
