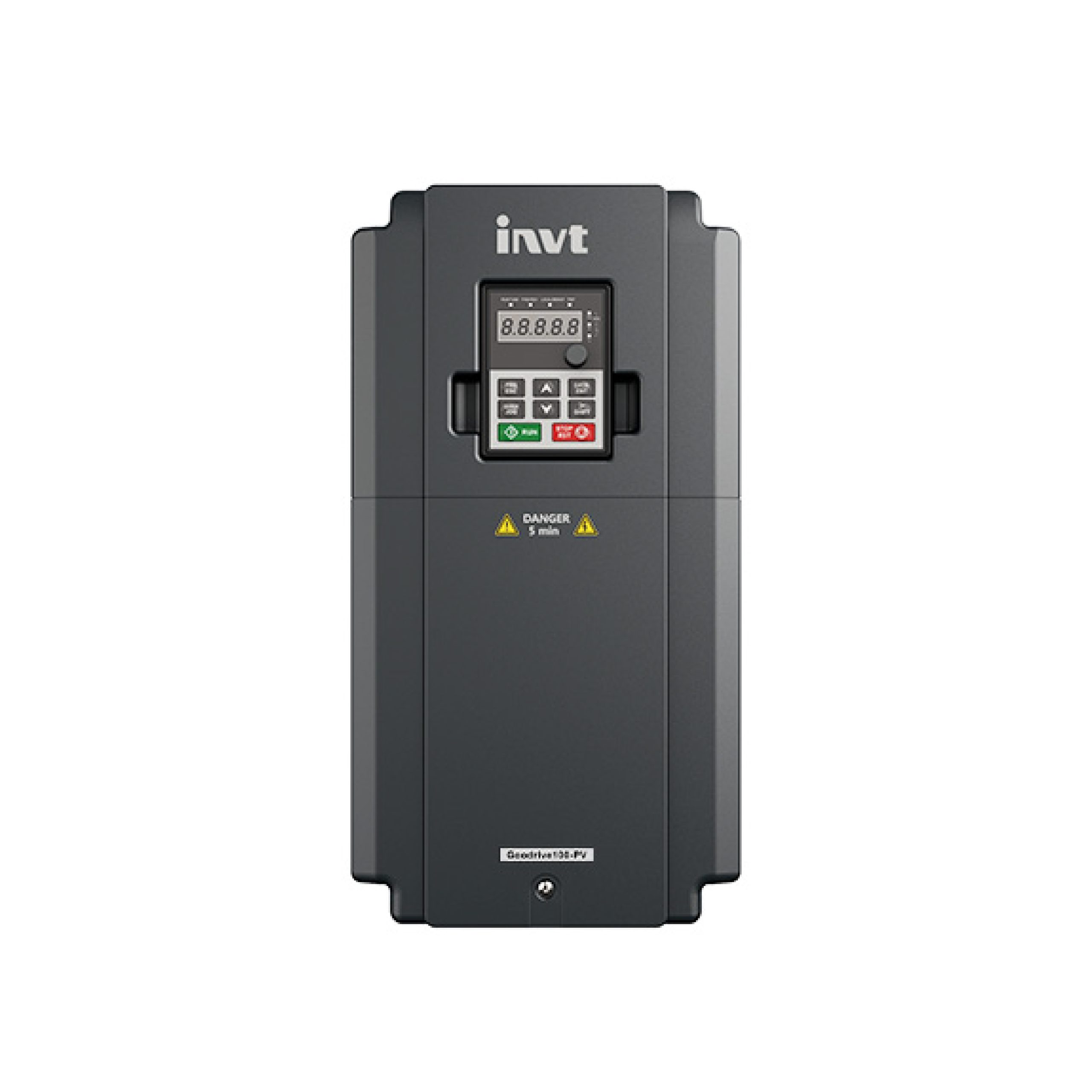

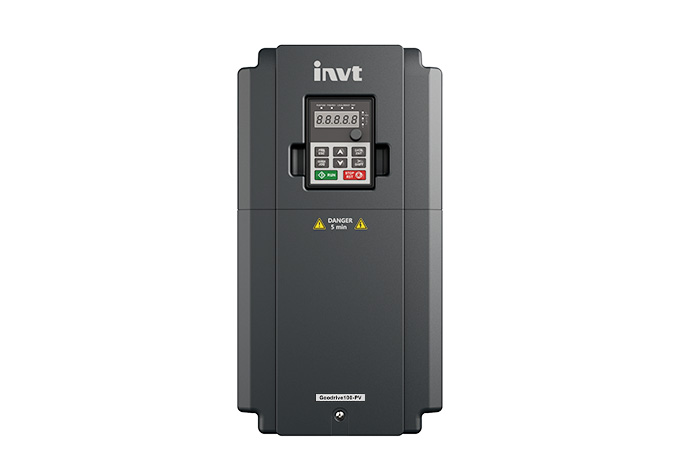

2.2kW Single Phase INVT Solar Water Pump Inverter ????????

Technical Specifications ????️

Manufacturer: INVT ????
Series: GD 10 ????
Model: GD10-2R2G-S2-B ????
Application: Pumps / Fans / General Purpose ????
Capacity: 2.2 kW ⚡
Current: 11 A ????
Main Power Supply: 220 V ????
Phase: Single-phase ⚡
Output Frequency: 0-400 Hz ????
Enclosure: IP20 ????
Overload Capacity: 150% per 1 min ⏱️
Acceleration Time: 0-3600 sec ????
Deceleration Time: 0-3600 sec ????
EMC Filter: Yes ????
Braking Unit: Yes ????
Analog Input: 1 ????️
Digital Input: 5/1 ????
Analog Output: 1 ????
Digital Output: 1 ????
Relay Output: 1 ⚙️
RS485 (Modbus RTU): Yes ????
PID: PID Controller ➕
V/f Control Mode: Yes ⚙️
Vector Control with Feedback: No ❌
Sensorless Vector Control: No ❌
Operation Temperature: -10°C to +40°C ????️
Storage Temperature: -30°C to +60°C ????
Dimensions (W x H x D): 100 x 165 x 153.2 mm ????

Features and Benefits ????

High Efficiency: Optimized for solar water pumping applications, ensuring high efficiency and energy savings ????????
Robust Design: IP20 enclosure and high-quality components ensure durability and long life ????
Advanced Control: Built-in PID control for precise water flow management ????
Versatile Connectivity: Multiple analog and digital I/O options for flexible integration ????
Enhanced Protection: Overload capacity of 150% per 1 minute for reliable operation under varying loads ????️
User-Friendly: Easy installation and setup with comprehensive documentation and support ????

Applications ????????

Agricultural Irrigation: Efficient water supply for crops ????
Water Supply Systems: Reliable water pumping for residential and commercial use ????????
Fountains and Water Features: Smooth and energy-efficient operation of decorative water installations ⛲
Industrial Water Transfer: Suitable for various industrial applications requiring high water flow ????

The 2.2kW Single Phase INVT Solar Water Pump Inverter offers a powerful and efficient solution for solar water pumping, ensuring reliable performance across diverse applications. ????????⚡
