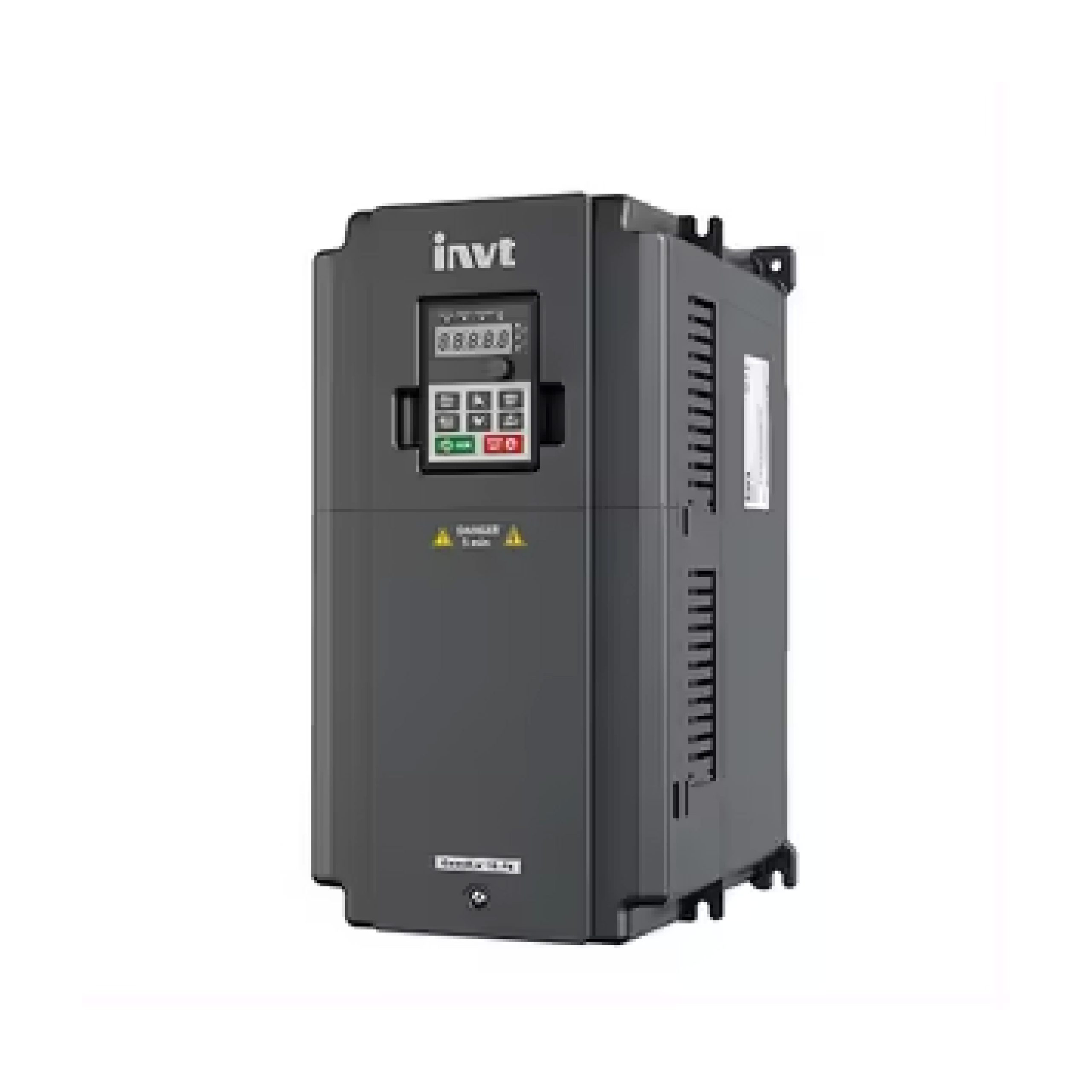

2.2kW 3-Phase INVT Solar Water Pump Inverter

2.2kW 3-Phase INVT Solar Water Pump Inverter ????????

Product Specification ????️

• Model: GD100-2R2G-4-PV ????
• Rated Output: 2.2 kW ⚡
• Rated Input Current: 5.8 A ????
• Rated Output Current: 5.5 A ????
• AC Input Voltage: 380 V (-15%) ~ 440 V (+10%) – Three Phase ⚡????
• Maximum Input DC Voltage: 800 V ????????
• Starting Voltage: 300 V ????
• Minimum Operating Voltage: 250 V ⚡????
• Recommended DC Input Voltage Range: 300 V ~ 750 V ????
• Recommended MPP Voltage: 550 V ????
• Rated Output Voltage: 3 Phase – 380 V ????⚡
• Output Frequency Range: 0 ~ 400 Hz ????
• MPPT Efficiency: 99% ????
• Installation Mode: Support wall-type, rail-type, and flange-type installation ????️
• Ambient Temperature: -10℃~＋50℃, de-rate by 2% per every additional 1℃ if the temp is above ????️❄️????
• Elevation: Below 1000m; de-rate by 1% per every additional 100m if the elevation is above ????????
• Cooling Mode: Air cooling ❄️

Features and Benefits ????

• High Efficiency: Optimized for solar water pumping applications with 99% MPPT efficiency ????????????
• Robust Design: Supports various installation modes for flexible setup options ????️????
• Advanced Control: Precise voltage and frequency control for efficient water flow management ????
• Versatile Connectivity: Suitable for both AC and DC inputs, allowing for hybrid setups ????????
• Enhanced Protection: Designed to operate under wide temperature and elevation ranges, ensuring reliability in diverse environments ????️????️
• User-Friendly: Easy installation and comprehensive support for seamless integration ????

Applications ????????

• Agricultural Irrigation: Efficient water supply for crops ????
• Water Supply Systems: Reliable water pumping for residential and commercial use ????????
• Fountains and Water Features: Smooth and energy-efficient operation of decorative water installations ⛲
• Industrial Water Transfer: Suitable for various industrial applications requiring high water flow ????

The 2.2kW 3-Phase INVT Solar Water Pump Inverter is designed for high efficiency and reliable performance in solar water pumping applications, providing a robust and versatile solution for various needs. ????????⚡
