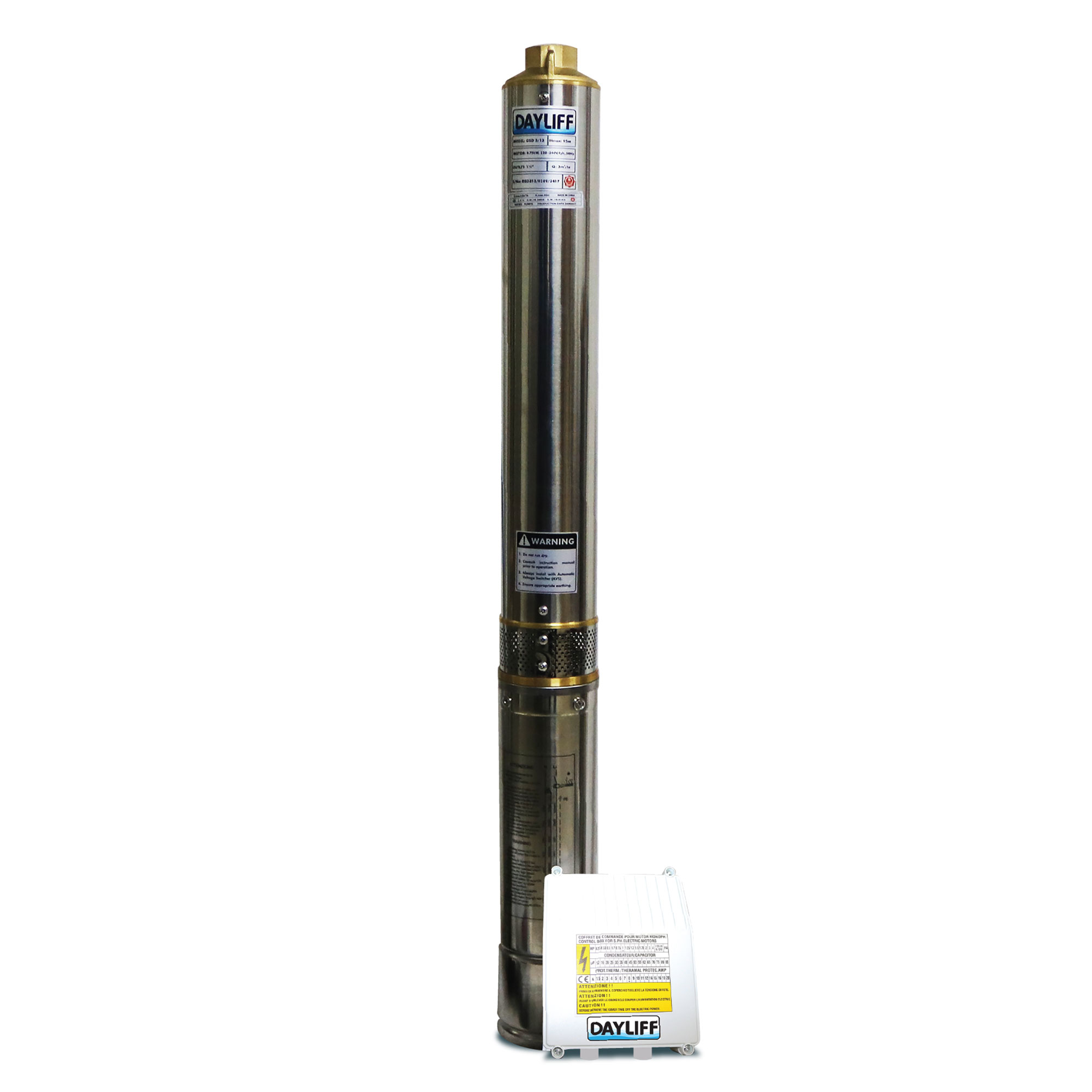

Dayliff DSD range of Submersible Multistage centrifugal pumps are specially designed for domestic and small scale water supply from wells and boreholes. Material of construction include plastic impellers and diffusers, cast iron delivery and suction chambers and AISI 304 stainless steel pump housing, shaft and shaft coupling. These quality materials together with the plastic impellers provide the pumps with excellent sand handling capabilities for a longer life. The pumps are also supplied complete with 30m cable.

Motor

The pump is coupled to a sealed liquid cooled 2-pole asynchronous squirrel-cage motor constructed of stainless steel. Motors are supplied complete with purpose designed control boxes that include the capacitor and electrical overload protection.

A DAYLIFF electronic Pump Controller is recommended for comprehensive pump control including wireless low level, motor overload and irregular power supply protection.

Motor
Enclosure Class	IP68
Voltage	1 X 240V
Insulation Class	B
Speed	2850rpm
Operating Conditions
Pumped Liquid	Thin, clean, chemically non-aggressive liquids with a max. sand content of 0.25%
Maximum Fluid Temperature	+35C
Maximum Ambient Temperature	+35C
Maximum immersion depth	80M
Minimum borehole diameter	110mm
Dimensions & Weights
DN(“)	1.25
Pump Information
Istat / I	6.2
Model	DSD 3/13
Power (kW)	0.75
Maximum Operating Current (A)	6.2
Weight (kg)	9
