0.6hp 0.48Kw Dayliff DB 2-30 Super Silent Booster Pump
KSh40,399.00KSh98,670.00 (-59%)

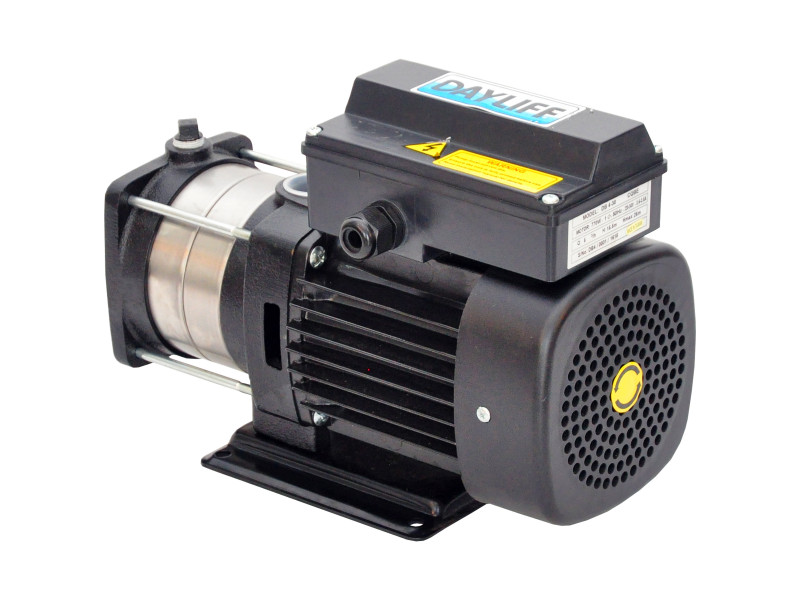

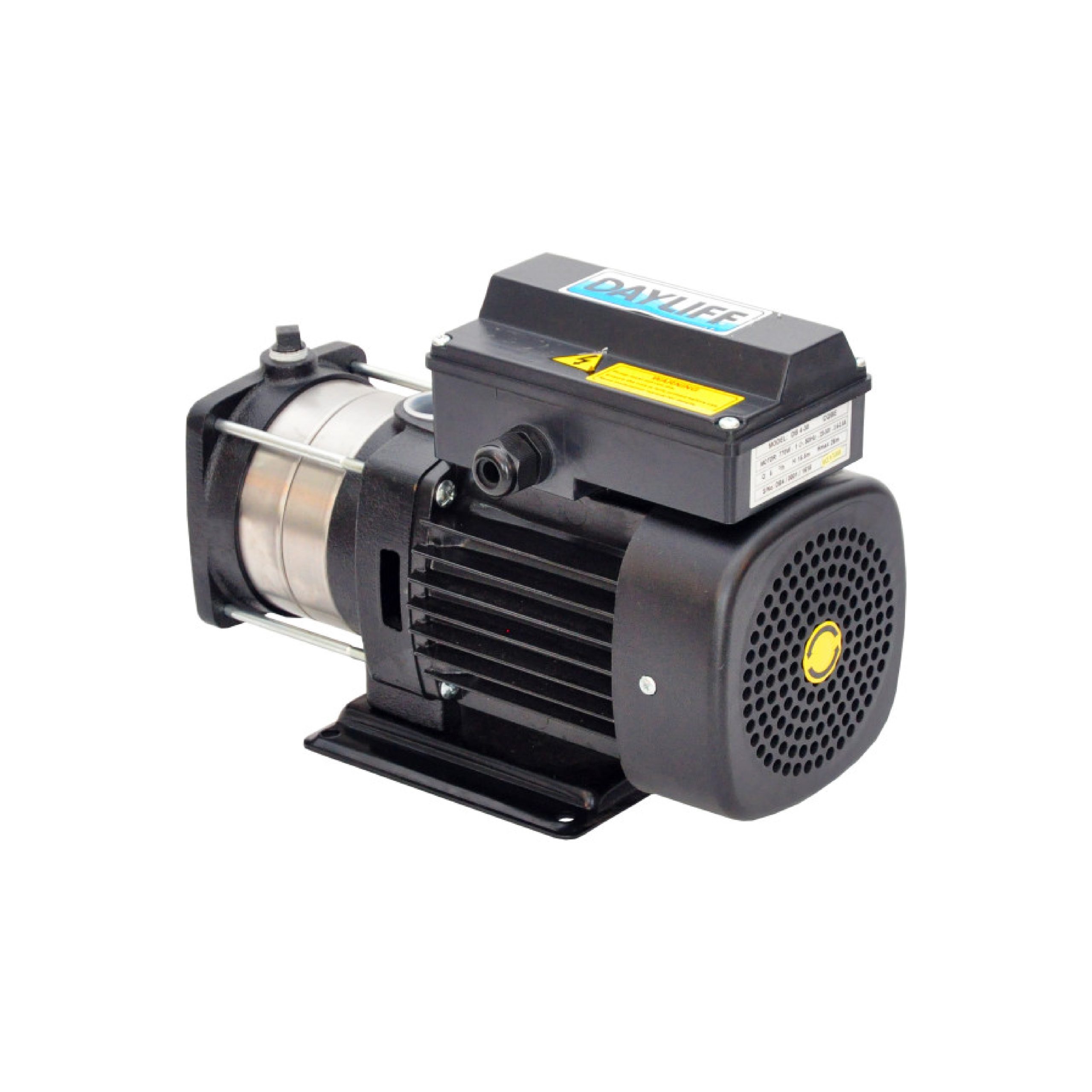

Dayliff DB 2-30 Super Silent Booster Pump
Key Features:
- 🤫 Super Silent Operation: Advanced technology ensures minimal noise during operation.
- 💧 Efficient Boosting: Provides strong and consistent water pressure for various applications.
- 🛠️ Easy Installation: User-friendly design for hassle-free setup.
- 💪 Durable Construction: Built to withstand long-term use and harsh environments.
- 🌊 Versatile Application: Suitable for boosting water pressure in residential, commercial, and industrial settings.
- 📏 Compact Size: Space-saving design for convenient installation in tight spaces.
- 🚿 Enhanced Water Flow: Improves water flow for showers, taps, and other fixtures.
- 🌍 Energy Efficient: Helps conserve energy while maintaining optimal performance.
The DAYLIFF DB range of horizontal multistage centrifugal pumps are designed for continuous duty in various water transfer applications. The pump has small physical dimensions, axial suction port and radial discharge port and is base plate mounted. Suction chamber and pump head are made of grey cast iron, the impeller and impeller housing of stainless steel.
Both pump and continuously rated motor unit are of monoblock design, and particular attention has been paid to quietness and smooth operation.
MOTOR
The pump is coupled to a totally enclosed, fan cooled DAYLIFF single phase squirrel-cage motor with built in thermal overload protection. When connected to a power outlet fuse or MCB protection must be provided.
| Motor | |
| Enclosure Class | IP54 |
| Voltage | 1×220-240V |
| Insulation Class | F |
| Speed | 2900rpm |
| Operating Conditions | |
| Pumped Liquid | Thin, clean, chemically non aggressive liquids without abrasive particles or fibres |
| Liquid Temperature Range | 0C to +90C |
| Maximum Ambient Temperature | +55C |
| Maximum Suction Lift | According to the NPSH curve plus a safety margin of 1.0m |
| Speed | 2900rpm |
| Maximum Inlet Pressure | 6 Bars |
| Maximum Operating Pressure | 10 Bar up to 40C, 6 Bar up to 90C |
| Pump Information | |
| Model | DB 2/30 |
| Power (kW) | 0.480 |
| Maximum Operating Current (A) | 2.3 |
| Dimensions (mm) – H | 224 |
| Dimension(mm) L1 | 325 |
| Dimension(mm) L2 | 91 |
| Weight (kg) | 12 |
| Dimension(mm) L3 | 80 |
| Dimension(mm) L4 | 118 |
| Dimension(mm) B1 | 141 |
