Three phase induction motor is one of ac machines family. It converts the ac electrical power input into a mechanical power output. The conversion process takes place through the rotating magnetic field. Its theory of operation is based on the mutual electromagnetic induction between the primary circuit and secondary circuit. Three-phase induction motors are the most widely used electric motors in industry. When fed from constant voltage constant frequency they run at nearly constant speed from no-load to full-load. 3-phase induction motors are simple, rugged, low-priced, easy to maintain and can be manufactured with characteristics to suit most industrial requirements. Nowadays, with the development of power semiconductors, induction motors may be considered as serious rivals to dc motors in many speed control systems.

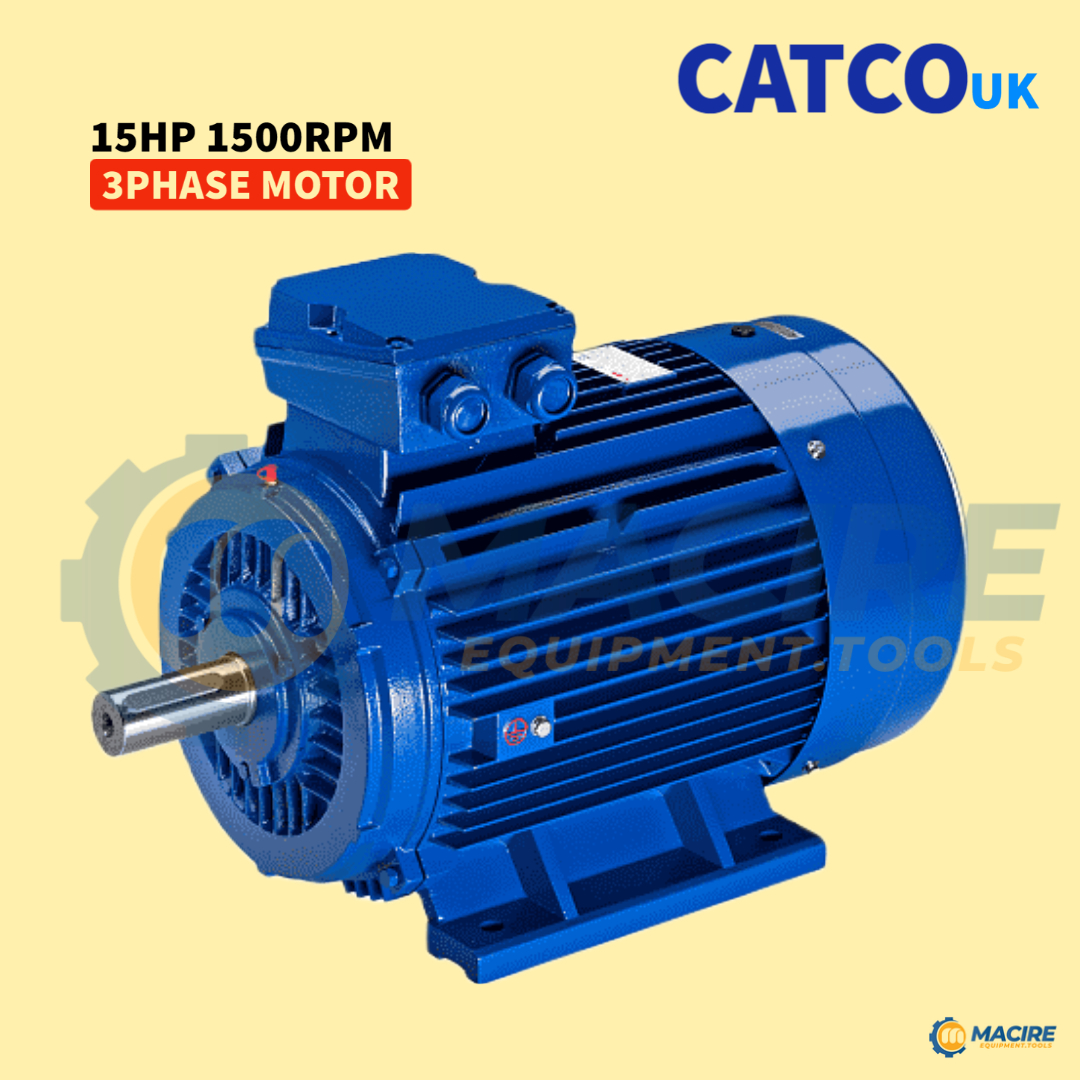

Electric Motor, Three Phase 11kw 15HP

4 Pole = 1400rpm
Amps at 400v 21.05
Frame size MSB1600M4
Rugged and Reliable
Lightweight aluminium Construction
Suitable for wet and dusty applications
50/60hz rated
Inverter drive rated
Multi Mount feet
Efficiency IE1
125nm brake
Weight 81.5kgs
Shaft Dia 42mm x 110mm
Base to Centre of Shaft 160mm
Feet Hole Centres Side of Motor 210mm
Feet Hole centres across Motor 254mm
Up to 3.0kw supplied with 205v dc brake and full wave rectifier, 4kw and above supplied with a 190v dc brake and half wave rectifier,
All Prices include manual Brake hand release,
the torque figures are set and cannot be changed, if different values are required please contact us for more information about our retrofit range
All mounting variations as Per Picture Selections B3 foot mount or B34 foot and Flanged or B35 foot and flanged, Please note feet can be easily removed if not required Full Dimensional Data and Electrical Data please see attached Data Sheets
