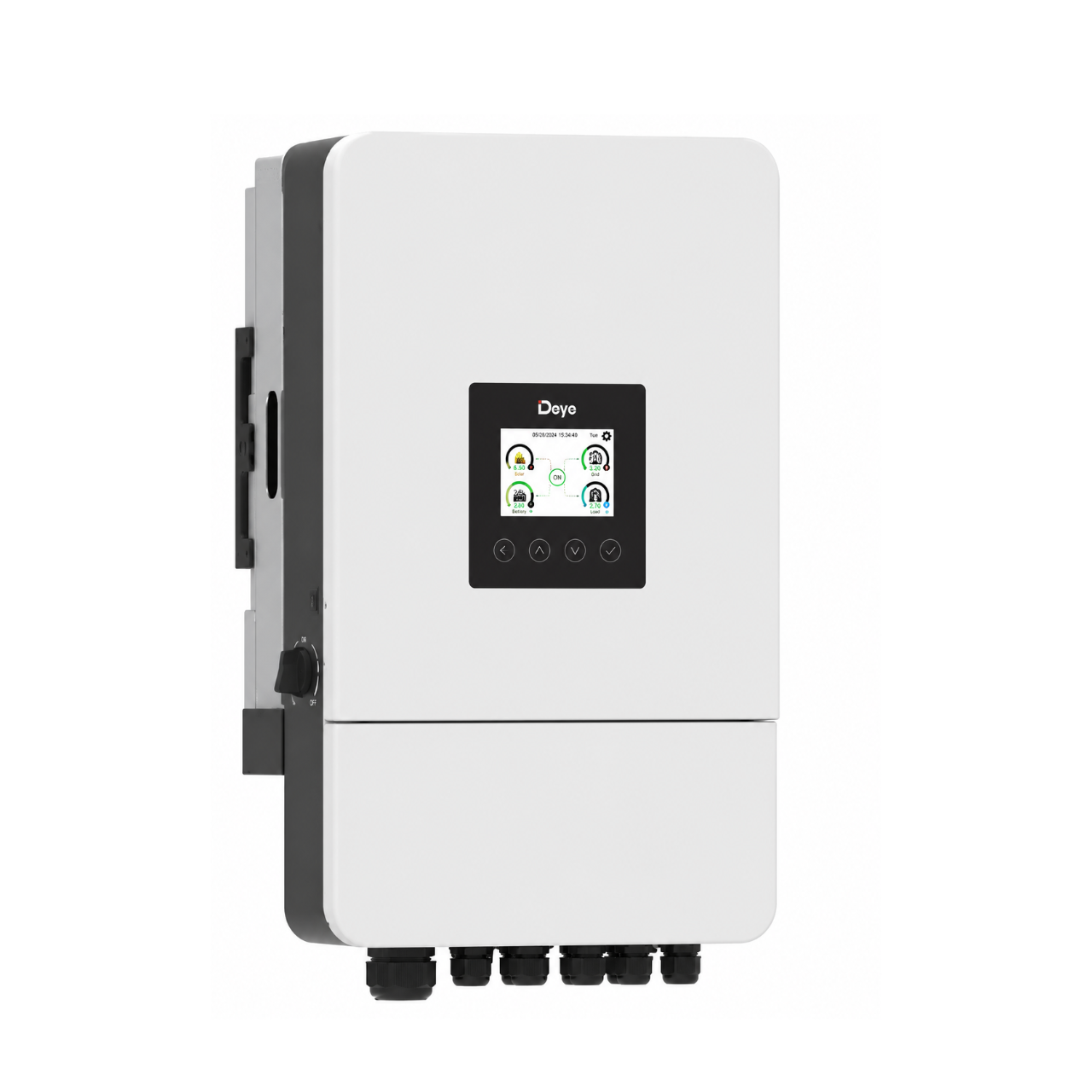

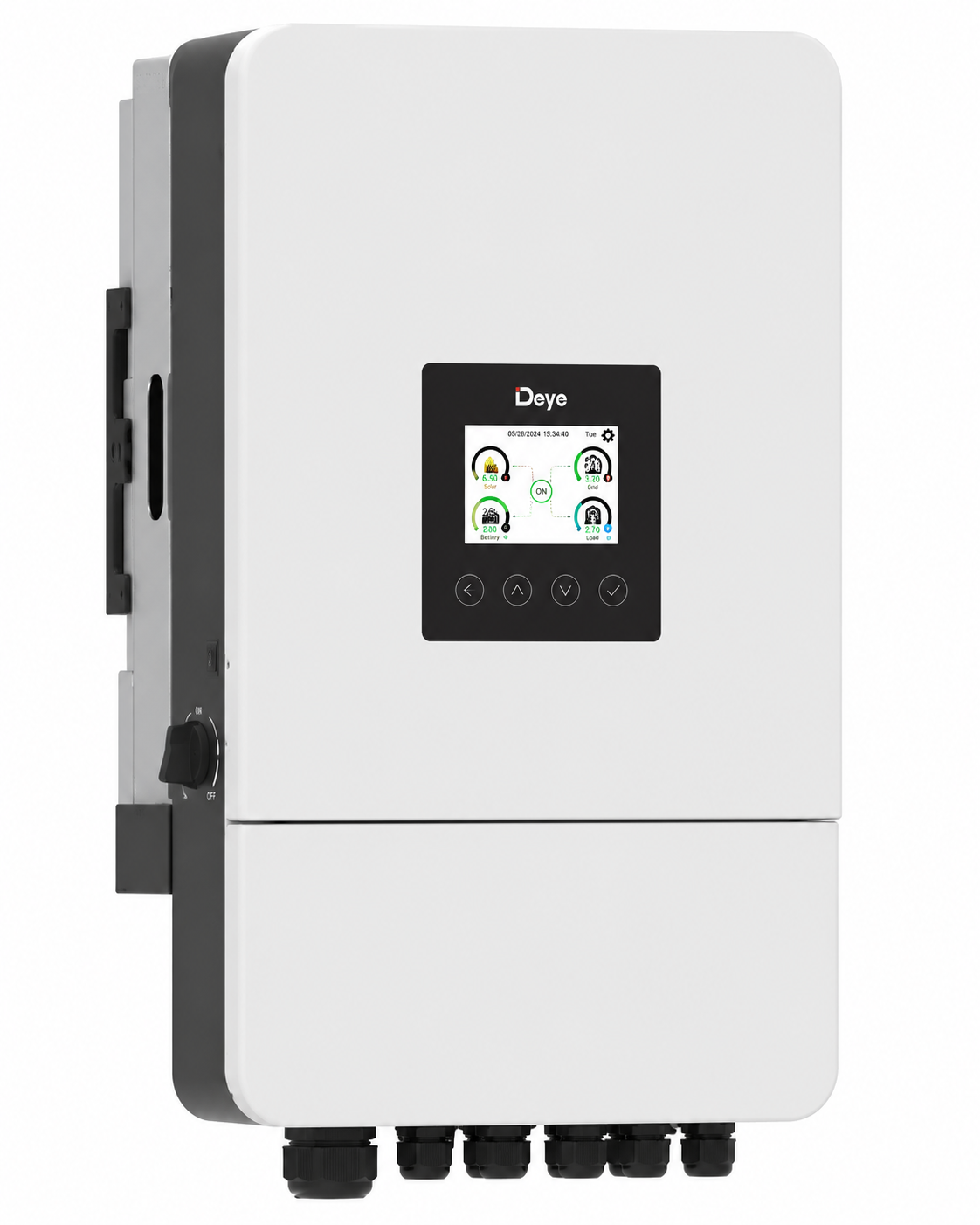

8kW Deye SUN-8K-SG05LP1-EU-SM2-P Single-Phase Hybrid Solar Inverter – 48V

The 8kW Deye SUN-8K-SG05LP1-EU-SM2-P Single-Phase Hybrid Solar Inverter is a high-capacity low-voltage hybrid inverter engineered for solar generation, battery storage, grid interaction and backup power. It delivers 8,000W rated AC output and works with 40–60V lead-acid or lithium-ion battery banks, making it particularly suitable for 48V-class energy-storage systems.

Its solar architecture features 2 MPPT trackers, while the 8kW model supports up to 12,800W maximum PV input power. The inverter provides up to 190A battery charging and discharging current, enabling high-rate energy storage and recovery. It also supports AC coupling, generator energy storage and configurable battery charging/discharging periods.

Macire supplies the Deye inverter with technical guidance for correct battery, PV-array and protection-system sizing.

⭐ Genuine Product | Verified & Supported by Macire

System Architecture & Configuration

8kW Single-Phase Output

Provides 8,000W rated AC output, making it suitable for substantial residential, office and light-commercial loads.

48V-Class Battery System

Supports 40–60V batteries, including lithium-ion and lead-acid technologies. Lithium battery charging can automatically adapt through compatible BMS communication.

Dual MPPT Solar Input

Two independent MPPT trackers improve flexibility when designing PV arrays with different string arrangements or orientations.

Hybrid Energy Management

The inverter integrates solar PV, batteries, grid and compatible generator input into one energy-management platform. It also supports AC coupling for retrofitting existing solar installations.

Technical Specifications

Specifications are based on Deye’s published documentation for the SUN-SG05LP1-EU-SM2-P series.

Key Features

• 8kW rated single-phase AC output
• 40–60V low-voltage battery architecture
• High 190A charging current
• High 190A battery discharge current
• 12.8kW maximum PV input power
• Dual MPPT solar tracking
• Supports lithium-ion and lead-acid batteries
• Automatic lithium BMS adaptation
• Six programmable battery charging/discharging periods
• AC coupling for existing solar installations
• Supports energy storage from a diesel generator
• Colour touchscreen with IP65 protection
• Parallel operation of up to 16 compatible units
• Maximum inverter efficiency of 97.6%

Applications / Use Cases

• 🏠 Large Homes – Whole-home solar, battery backup and energy management
• 🏢 Offices – Computers, lighting, networking and essential equipment
• 🏨 Hospitality – Guest facilities and selected operational loads
• 🏥 Clinics – Backup for appropriately sized essential circuits
• 🚜 Farms – Farmhouse, office and selected electrical equipment
• 🏪 Businesses – Shops and other single-phase commercial premises
• ☀️ Solar + Battery Systems – High-capacity self-consumption and backup installations

Installation & Engineering Notes

The SUN-8K-SG05LP1-EU-SM2-P requires professional system design. PV strings must remain within the inverter’s specified 500V maximum PV input voltage and 150–425V MPPT operating range.

Battery cables must be correctly sized for the inverter’s high DC current capability. Compatible lithium batteries should use the appropriate BMS communication configuration.

Install suitable AC/DC isolators, breakers, surge protection, earthing and correctly rated cabling. The inverter itself carries an IP65 rating, but installation location, ventilation and manufacturer clearances must still be respected.

Macire can assist with inverter, battery, solar-panel and protection-system sizing.

Care, Maintenance & Operations

1. Keep the inverter ventilation areas unobstructed.
2. Periodically inspect PV, battery and AC connections.
3. Monitor system warnings through the inverter display or configured monitoring platform.
4. Maintain lithium batteries according to their manufacturer’s requirements.
5. Check DC and AC protection equipment periodically.
6. Keep firmware and battery communication settings correctly configured.
7. Avoid continually operating the system beyond its designed load.
8. Have abnormal faults investigated by a qualified solar technician.

Do’s & Don’ts

Do’s

• Use a correctly sized 48V-class battery bank.
• Design PV strings within Deye’s specified voltage limits.
• Install appropriate AC and DC protection.
• Use correctly sized battery cables.
• Configure lithium BMS communication correctly.
• Size loads according to the inverter’s output capacity.
• Use qualified solar technicians for installation.

Don’ts

• Do not exceed the 500V maximum PV input voltage.
• Do not reverse battery or PV polarity.
• Do not use undersized battery cables.
• Do not bypass required circuit protection.
• Do not mix incompatible batteries.
• Do not overload the inverter continuously.
• Do not modify internal inverter components.

Compatibility

The Deye SUN-8K-SG05LP1-EU-SM2-P supports integration with:

• 40–60V lithium battery systems
• 48V-class LiFePO₄ battery banks
• Lead-acid battery banks
• Solar PV arrays
• Utility/grid supply
• Compatible diesel generators
• Existing AC-coupled solar installations
• Compatible battery BMS systems
• Solar monitoring systems
• Multiple batteries connected in parallel

Deye specifically states support for multiple batteries in parallel and storage of energy from diesel generators.

Performance / Load Guide

Important: Battery runtime depends on battery usable capacity, load, battery discharge limits, inverter losses and available solar generation. The inverter’s 8kW rating does not determine backup duration.

Mini FAQ

1. Is the Deye SUN-8K-SG05LP1-EU-SM2-P a 48V inverter?
Yes. Its specified battery operating range is 40–60V, making it suitable for compatible 48V-class battery systems.

2. What is its maximum charging current?
The 8kW model supports up to 190A charging and 190A discharging current.

3. How much solar PV can it support?
Deye specifies up to 12,800W maximum PV input power for this 8kW model.

4. Can it work with a generator?
Yes. Deye lists support for storing energy from a diesel generator.

5. Does Macire provide delivery and technical support?
Yes. Macire can provide product supply, system-sizing guidance, installation support and delivery across Kenya.
