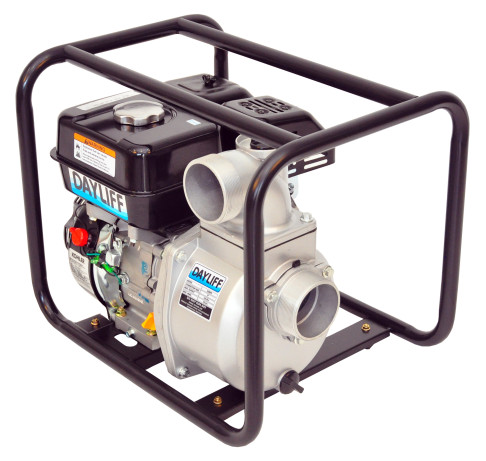

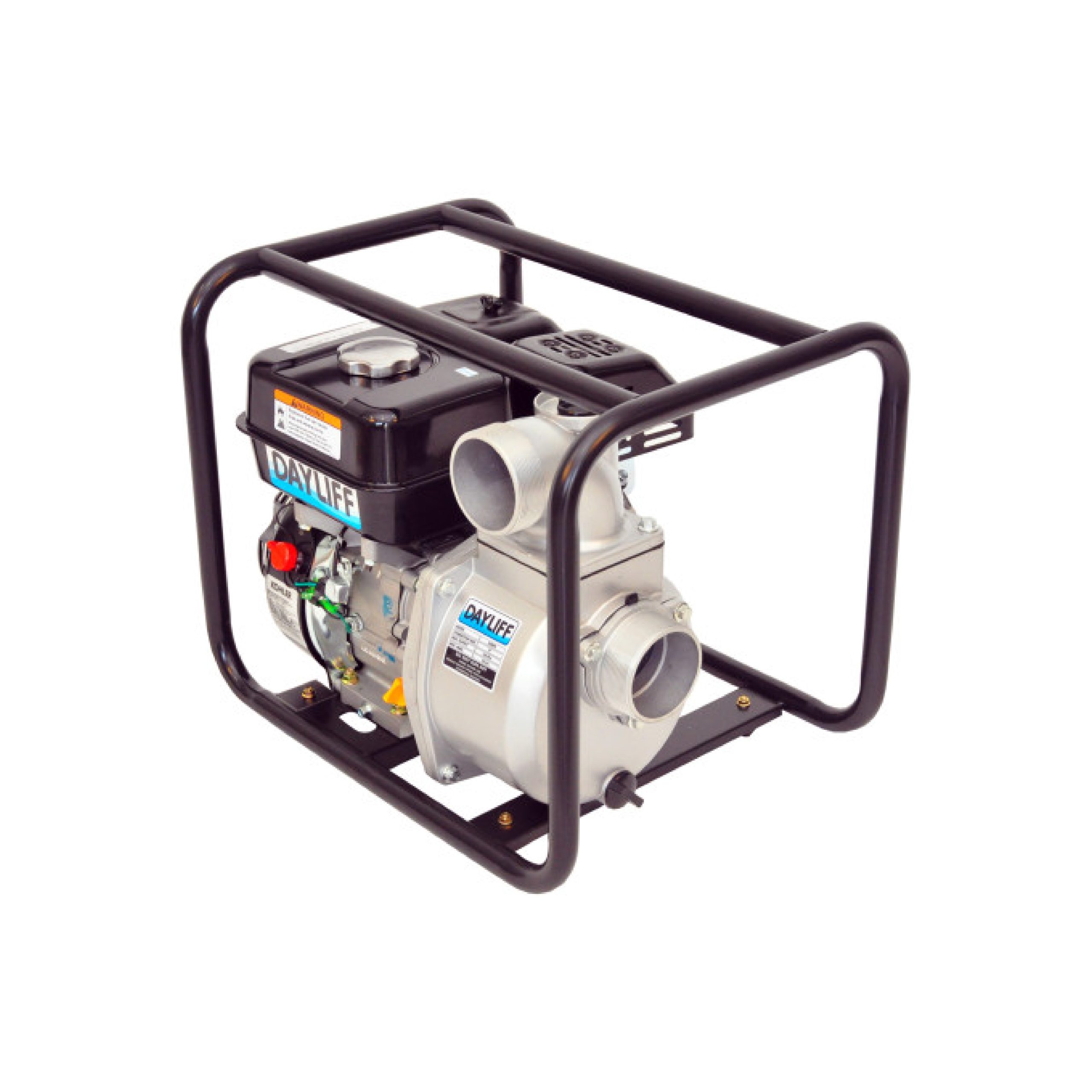

7.0HP Dayliff DC80P 3″ Petrol Pump
The Dayliff DC80P is part of the Dayliff DC range of self-priming engine pumps, designed for portability and versatility, making it suitable for irrigation, dewatering, and general pumping tasks. This model features robust construction and efficient performance, ideal for various applications.
Key Features:
- 🌊 Portable Design: Fully portable with a sturdy carrying and protection frame.
- 🔄 Open Impellers: Suitable for pumping lightly silted water.
- 🛠️ Durable Construction: Pump body and impellers made from high-grade cast aluminum.
- 🔌 Quick Connectors: Includes quick couple hose connectors and suction strainers.
- 🌍 Maximum Suction: Up to 8m at sea level; reduced at higher altitudes.
- 💡 Engine Efficiency: Proprietary air-cooled, 4-stroke OHV single cylinder with transistorized ignition and oil alert.
Engine Specifications:
- Engine Model: GK210
- Fuel Type: Petrol
- Engine Capacity: 210cc
- Maximum Power: 7 HP
- Fuel Tank Capacity: 3.6 liters
- Fuel Consumption: 1.7 liters per hour
- Inlet & Outlet Size: 3 inches
- Dimensions (L x W x H): 510 x 375 x 435 mm
- Weight: 25 kg
Operating Guidelines:
- Maximum Performance: Performance curves relate to the engine governor set at 3600rpm to achieve maximum rated power.
- Extended Duty: For prolonged engine life, run pumps at approximately three-quarters throttle setting during extended use, reducing pump performance accordingly.
Econo Models:
- Designed for light duties and shorter operating periods, utilizing different specification components.
Specifications Overview:
| Model | Fuel | Engine | Capacity (cc) | Max Power (HP) | Tank (Ltr) | Consumption (L/Hr) | Inlet & Outlet (“) | Dimensions (L x W x H) (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| DC 50E | Petrol | SW170FB | 212 | 7 | 3.6 | 1.7 | 2 | 460 x 365 x 355 | 19 |
| DC 50P | Petrol | GK210 | 210 | – | – | – | 2 | 450 x 375 x 375 | 24 |
| DC 80E | Petrol | SW170FB | 212 | – | – | – | 3 | 485 x 365 x 405 | 21 |
| DC 80P | Petrol | GK210 | 210 | 7 | 3.6 | 1.7 | 3 | 510 x 375 x 435 | 25 |
| DC 80D | Diesel | LA 178F | 296 | 6 | 3.5 | 1.5 | 3 | 540 x 440 x 510 | 43 |
| DC 100D | Diesel | LA 186F | 406 | 10 | 5.5 | 2.5 | 4 | 590 x 450 x 530 | 64 |
The Dayliff DC80P 3″ Petrol Pump is a reliable and efficient choice for various pumping needs, combining high performance with ease of use and durability.
