6kW 14kWh Lithium Valley Hybrid Solar System

6kW 14kWh Lithium Valley Hybrid Solar System – 6kW Inverter, 14.336kWh Lithium Battery, 14×450W Panels

Product Overview

The 6kW 14kWh Lithium Valley Hybrid Solar System is a complete energy solution designed for homes, offices and small commercial premises requiring dependable solar generation, battery backup and intelligent power management.

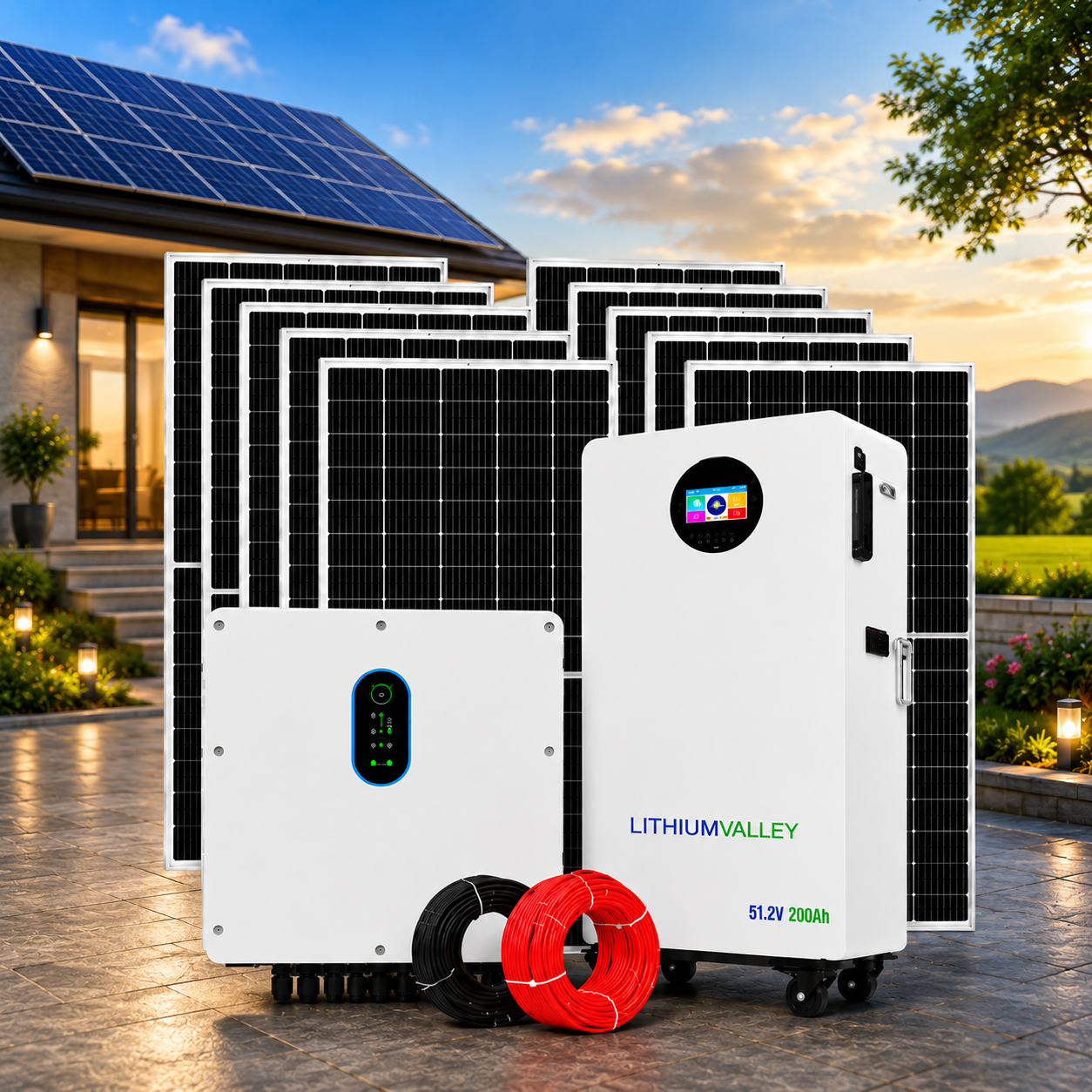

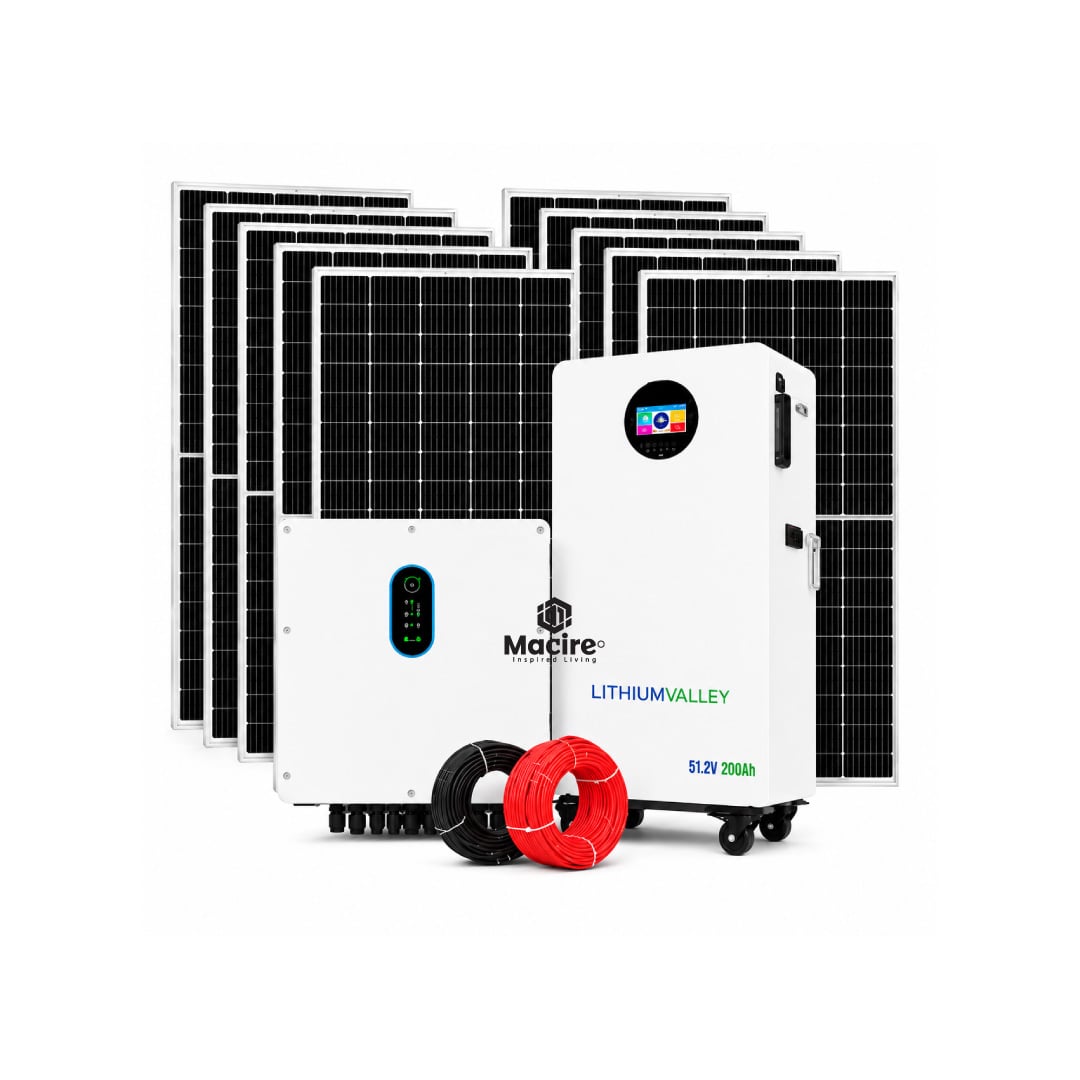

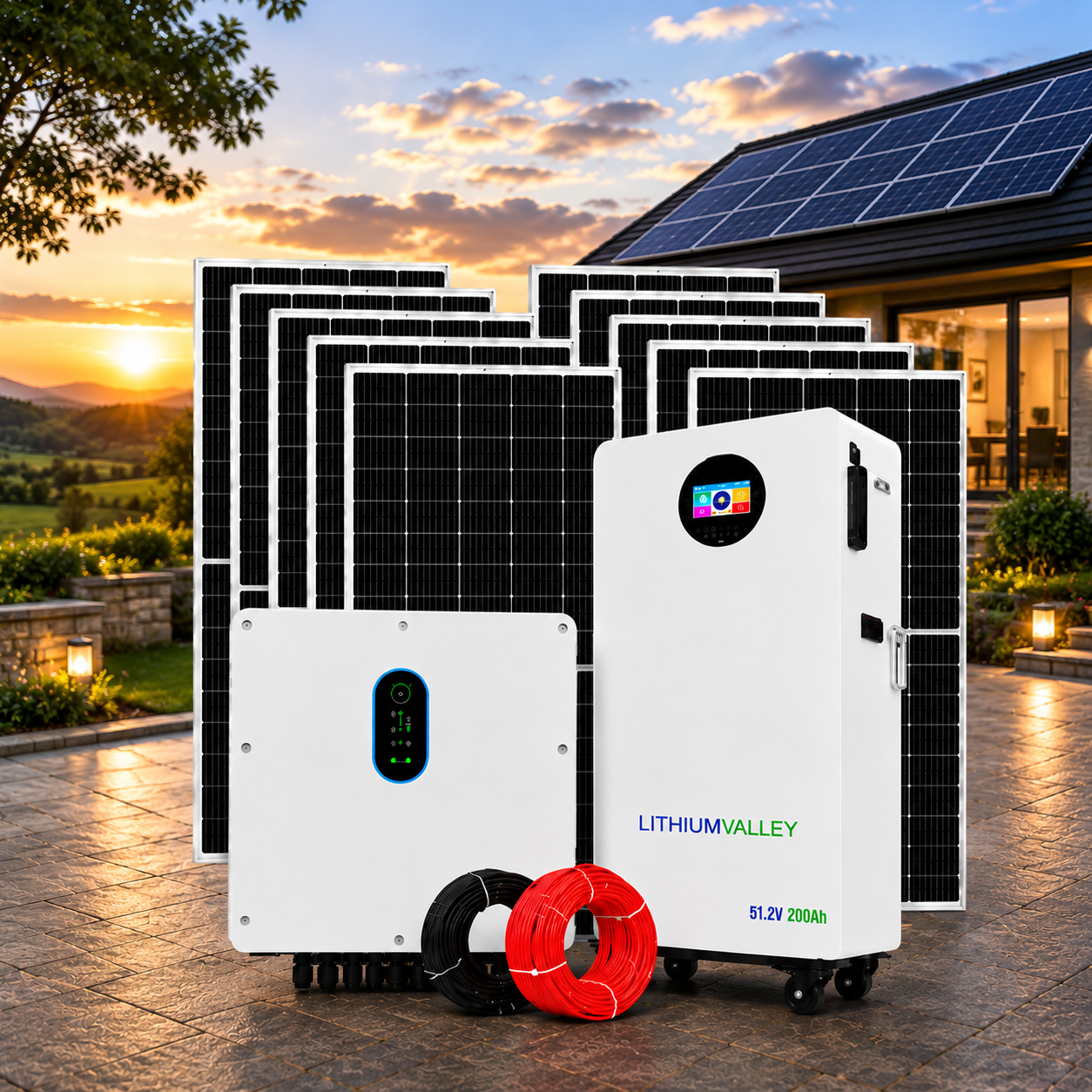

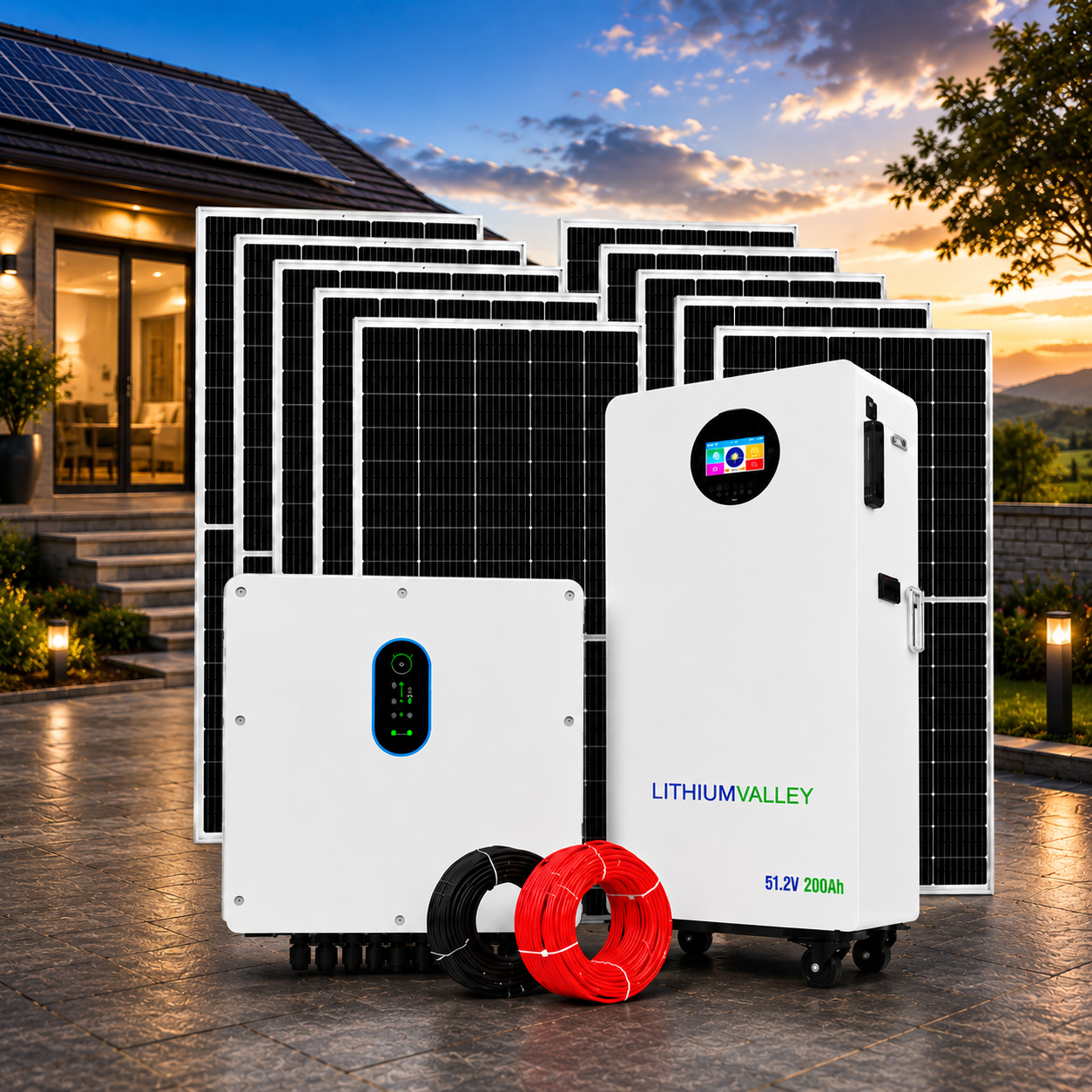

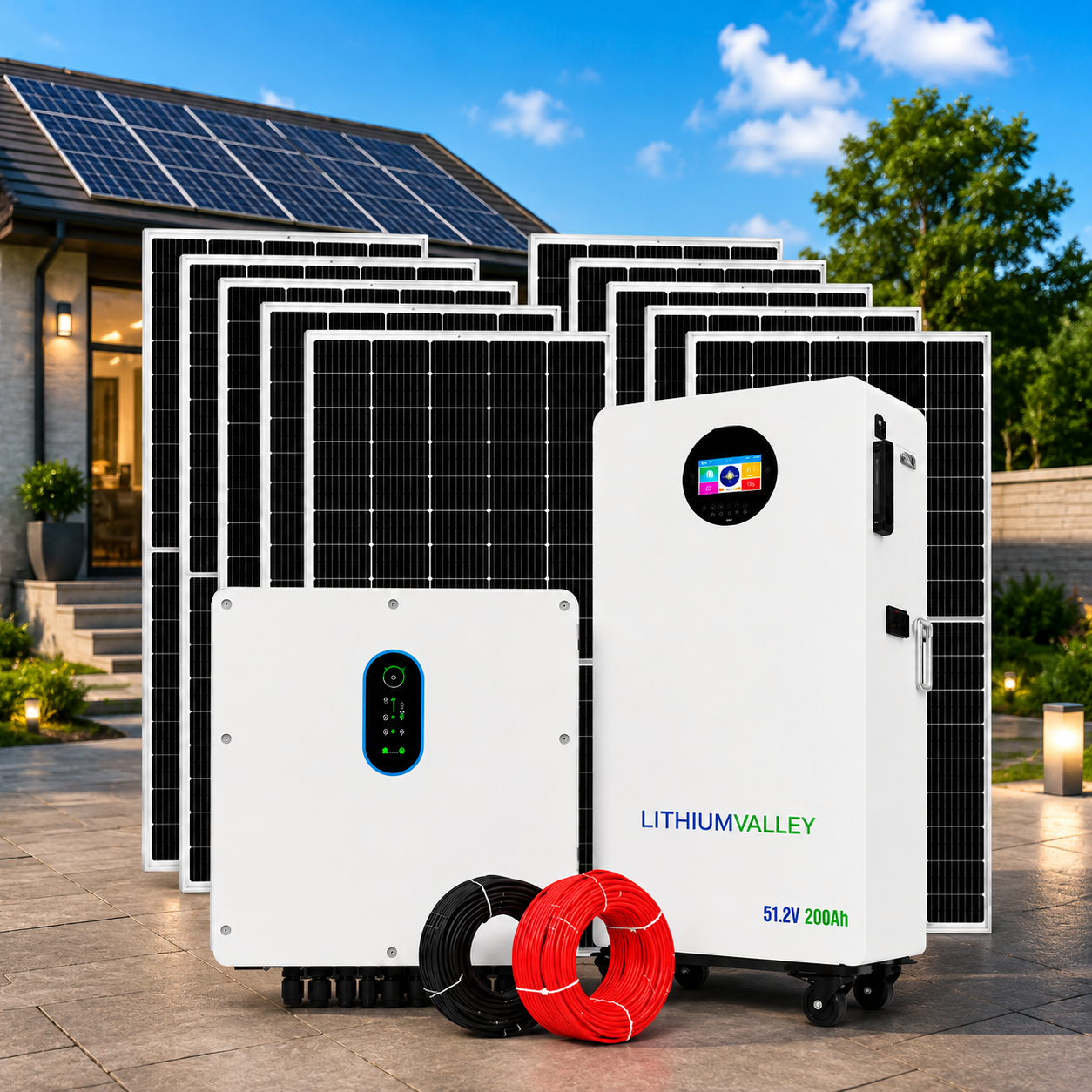

The system combines a 6kW Lithium Valley LV 6KHB-120 hybrid inverter, a 14.336kWh W15-E5 lithium battery and 14 × 450W high-efficiency solar panels, providing a total installed solar array capacity of 6.3kWp. The hybrid configuration allows solar energy, battery storage and grid power to work together to maintain reliable electricity during both daytime and night-time operation.

Macire supplies the complete system together with compatible installation materials and provides technical guidance on system sizing and installation. Each major component is verified by Macire before dispatch, with delivery and installation support available across Kenya.

⭐ Genuine Product | Verified & Supported by Macire

System Architecture & Configuration

Hybrid Inverter

• 1 × Lithium Valley LV 6KHB-120
• Rated inverter output: 6kW
• Hybrid solar power management
• Integrates solar, battery and grid power
• Designed for automatic energy management

Lithium Battery Storage

• 1 × Lithium Valley W15-E5
• Battery capacity: 14.336kWh
• Lithium energy storage technology
• Designed for daily charging and discharging
• Provides stored energy for night-time and backup operation

Solar Array

• 14 × 450W high-efficiency solar panels
• Total PV array: 6,300W / 6.3kWp
• Suitable for daytime load supply and battery charging

Installation Package

• Complete accessories and installation materials
• Final cable sizing, protection and mounting configuration should be determined according to the installation site.

Technical Specifications

Key Features

• 6kW hybrid inverter for reliable household and commercial loads
• Large 14.336kWh lithium battery storage capacity
• 14 × 450W high-efficiency solar panels
• 6.3kWp total installed PV capacity
• Supports both daytime solar consumption and stored night-time energy
• Hybrid operation integrates solar, battery and grid supply
• Lithium battery technology for efficient energy storage
• Suitable for reducing dependence on grid electricity
• Provides backup power during grid interruptions
• Complete system supplied with installation materials
• System sizing and installation guidance available from Macire
• Major components verified by Macire before dispatch

Applications / Use Cases

• 🏠 Homes – Lighting, TVs, refrigerators, Wi-Fi, electronics and selected household appliances
• 🏢 Offices – Computers, printers, lighting, networking equipment and general office loads
• 🏪 Shops – Lighting, POS systems, refrigeration and electronics
• 🏥 Small Clinics – Essential lighting, computers and selected medical equipment
• 🚜 Farms – General electrical loads where appropriately sized
• 🏫 Schools – Computers, lighting, printers and communication equipment
• 🏭 Small Businesses – Backup and solar power for appropriately sized equipment

Installation & Engineering Notes

The solar panels should be installed in an open location with adequate sunlight and minimal shading. Panel orientation and mounting angle should be determined according to the installation site.

The inverter and battery should be installed in a dry, ventilated and protected environment. Correct DC and AC protection, earthing, isolators and appropriately sized cables must be used.

A professional load assessment is recommended before installation, particularly where the property contains high-power appliances such as water heaters, pumps, cookers, air conditioners or large motors.

Macire can provide technical guidance on system configuration, protection requirements and installation.

Care, Maintenance & Operations

1. Keep the inverter and battery area clean, dry and adequately ventilated.
2. Periodically inspect solar panels for dust, leaves and other obstructions.
3. Clean panels when required to maintain effective solar generation.
4. Regularly inspect cables, isolators, breakers and electrical connections.
5. Avoid operating loads beyond the inverter’s rated capacity.
6. Monitor battery charge levels and system operating status.
7. Have electrical faults investigated by a qualified solar technician.
8. Contact Macire for technical support, servicing and compatible replacement components.

Do’s & Don’ts

Do’s

• Use appropriately sized electrical protection.
• Install the inverter and battery in a ventilated location.
• Have the system professionally commissioned.
• Balance household loads according to the 6kW inverter capacity.
• Keep the solar panels reasonably clean.
• Follow the manufacturer’s operating requirements.
• Contact Macire when additional system capacity is required.

Don’ts

• Do not exceed the inverter’s rated output.
• Do not install the battery in direct sunlight or exposed outdoor conditions unless specifically approved.
• Do not bypass electrical protection devices.
• Do not modify battery connections without technical guidance.
• Do not allow unqualified personnel to alter the installation.
• Do not connect oversized loads without checking their starting and running requirements.
• Do not obstruct inverter ventilation.

Compatibility

The system can be configured with:

• AC distribution boards
• DC solar protection systems
• Surge protection devices
• Solar isolators
• Changeover and grid integration equipment
• Monitoring accessories supported by the inverter
• Compatible mounting structures
• Correctly sized solar cables and battery connections
• Macire-supplied installation and protection accessories

Estimated Energy Usage Guide

*The figures above are theoretical estimates based on 14.336kWh nominal battery capacity. Actual usable runtime will be lower and depends on battery settings, inverter losses, depth of discharge, appliance behaviour and simultaneous solar/grid input. Performance depends on installation and load sizing as guided by Macire.

Mini FAQ

1. Is this system suitable for a home?
Yes. The 6kW inverter and 14.336kWh battery make it suitable for many residential applications, subject to the home’s actual load requirements.

2. Can the system provide power at night?
Yes. Energy stored in the 14.336kWh lithium battery can supply connected loads when solar generation is unavailable.

3. Does Macire provide installation support?
Yes. Macire can provide technical guidance and installation support depending on the project location and requirements.

4. Is the system energy efficient?
The hybrid configuration prioritises the effective use of solar generation and stored battery energy. Actual performance depends on load profile and installation conditions.

5. Is nationwide delivery available?
Yes. Macire can arrange delivery to customers across Kenya.
