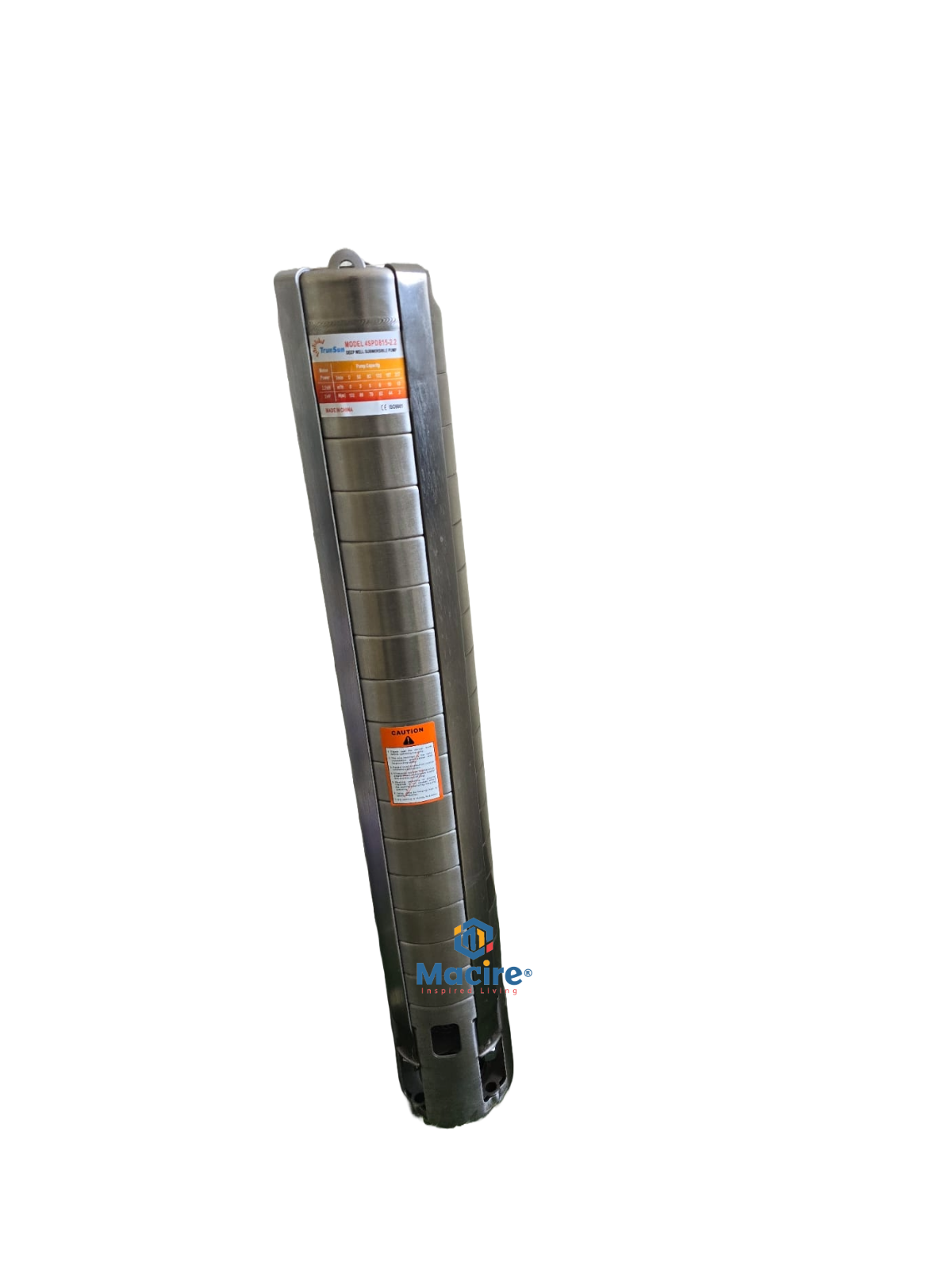

4SPD8/15-2.2KW Taifu Submersible Pump – Heavy-Duty 3 Phase Water Power

???? 4SPD8/15-2.2KW Taifu Submersible Pump – Heavy-Duty 3 Phase Water Power by Macire

???? High Flow | Deep Lift | 3 Phase Power Performance

Unlock superior water delivery with the 4SPD8/15-2.2KW Three Phase Taifu Submersible Pump, now available at Macire. This powerful 3-phase submersible pump is built to deliver consistent, energy-efficient performance in deep wells, industrial plants, irrigation farms, and residential estates. It’s your go-to solution for heavy-duty, continuous water supply needs.

???? Key Features & Benefits

• ???? Triple Power Advantage – 3 Phase Motor
  Designed for efficiency and reliability, the three-phase 380V motor delivers smooth power flow, minimal heat generation, and longer service life.

• ⚙️ High Capacity Output

  • Rated Flow: 8 m³/h

  • Rated Head: 100 meters

  • Max Head: 120 meters

  • Suitable for wells over 100m deep

• ???? Stainless Steel Durability
  Rugged stainless-steel body and components resist corrosion, pressure, and abrasion in harsh water environments.

• ???? Multistage Impeller System
  Features 15 precision-engineered stages for powerful water lift and consistent pressure delivery.

• ???? Energy Efficient Operation
  Advanced motor windings and hydraulic design ensure lower energy use, ideal for long-running operations.

• ???? Built-in Check Valve
  Prevents water backflow and pressure drops, protecting the pump and plumbing systems.

???? Technical Specifications

????️ Ideal Application Areas

• ???? Large-Scale Agriculture – Irrigation of fields, greenhouses & plantations

• ????️ Estates & Apartments – Water supply for multi-unit buildings

• ???? Industrial Systems – Process water, booster stations

• ???? Deep Well Domestic Use – Homes with deep boreholes (over 100m)

• ???? Livestock & Poultry Farms – Clean water supply for animals

???? Maintenance Tips – For a Longer Pump Life

✔️ Always Use 3-Phase Protection: Install an overload relay and phase failure protector.
✔️ Flush Pump Before First Use: Clear factory oil or residue.
✔️ Clean the Impellers Periodically: Remove sand or debris buildup.
✔️ Monitor Voltage: Ensure constant 380V three-phase power without surges.
✔️ Use Proper Cables: Avoid undersized power cables to prevent overheating.
✔️ Store Properly If Not In Use: Dry the pump, oil the bearings lightly, and store in a dry area.

????️ DIY Guide – 3 Phase Installation Steps

1. Pre-Check Power Source: Confirm a 3-phase 380V connection with stable current.

2. Inspect Borehole & Cables: Ensure it’s deep enough and cable length is sufficient.

3. Lower the Pump: Using a lifting rope and safety cable, gently lower pump vertically.

4. Connect Electricals: Properly insulate connections using waterproof sleeves.

5. Prime System: Ensure all air is purged from the pipe before switching on.

6. Test Run: Turn on the pump and monitor amperage, pressure, and flow.

❓ FAQs – 4SPD8/15-2.2KW 3 Phase Pump

Q: Can I use this pump with a single-phase connection?
A: ❌ No. This is strictly for 3-phase 380V power systems.

Q: What is the max depth it can pump from?
A: ✅ Up to 150 meters.

Q: Can I use it for dirty water or sand?
A: ❌ No. It’s designed for clean, filtered borehole water.

Q: Does it come with a control box?
A: ???? The pump may require a 3-phase control panel and overload protector (sold separately).

???? What’s Included

• ✅ 1 x 4SPD8/15-2.2KW Taifu Submersible Pump (3 Phase)

• ✅ User Manual

• ✅ Warranty Card (Contact Macire for terms)

???? Buy From the Trusted Experts – Macire Limited

???? Location: Barkat Biashara Mall, Kumasi Road – Opp. Simba Coach, Nairobi
???? Call/WhatsApp: +254 718 762 530
???? Website: www.macire.co.ke

???? SEO Boosting #Hashtags

#3PhaseSubmersiblePump #TaifuPump #MacireWaterSolutions #DeepWellPumpKenya #MacireLimited #SubmersibleBoreholePump #380VWaterPump #TaifuSubmersibleKenya #IndustrialPump #IrrigationPump #KenyaWaterSolutions #4SPD8Pump

???? 4SPD8/15-2.2KW Taifu Submersible Pump – 3 Phase Deep Well Champion

• ???? Power: 2.2KW (3HP), 3 Phase – 380V

• ???? Flow Rate: 8 m³/h

• ???? Max Head: 120 meters

• ⚙️ Impellers: 15 Stainless Steel Stages

• ???? Use: Deep wells, farms, apartments, industries

• ????️ Durable & Energy-Efficient

✅ Available now at Macire – Kenya’s Water Equipment Experts.
