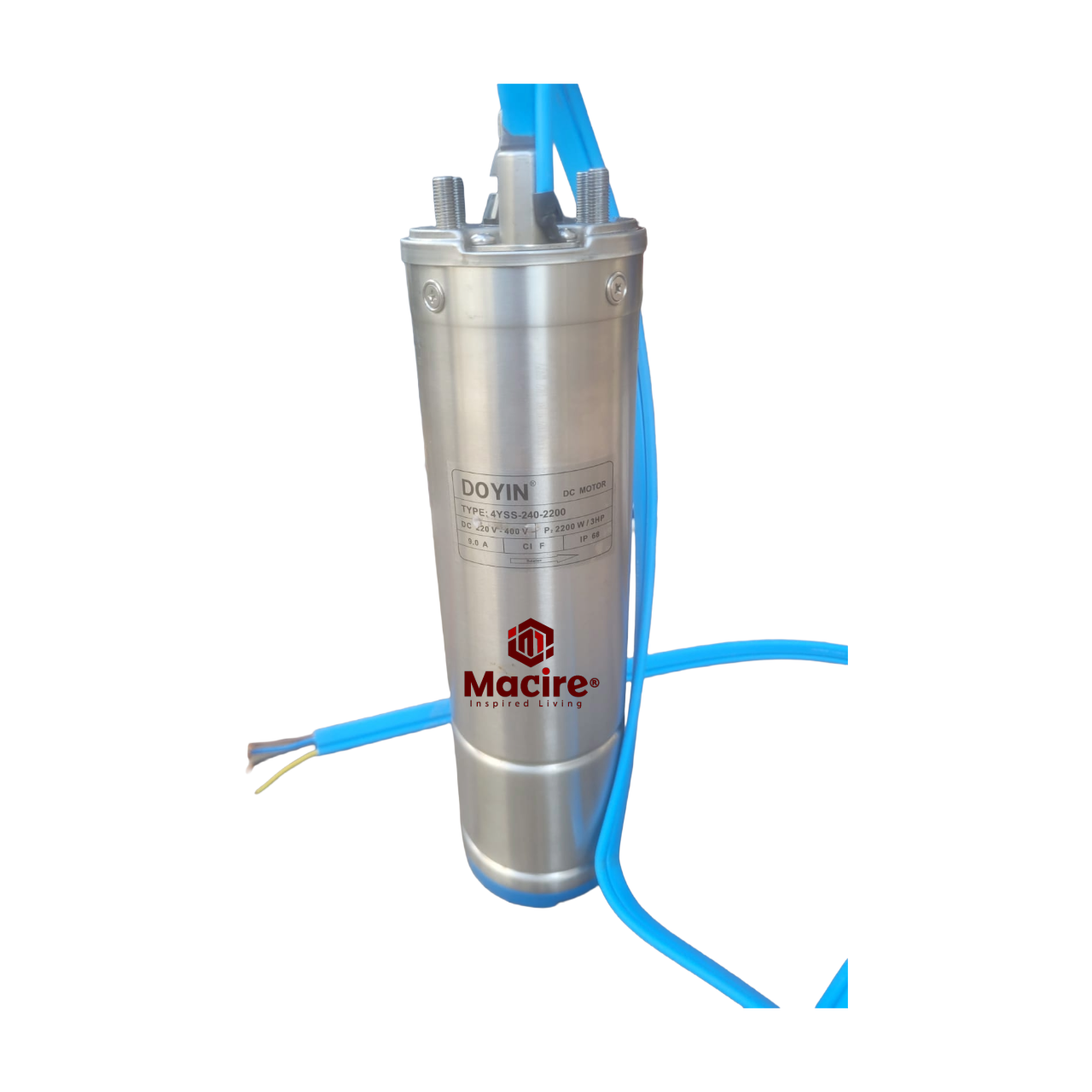

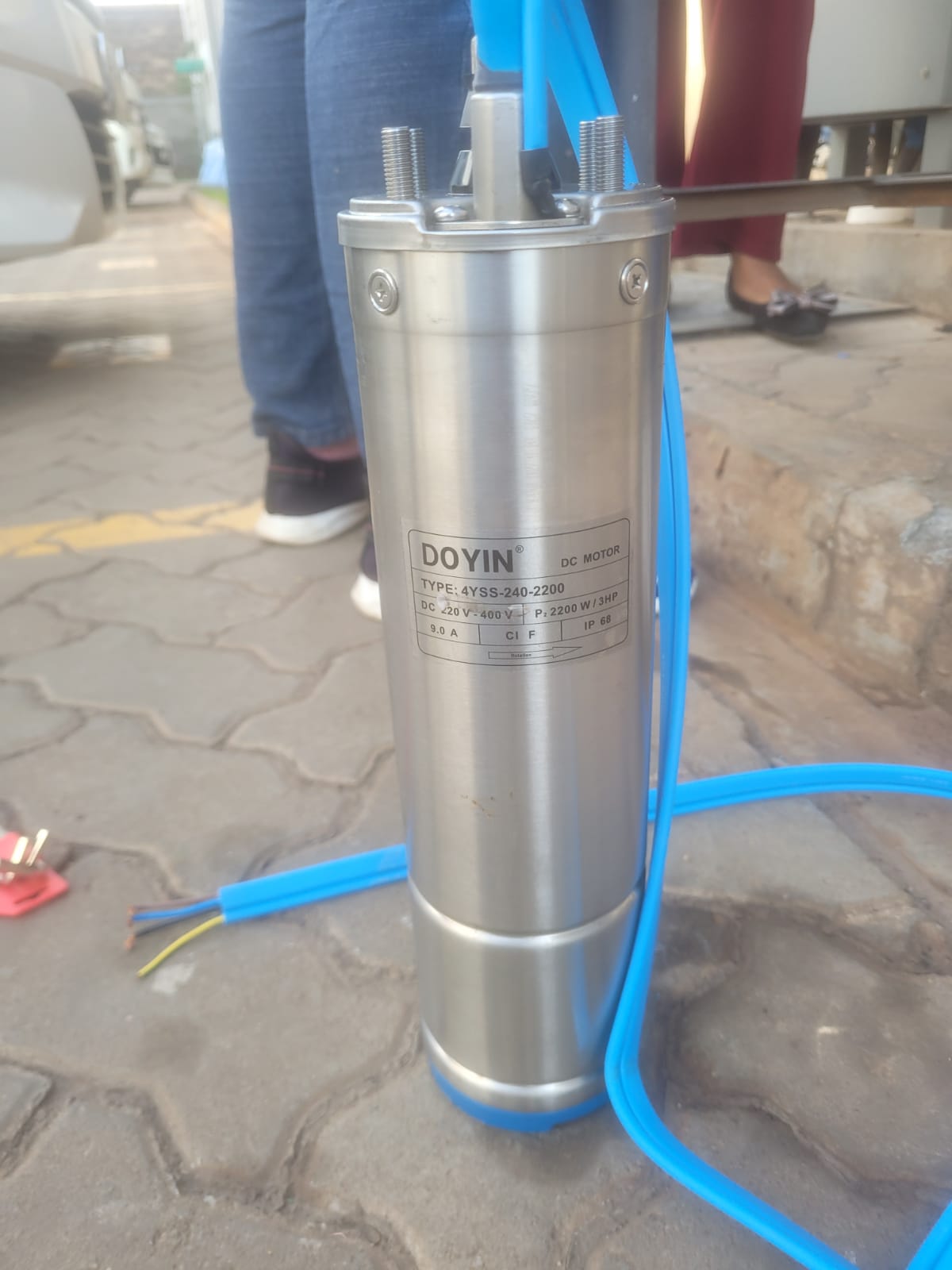

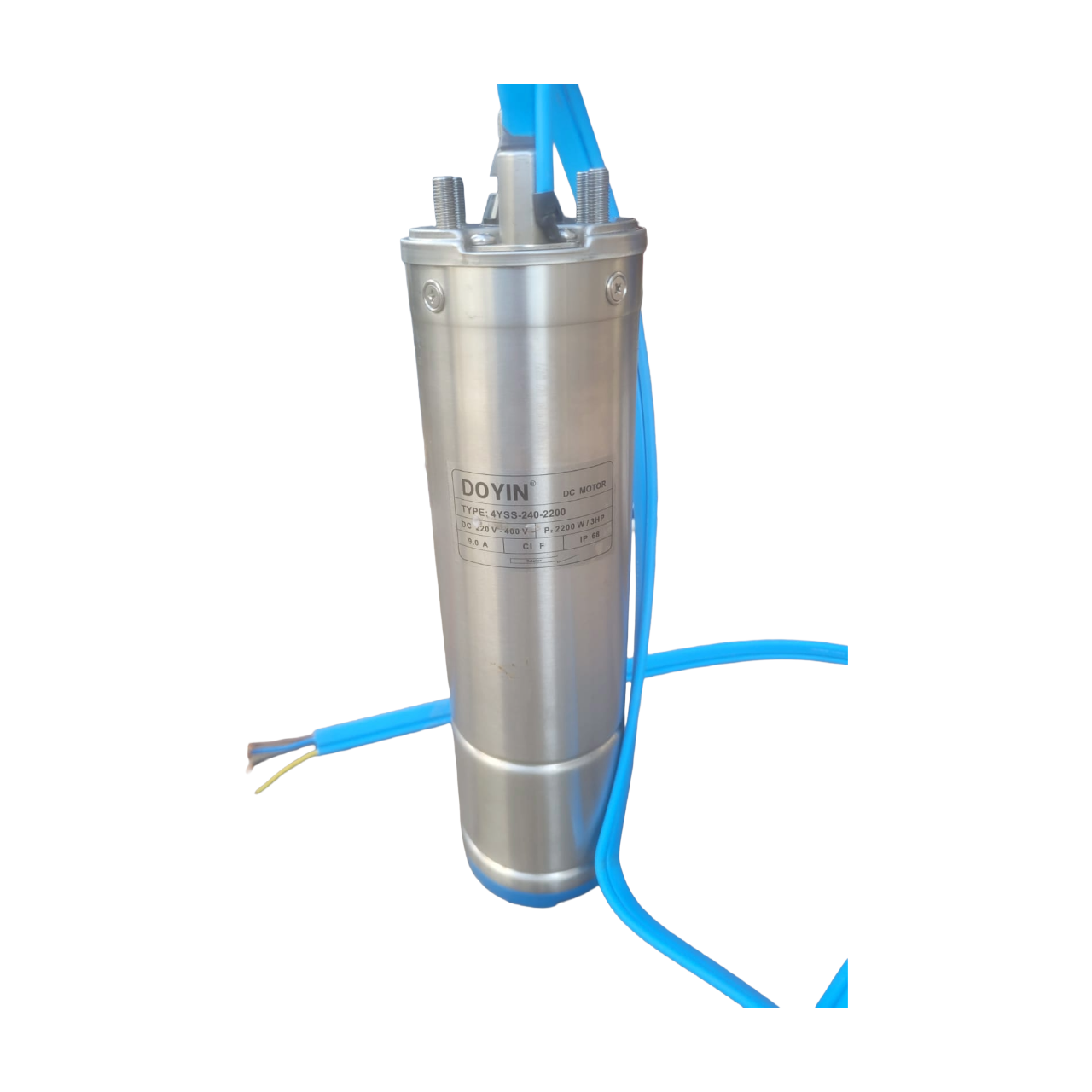

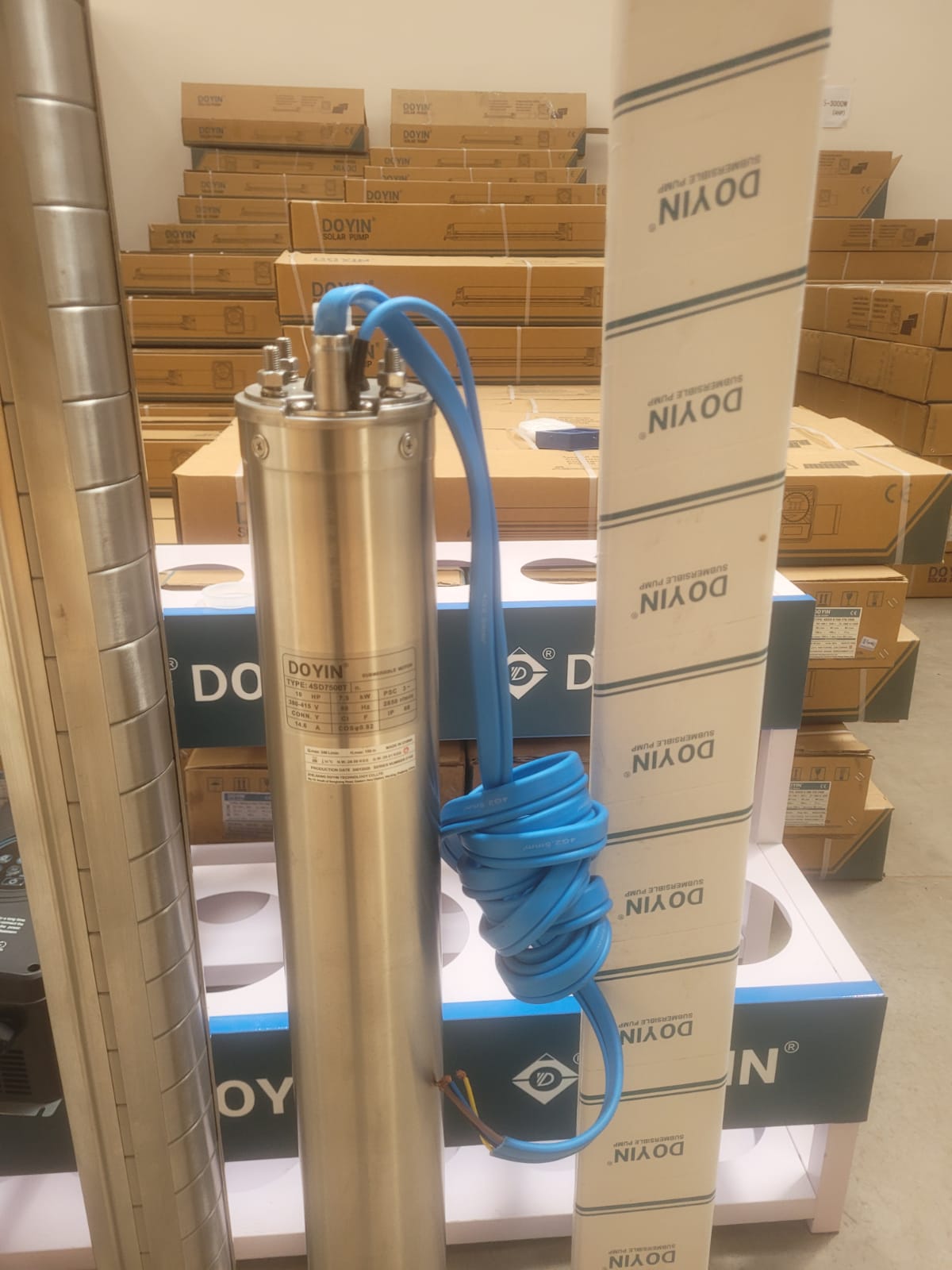

4HP 3kW 4″ Doyin Single-Phase Borehole Pump Motor

The 4HP 3kW 4″ Doyin Single-Phase Borehole Pump Motor is a high-power submersible drive built for demanding deep-borehole installations where three-phase electricity is not available.

Delivering 3kW (4HP) of motor power, it is designed to drive compatible pump bodies used for deep-water extraction, elevated tank filling and demanding agricultural water systems.

Its 4-inch submersible configuration allows it to form part of a correctly matched borehole pump assembly, while the single-phase AC design makes it especially practical for farms, homes and properties operating on single-phase electricity.

This is the motor section only, allowing replacement of a compatible 4HP motor or assembly with a correctly selected Doyin borehole pump body.

Technical Specifications

Key Features

• Heavy-duty 4HP drive capacity
• Powerful 3kW / 3000W output
• 4-inch submersible motor construction
• Single-phase AC operation
• Built for demanding deep-well applications
• Drives compatible high-lift pump bodies
• Suitable for substantial borehole pumping duties
• Practical 4HP option where three-phase supply is unavailable
• Suitable for new pump assembly or motor replacement
• Built for submerged borehole operation

Applications / Use Cases

💧 Deep Boreholes – drives compatible high-lift pump bodies
🌾 Farms – strong motor capacity for demanding water supply
🌱 Irrigation – suitable for correctly sized borehole irrigation systems
🚰 Elevated Tanks – supports compatible high-lift pump configurations
🐄 Livestock Farms – suitable for substantial water requirements
🔧 Motor Replacement – replacement option for compatible 4″ 4HP pump assemblies

Important Compatibility Note

The 3kW / 4HP specification is the motor’s drive rating. The final pump’s head, flow rate and water output depend on the pump body and impeller stages connected to it.

Always match this motor with a compatible 4-inch, 3kW / 4HP borehole pump body.

Installation Notes

• Confirm compatibility with the selected 4″ pump body
• Match the pump body to 3kW / 4HP
• Confirm adequate single-phase electrical supply
• Use correctly sized submersible cable
• Install appropriate motor and overload protection
• Ensure correct pump-body coupling
• Include dry-run protection where required
• Professional installation is recommended

Mini FAQ

What is the motor power?
4HP / 3kW / 3000W.

What size is the motor?
It is a 4-inch borehole pump motor.

Is it single-phase?
Yes. It operates on single-phase AC power.

Is this a complete water pump?
No. This is the borehole motor only; the pump body is selected separately.

What makes the 4HP version suitable for demanding systems?
Its 3kW drive capacity allows it to power compatible pump bodies requiring more motor power than the 1.5HP, 2HP and 3HP options.

Why Buy from Macire

• Genuine Doyin 4HP borehole motor
• Powerful 3kW drive
• 4-inch submersible configuration
• Single-phase AC operation
• Suitable for demanding deep-well systems
• Pump-body matching support
• Professional installation support
• Nationwide delivery
• After-sales technical support
