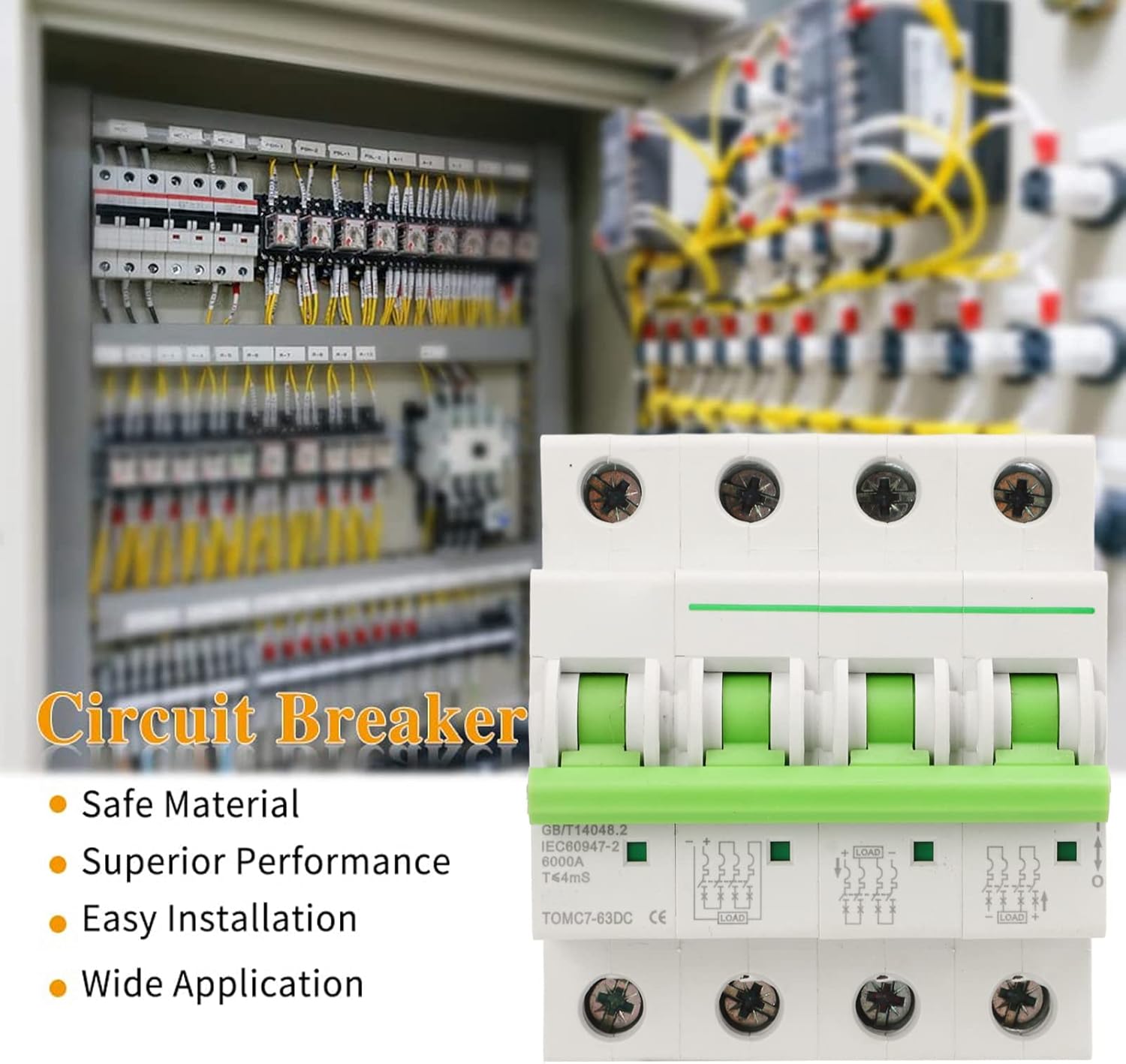

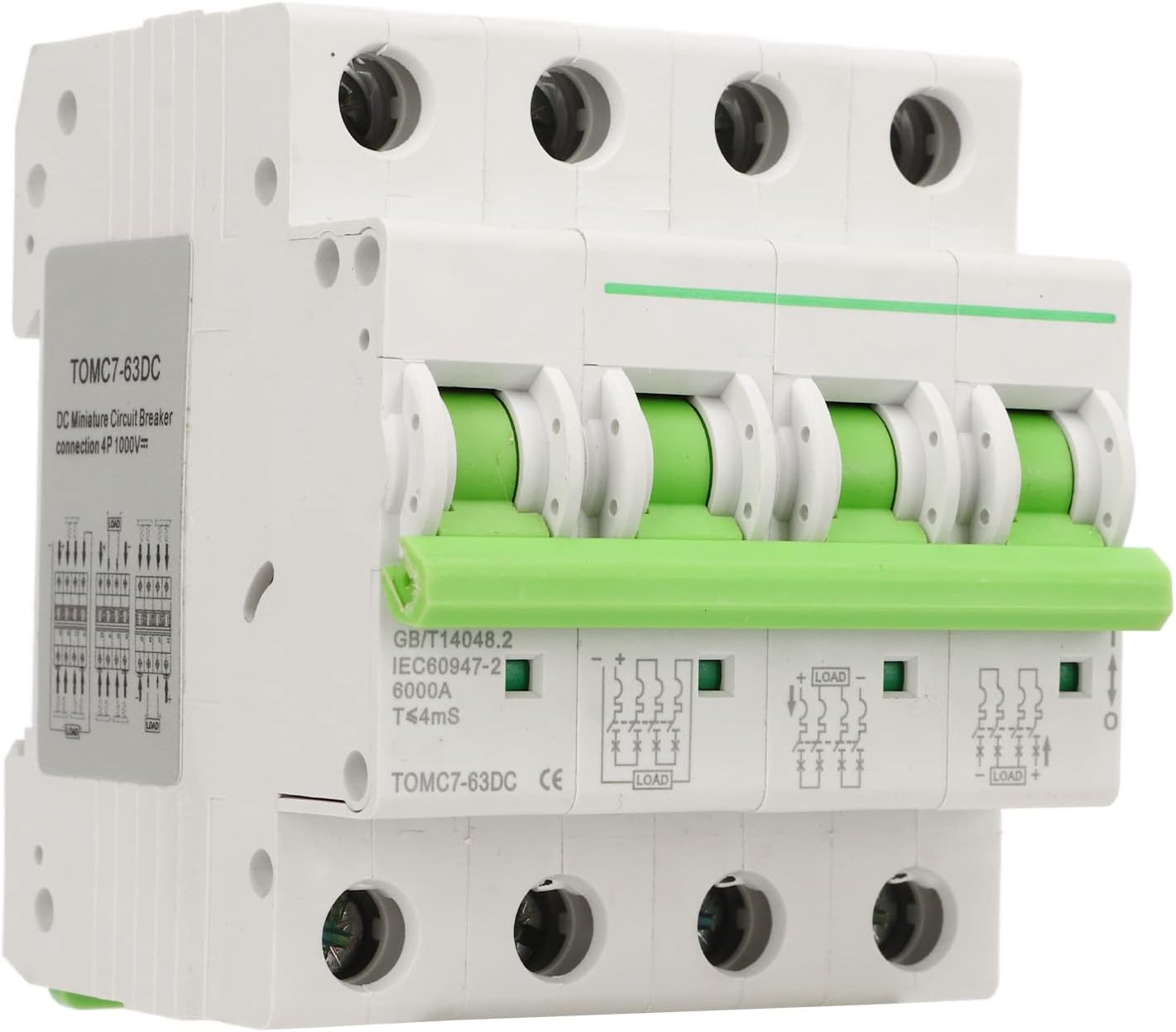

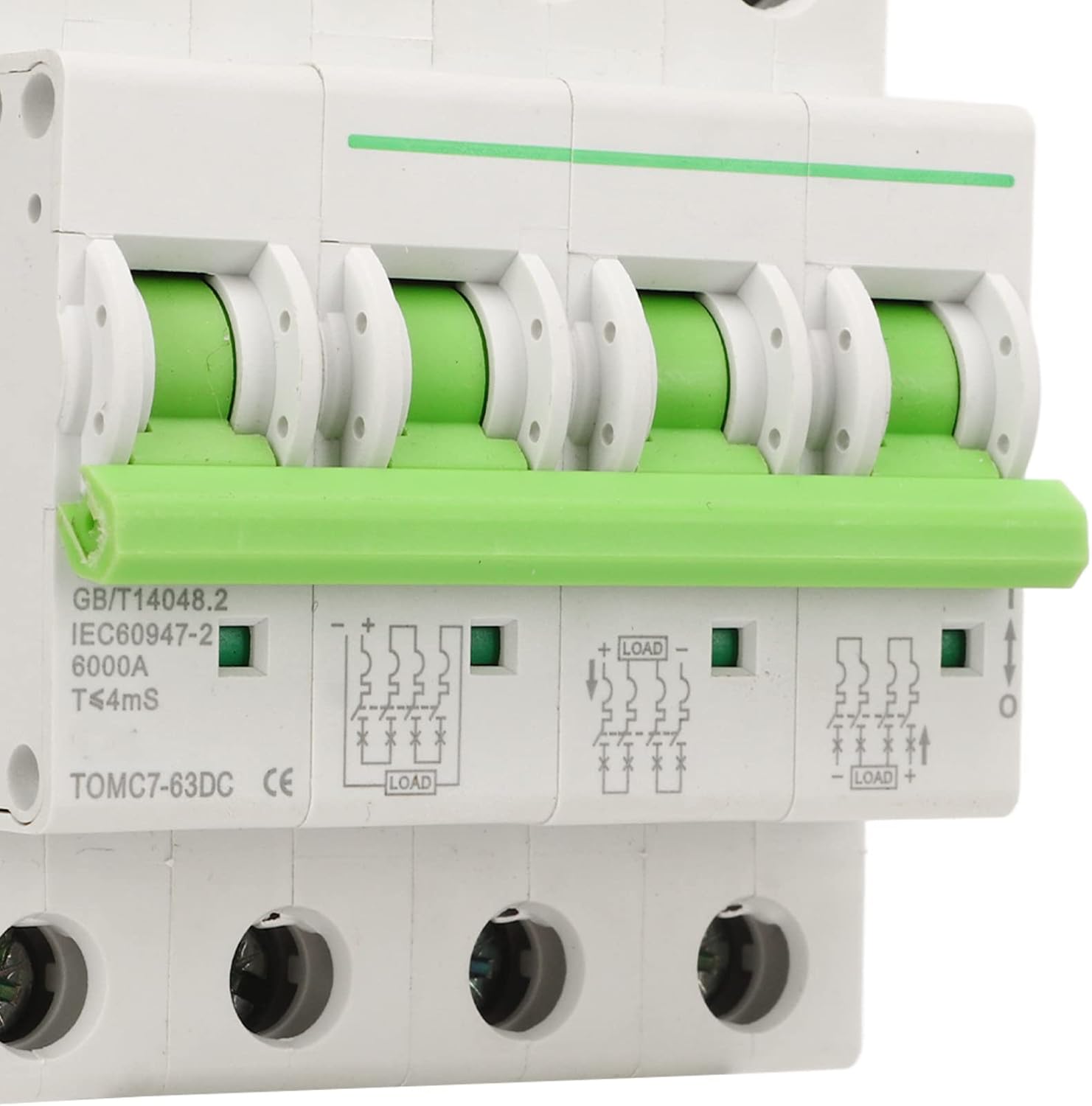

Macire 4 Pole DC Breaker – Premium DC MCB for Solar Photovoltaic and DC Systems

???? Protect Your Power Systems with Confidence! ????

Introducing the Macire 4 Pole DC Circuit Breaker, an innovative solution designed to ensure the safety and reliability of your solar photovoltaic (PV) systems, marine power systems, and other DC power applications. With advanced features, exceptional build quality, and a focus on safety, this DC MCB is your trusted partner in power distribution management. ????

???? Key Features:

⚡ Superior Overload & Short Circuit Protection:

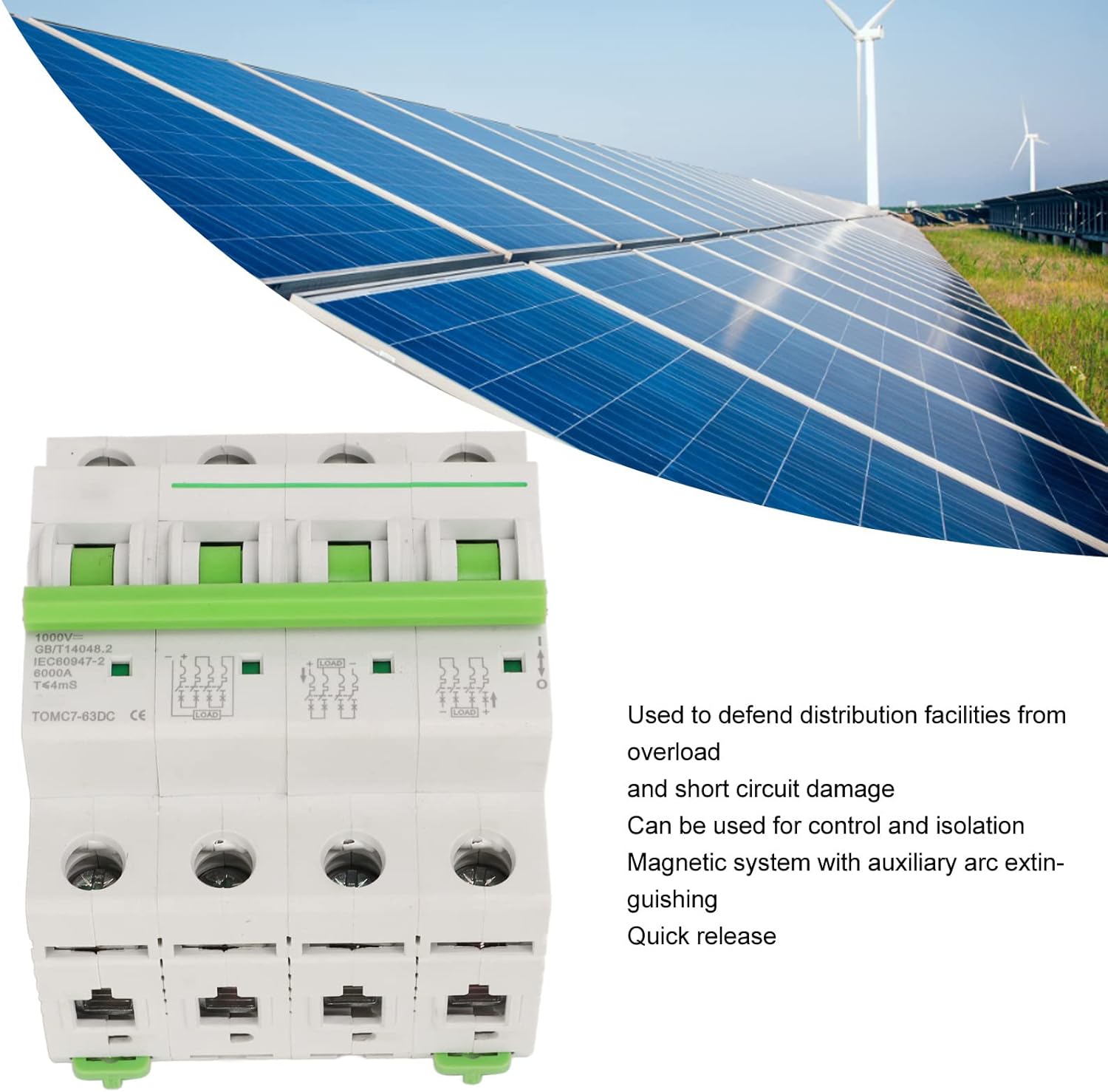

- Designed to safeguard your DC power distribution systems, the Macire 4P DC MCB protects against overload and short-circuit damage, ensuring your systems stay secure and operational.
- Acts as a reliable switch for DC load circuits.
???? Enhanced Arc Extinguishing System:
- DC arc extinguishing is notoriously challenging compared to AC systems. The Macire breaker incorporates a magnetic system for additional arc extinguishing, delivering consistent performance in even the most demanding environments.
???? Safe & Reliable Operations:
- Equipped with an electromagnetic trigger system that activates instantly during short circuits, protecting the circuit and extending the product’s lifespan.

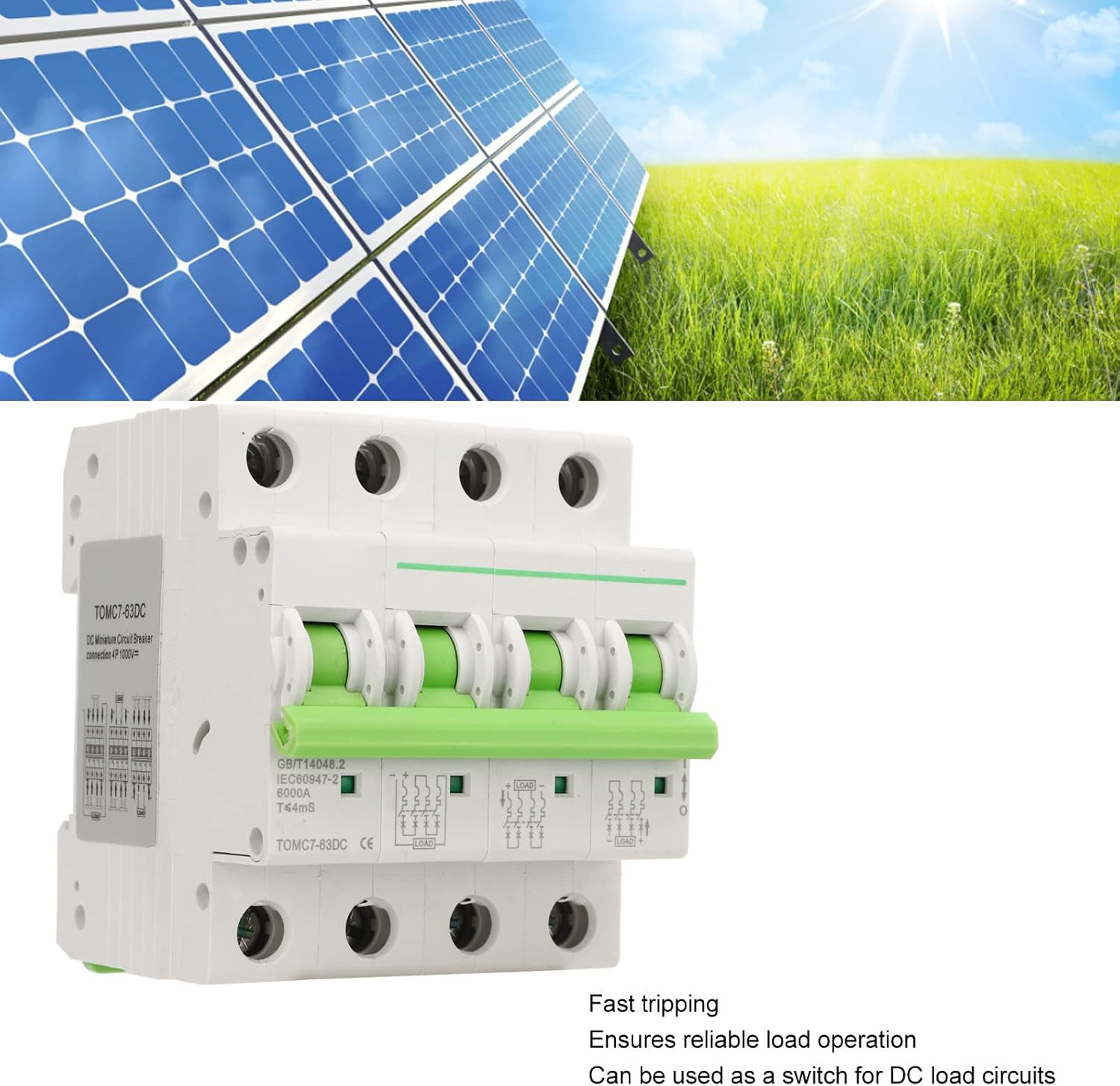

- Fast-trigger technology ensures precise and dependable operation of your load.
???? Wide Applications:

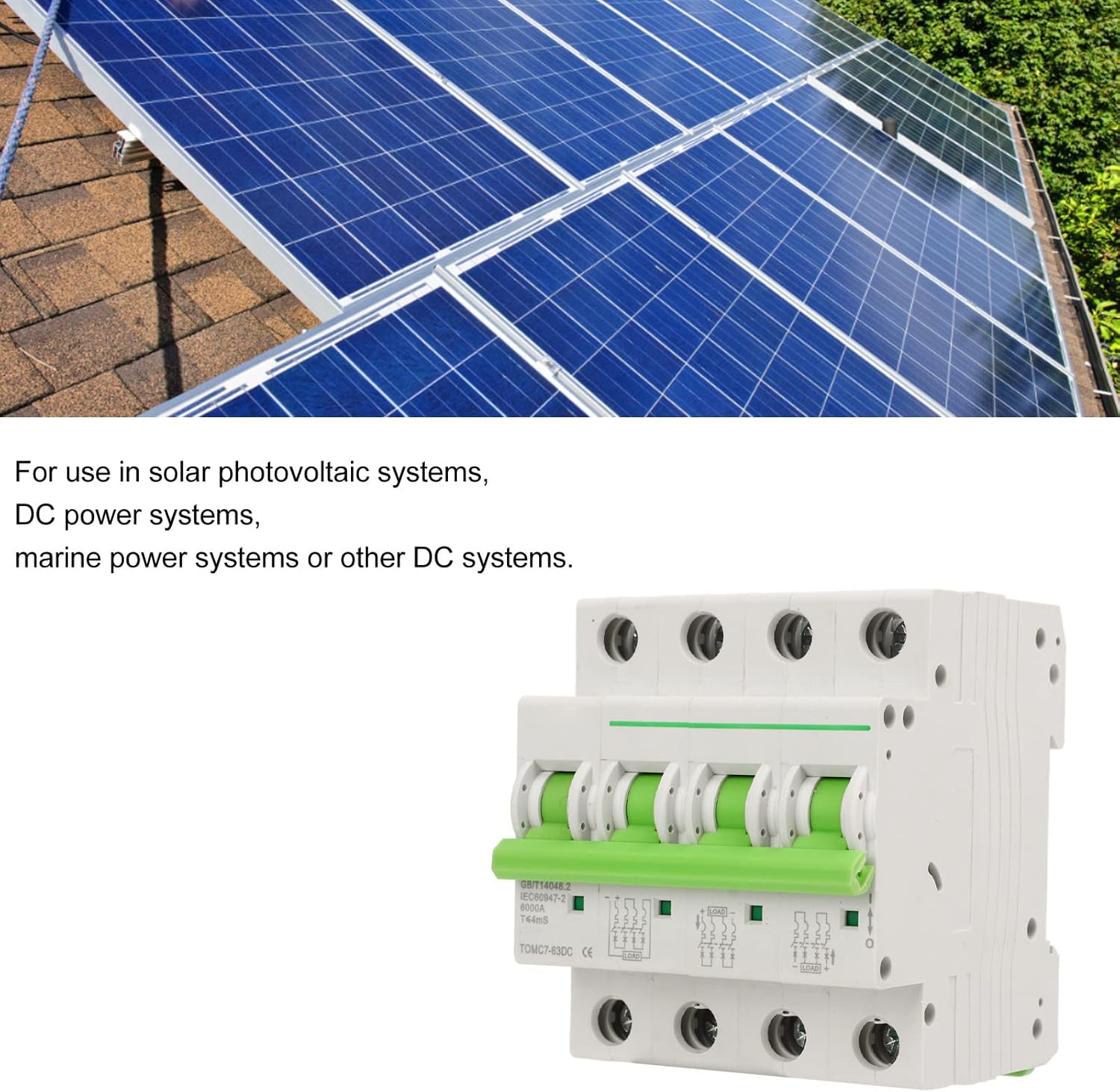

- Ideal for solar PV systems, DC systems, marine power systems, and other high-performance DC applications.
- Built for harsh environments with an operating temperature range of -20°C to +70°C and a relative humidity tolerance of up to 95%.
???? Easy Installation & Robust Design:
- Features a compact 4P design for easy installation on standard 35mm DIN rails.
- Built with high-grade PA material and conforms to IEC/EN60947 standards.
✅ Certified & Built to Last:
- With 6KA breaking capacity and C curve trip characteristics, this breaker delivers optimal protection.
- Designed for over 8,000 electrical operations and 20,000 mechanical cycles for long-lasting performance.

???? Technical Specifications:

Poles: 4P
Rated Operating Voltage: 1000V DC
Rated Current Options: 20A, 32A, 63A
Breaking Capacity: 6KA
Trip Type: Thermal Magnetic
Standards: IEC/EN60947
Protection Degree: IP20
Mechanical Life: >20,000 cycles
Electrical Life: >8,000 operations
Installation Altitude: Up to 2000m

???? Why Choose Macire DC MCB?

???? Tailored for renewable energy systems, especially solar PV applications.
????️ Backed by Macire’s commitment to quality, ensuring reliability and safety.
???? Comes with a comprehensive warranty and dedicated customer support.

???? Package Includes:

1 x Macire 4P DC Circuit Breaker
1 x User Manual

???? Note: Always follow installation guidelines provided in the manual to ensure optimal safety and performance.
