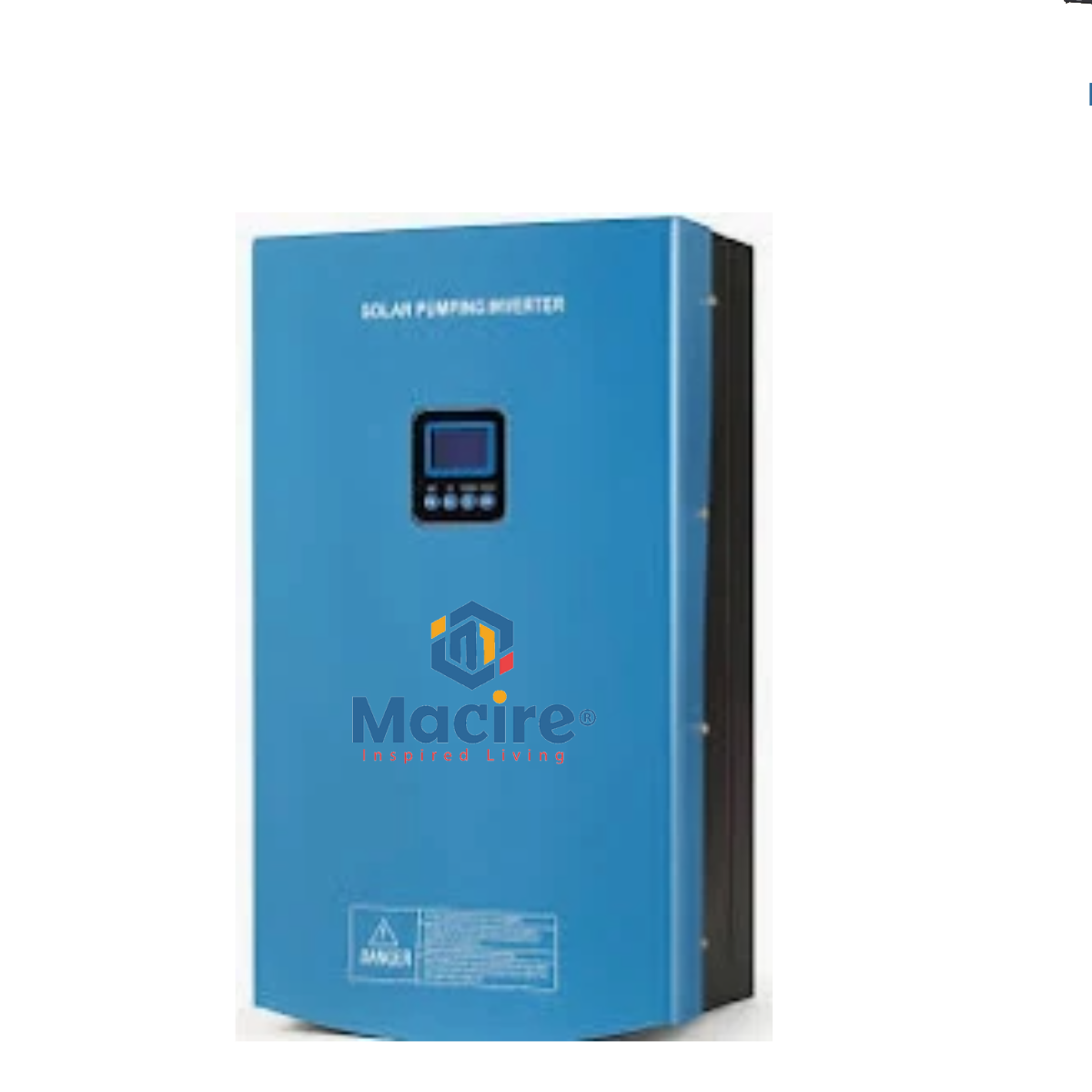

22Kw 3phase Hober Solar Pumping Hybrid Inverter – Advanced MPPT Technology

???? Macire Hober 22Kw 3-Phase Solar Pumping Inverter with Advanced MPPT Technology ????

Transform your pumping systems with the Macire Hober 22Kw Solar Pumping Inverter, the ultimate solution for efficient, eco-friendly water pumping. Designed for three-phase pumps, this high-performance inverter seamlessly converts DC power from solar panels into AC power while optimizing energy usage through advanced MPPT (Maximum Power Point Tracking) technology.

With its robust hybrid capabilities and intelligent automation, this inverter is engineered to handle the toughest pumping challenges, whether you’re drawing water from a borehole, powering irrigation systems, or managing industrial processes. ????

Key Features at a Glance ????

• ???? Efficient Energy Conversion: Converts DC to AC power with real-time frequency adjustments to maximize energy output.
• ⚡ High Power Output: Supports three-phase pumps with a maximum power of 22Kw (30HP).
• ???? Advanced MPPT Technology: Achieves a maximum MPPT efficiency of 99%, ensuring optimal performance of your solar panels.
• ???? Hybrid Functionality: Automatically switches between solar and AC power for uninterrupted operation during low solar conditions.
• ???? Water Level Monitoring: Includes borehole/tank sensors for intelligent water level management.
• ???? Remote Monitoring: Optional GPRS/SMS capabilities for remote control and diagnostics.
• ???? IP65 Protection: Dustproof and waterproof design, built to endure challenging environments.
• ❄️ Force Cooling Technology: Operates efficiently with fan-based cooling, even under extreme conditions.

Technical Specifications ????

Solar Panel DC Input

• Max Voc Voltage: 900V
• Min Vmp Voltage: 400V
• Recommended Vmp Voltage: ≥500V (Solar-only), ≥560V (Hybrid)
• Max Input Current: 70A

Hybrid AC/Generator Input

• Voltage: 3 Phase 380/400/440V
• Max Input Current: 54A

AC Output (For Pump)

• Drive Mode: Variable Frequency Drive (VFD)
• Max Output Voltage: 380/400/440V
• Max Output Frequency: 15-60Hz (programmable)
• Max Efficiency: 97%

Environmental Durability

• Operating Temperature: -10°C to 60°C (derate above 60°C)
• Humidity: Max 95%RH
• Altitude: Up to 3000m

Physical Details

• Weight: 27kg
• Dimensions: 630mm x 400mm x 330mm

Why Choose Macire Hober Solar Pump Inverter? ????

• Eco-Friendly: Reduce reliance on traditional energy sources while contributing to sustainability. ????
• Cost-Effective: Slash energy costs by utilizing renewable solar power. ????
• Reliable Performance: Built for durability and consistent operation in diverse conditions. ????️
• Free Delivery in Nairobi: Enjoy hassle-free delivery in Zone A and affordable rates elsewhere in Kenya. ????

Applications

✅ Borehole water pumping
✅ Irrigation systems for farms and gardens
✅ Industrial and commercial water pumping
✅ Community water supply systems

???? Upgrade your water pumping system today with the Macire Hober 22Kw Solar Pumping Inverter. Experience efficiency, reliability, and sustainability like never before. ????????
