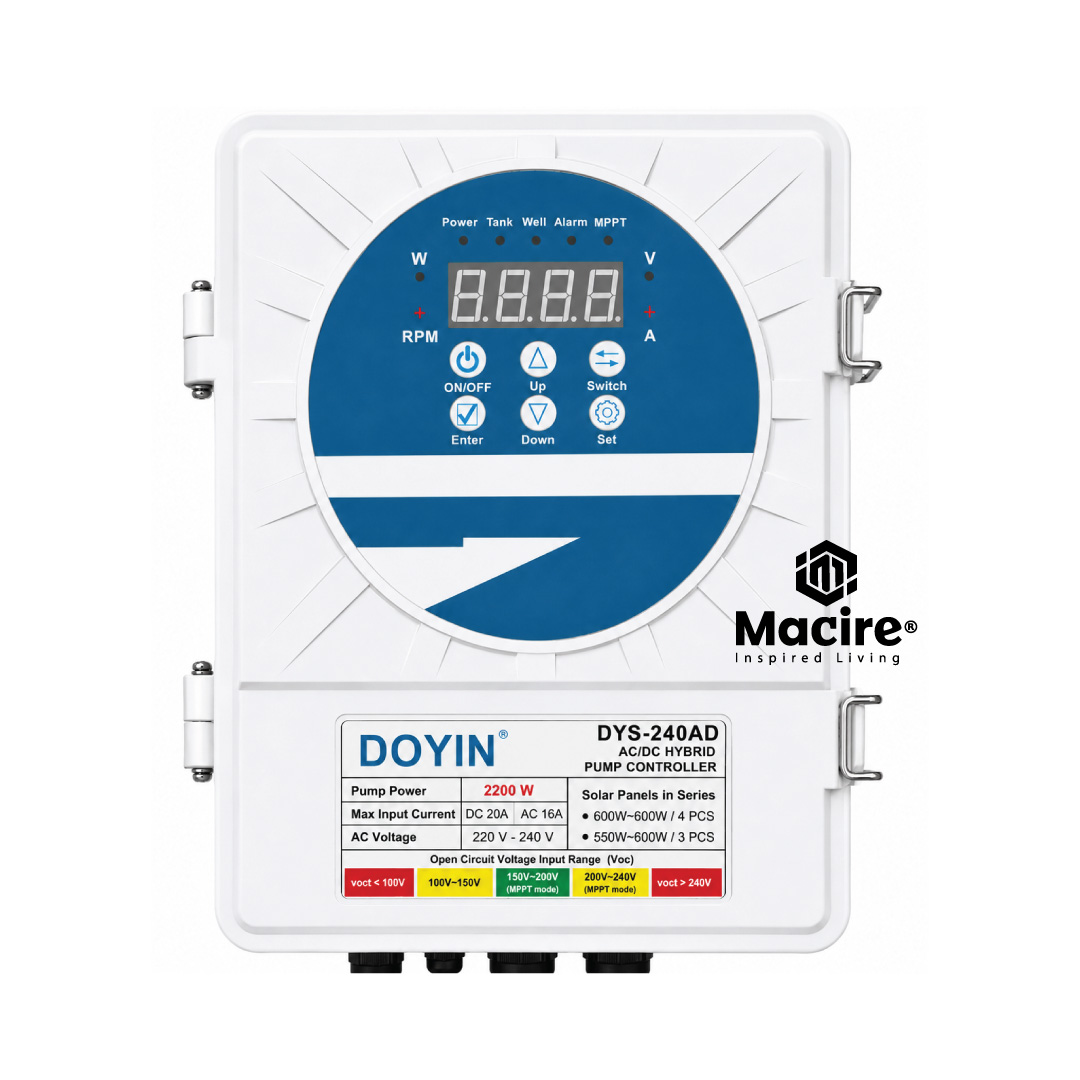

2200W Doyin DYS-240AD AC/DC Hybrid Pump Controller – Solar/AC Input, Automatic Control, Pump Protection

Product Overview

The 2200W Doyin DYS-240AD AC/DC Hybrid Pump Controller is designed to manage compatible water-pumping systems rated up to 2200W, providing flexible operation from solar DC power and AC electricity. Its hybrid architecture makes it particularly useful for borehole, irrigation, livestock and water-storage applications where solar power is preferred during daylight hours while AC power provides an alternative energy source when required.

The controller manages pump operation while providing essential electrical protection for a correctly matched pumping system. Automatic control capability also helps reduce the need for continuous manual pump switching when suitable sensors and accessories are installed.

Macire supplies the Doyin DYS-240AD with technical guidance for correct pump, controller and power-source matching. Proper sizing is recommended before installation to ensure reliable operation and protect connected equipment.

⭐ Genuine Product | Verified & Supported by Macire

System Architecture & Configuration

Hybrid AC/DC Operation

Supports hybrid pumping configurations using solar DC energy and compatible AC power, improving pumping flexibility where sunlight availability varies.

2200W Pump Control

Designed for correctly matched 2200W Doyin pumping systems, providing controlled power delivery and operational management.

Automatic Pump Management

Can form part of an automated water-pumping setup using compatible water-level sensing and control accessories.

Protection & Control

Provides centralised electronic management between the available power source and connected pump, helping improve safe and dependable operation.

Technical Specifications

Exact electrical input/output limits should be confirmed from the controller nameplate or manufacturer documentation before installation.

Key Features

• 2200W pump-control capacity
• AC/DC hybrid power operation
• Supports solar-powered water pumping
• Allows AC power operation when appropriately configured
• Designed for compatible Doyin pumping systems
• Supports automatic pumping configurations
• Helps manage pump operation and electrical protection
• Suitable for borehole and irrigation installations
• Reduces dependence on a single power source
• Technical sizing and installation support available through Macire

Applications / Use Cases

• 🚜 Farms – irrigation and livestock watering
• 💧 Boreholes – automatic underground water pumping
• 🏠 Homes – tank filling and domestic water supply
• 🏢 Commercial Properties – water transfer and storage
• 🌱 Irrigation Systems – solar-assisted agricultural pumping
• 🏥 Institutions – water-storage and supply systems

Installation & Engineering Notes

The DYS-240AD should be installed in a dry, adequately ventilated and protected location. The connected pump must be correctly matched to the controller’s rated capacity.

Solar-array voltage and power, AC supply parameters, cable sizing, earthing and protection devices should be verified before commissioning. Compatible level sensors can be incorporated where automatic tank or borehole level control is required.

Macire can provide technical guidance when matching the controller with the pump, solar array and associated protection equipment.

Care, Maintenance & Operations

• Keep the controller protected from direct water exposure.
• Maintain adequate ventilation around the unit.
• Inspect electrical terminals periodically.
• Keep solar and pump cables securely terminated.
• Check sensors and automatic controls periodically.
• Ensure the connected pump remains within the controller’s supported rating.
• Have electrical faults inspected by a qualified technician.
• Contact Macire for technical support and compatible accessories.

Do’s & Don’ts

Do’s

• Use a correctly rated 2200W compatible pump.
• Confirm solar-array electrical parameters before connection.
• Provide proper earthing.
• Install suitable electrical protection.
• Keep the controller dry and ventilated.
• Use appropriately sized cables.

Don’ts

• Do not connect an oversized pump.
• Do not exceed the controller’s specified input limits.
• Do not install in an exposed wet location.
• Do not operate with loose electrical terminals.
• Do not bypass recommended protection devices.
• Do not modify internal electronics without qualified technical support.

Compatibility

The Doyin DYS-240AD can be integrated with appropriately matched:

• 2200W Doyin water pumps
• Solar PV arrays
• Compatible AC power supplies
• Borehole water-level sensors
• Tank level sensors
• Float switches
• Electrical protection devices
• Pump distribution and control systems

Final compatibility should be verified against the pump and controller nameplate specifications.

Performance / Operating Mode

Actual pumping performance is determined primarily by the connected pump, borehole head, pipework, available solar power and installation conditions.

Mini FAQ

1. What pump size is suitable for the DYS-240AD?
It is intended for a correctly matched pumping system rated around 2200W. Pump electrical specifications should be verified before connection.

2. Can it operate using solar power?
Yes. The DYS-240AD is an AC/DC hybrid controller designed to support solar-powered pumping.

3. Can it work automatically?
Yes, when configured with compatible water-level or tank-control sensors.

4. Does Macire provide installation support?
Yes. Macire can provide technical guidance on controller, pump, solar-array and accessory matching.

5. Is nationwide delivery available?
Macire can arrange delivery to customers across Kenya, subject to destination and delivery terms.

Why Buy from Macire

Macire supplies genuine Doyin pumping equipment and accessories.
Products are verified before dispatch.
Technical guidance is available for pump and controller matching.
Support is available for solar-array sizing and system configuration.
Compatible pump accessories can be supplied.
Professional installation guidance is available.
After-sales technical support is provided.
Delivery can be arranged across Kenya.
Macire supports both domestic and commercial water-pumping projects.
