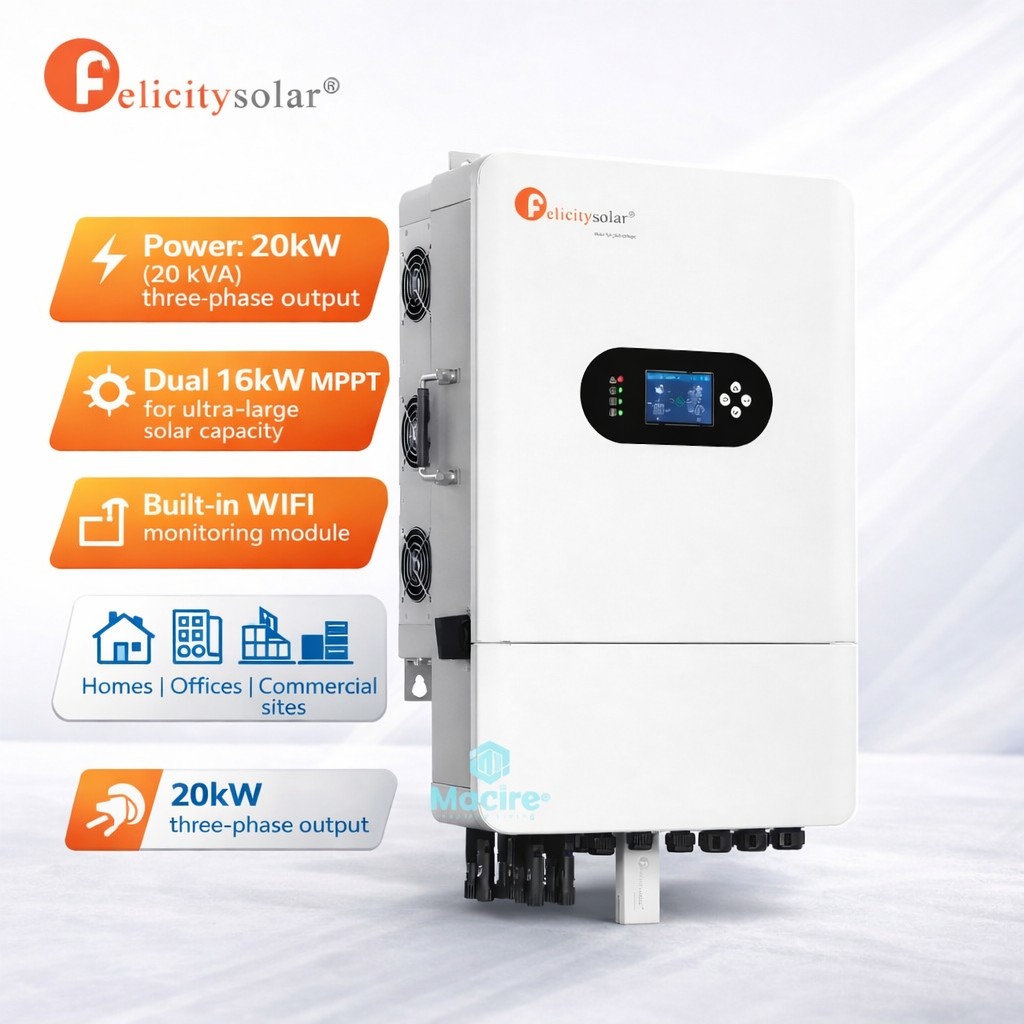

20kW Felicity Low Voltage Hybrid Inverter – Three Phase, Ultra High-Capacity Dual MPPT, WiFi Monitoring, On/Off-Grid Ready

The 20kW Felicity Low Voltage Hybrid Inverter is a top-tier, three-phase solar power solution engineered for large commercial, industrial, and institutional installations across Kenya. Designed for on-grid, off-grid, and hybrid operation, this inverter delivers stable three-phase power capable of supporting heavy electrical loads and mission-critical systems.

Built on a 48V low-voltage battery architecture, the inverter integrates dual 16kW MPPT solar inputs, allowing extremely flexible PV string design and maximum solar energy harvesting. With a wide PV input voltage range of 160–650V DC per MPPT and a high PV input current of 36A + 36A, it comfortably supports large-scale solar arrays.

The integrated WiFi monitoring module enables real-time performance tracking, system diagnostics, and remote management. Supplied and supported by Macire, each unit is verified for Kenyan grid conditions, electrical safety, and long-term operational reliability.

⭐ Genuine Product | Macire Verified | Warranty Supported

System Architecture & Configuration

Inverter & Power System

Ultra high-capacity 20kW hybrid inverter platform
48V low-voltage battery system architecture
True three-phase AC output
Supports on-grid, off-grid, and hybrid operating modes

Solar Charging & MPPT

Dual independent MPPT solar chargers
2 × 16kW MPPT channels
Wide PV voltage window (160–650V DC per MPPT)
High PV current handling capacity (36A + 36A)

Monitoring & Control

Integrated WiFi monitoring module
Remote monitoring, diagnostics, and alerts
Advanced energy management and three-phase load optimisation

???? Technical Specifications (Summary)

???? Key Features

Ultra high-capacity 20kW three-phase power output
48V low-voltage battery compatibility
Dual 16kW MPPT for very large solar arrays
Wide PV voltage range for flexible string design
High PV current handling for dense panel layouts
Built-in WiFi monitoring and diagnostics
Supports grid-tied and fully off-grid operation
Stable output for sensitive and motor-driven loads
Designed for scalable energy systems
Macire-tested for demanding Kenyan operating conditions

???? Applications / Use Cases

???? Industrial facilities & factories
???? Large commercial buildings & office parks
???? Universities, colleges & institutions
???? Hospitals and healthcare facilities
???? Malls, hotels & mixed-use developments
???? Large estates and gated communities

???? Installation & Engineering Notes

Designed for 48V battery banks
Three-phase load balancing is critical
PV string configuration must comply with MPPT limits
Surge protection and proper earthing are mandatory
Macire provides system design, installation guidance, and commissioning support

???? Care, Maintenance & Operations

Maintain clean, dust-free inverter environment
Inspect DC and AC terminals periodically
Monitor system health via WiFi dashboard
Check battery health and alerts regularly
Avoid exceeding inverter or PV limits
Scheduled inspections recommended by Macire technicians

⚠️ Do’s & Don’ts

✅ Do’s

Do use compatible 48V lithium or lead-acid batteries
Do design PV arrays within MPPT voltage and current limits
Do balance three-phase loads correctly
Do install certified surge protection and grounding
Do follow Macire technical guidelines

❌ Don’ts

Don’t overload beyond rated inverter capacity
Don’t mix incompatible battery technologies
Don’t obstruct ventilation or cooling paths
Don’t bypass protective devices
Don’t ignore system warnings or alarms

???? Compatibility Section

Compatible with:

48V lithium and lead-acid battery systems
High-voltage solar panel strings (within MPPT range)
Three-phase electrical distribution systems
Macire solar panels, batteries, and protection accessories

???? Performance / Load Handling Overview

❓ Mini FAQ

Q1: Is this inverter suitable for industrial applications?
Yes. It is designed for high-load commercial and industrial systems.

Q2: Can it operate fully off-grid?
Yes. It supports full off-grid, on-grid, and hybrid configurations.

Q3: Does it include WiFi monitoring?
Yes. WiFi monitoring is built in as standard.

Q4: What battery voltage does it require?
It operates on a 48V low-voltage battery system.

Q5: Do you offer delivery and technical support nationwide?
Yes. Macire provides Kenya-wide delivery and technical support.

???? Why Buy from Macire

Genuine Felicity hybrid inverters only
Macire verification before dispatch
Kenya-wide delivery via Macire Logistics
Expert system sizing and engineering support
Professional installation guidance
Reliable after-sales service and warranty support
Trusted by commercial and industrial clients
Proven performance in Kenyan conditions

Macire – Inspired Living. ✨
