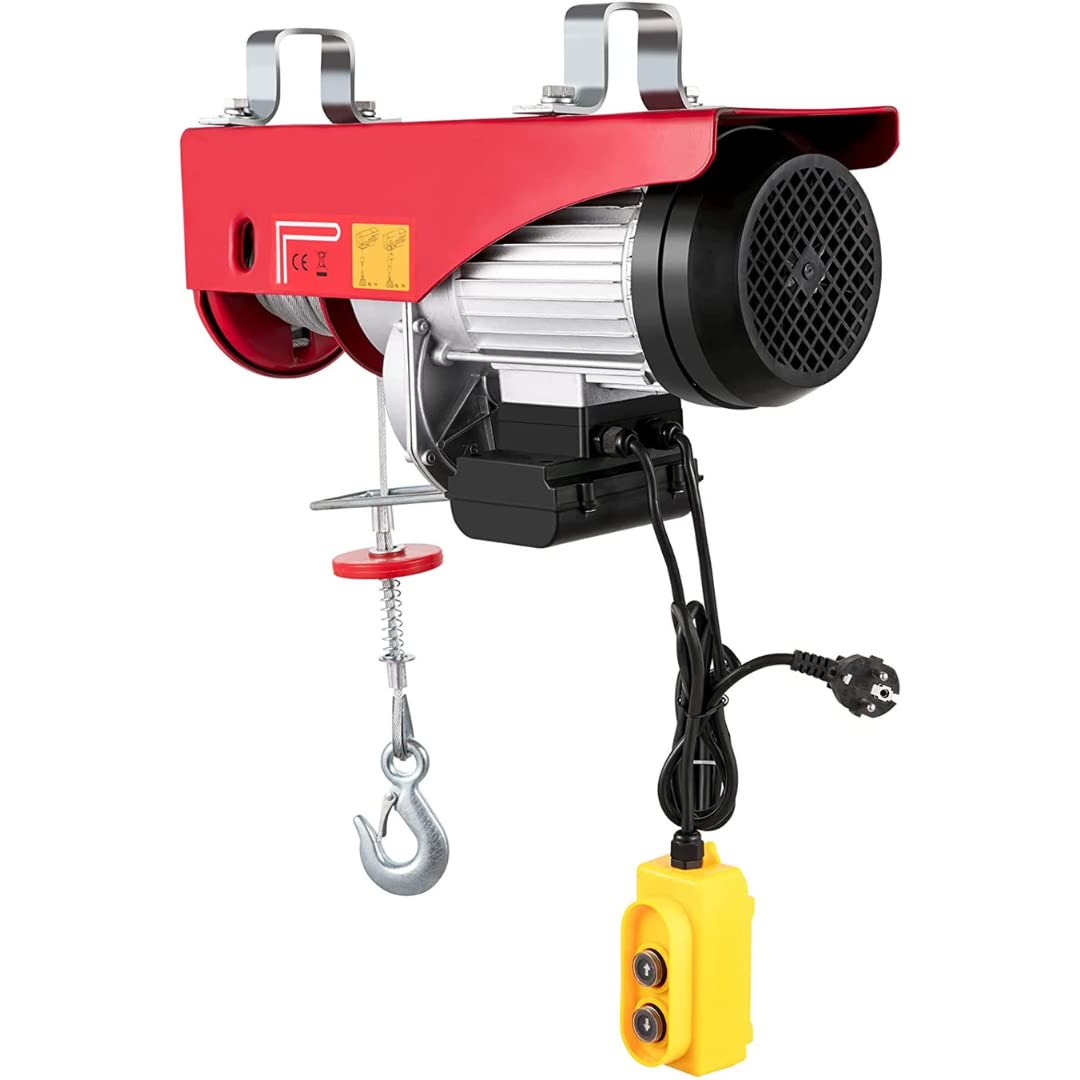

The 1Ton Toller Electric Hoist PA1000 is a heavy-duty lifting machine designed for safe and efficient material handling in warehouses, workshops, construction sites, factories, and industrial facilities.

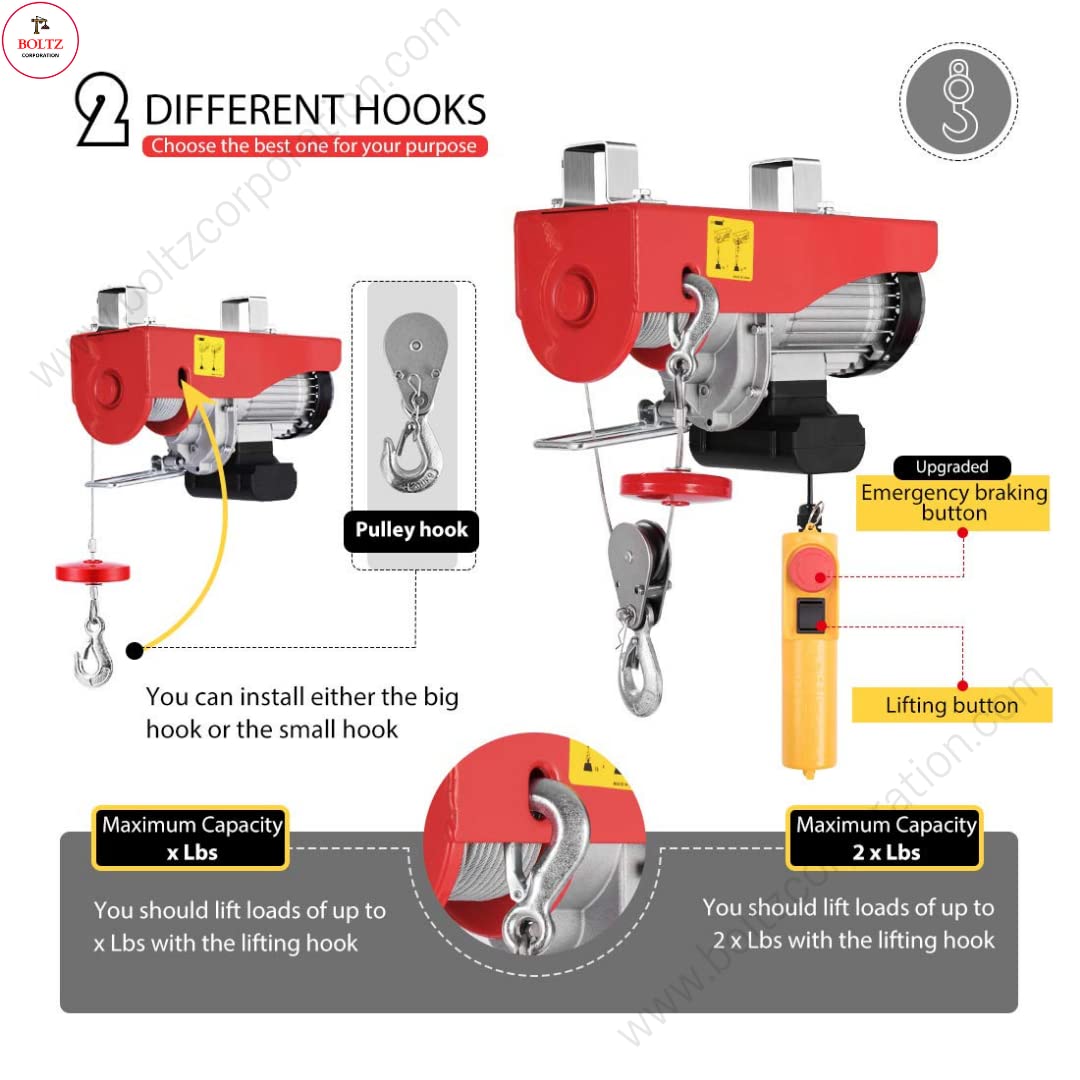

Powered by a 2000W high-performance copper motor, this electric hoist delivers reliable lifting strength and stable operation even under demanding working conditions. It features a dual lifting system, allowing operators to lift 500kg using a single line or up to 1000kg using a double-line configuration, making it suitable for a wide range of lifting tasks.

The hoist is built with a durable alloy motor housing and galvanized steel wire rope, ensuring resistance to corrosion, wear, and heavy operational loads. A built-in limit switch and buffer spring safety system automatically stops the hoist to prevent over-lifting or cable damage.

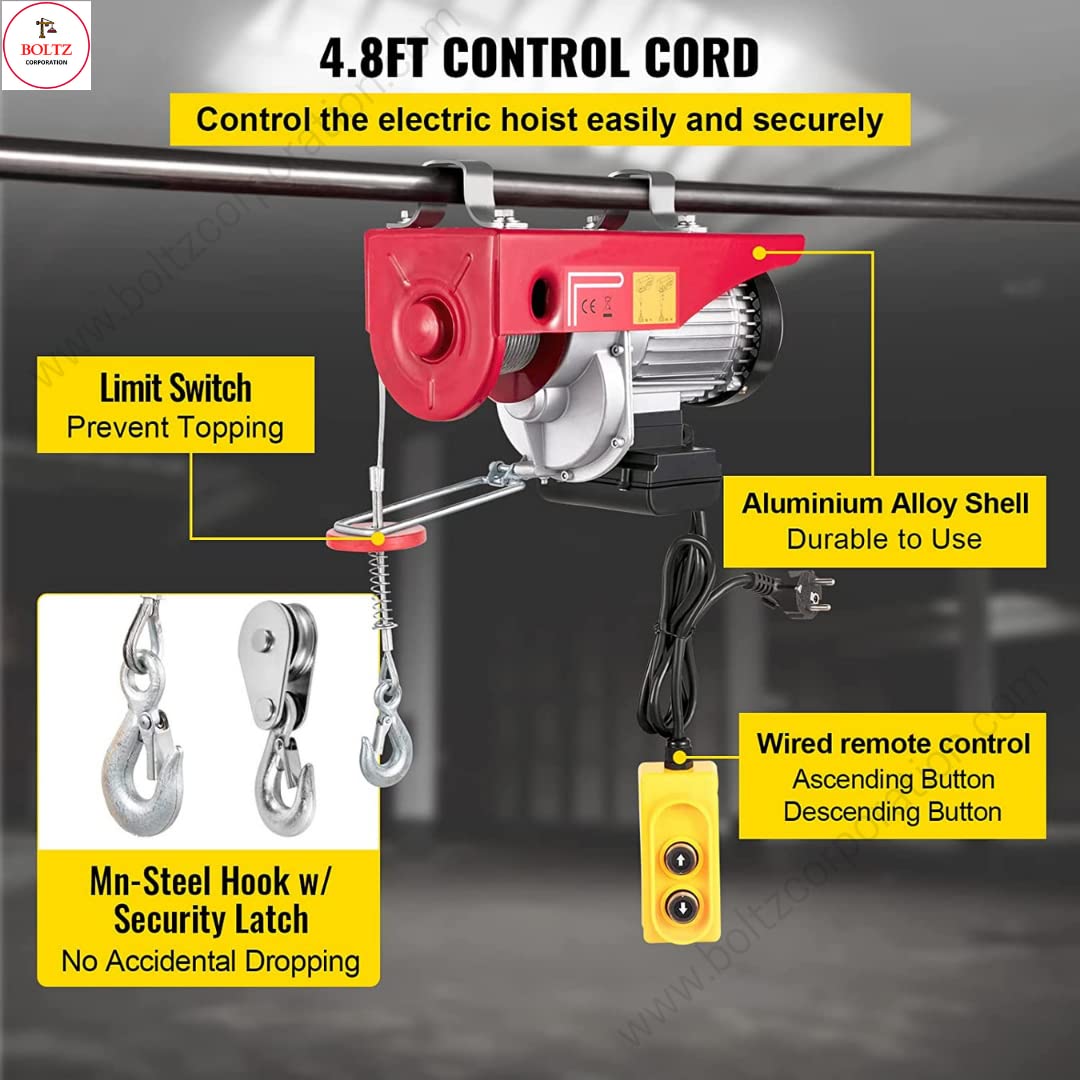

Equipped with a remote control handle with a 4.6ft control cord, the machine allows operators to control lifting safely from a distance. The 18m lifting cable provides excellent vertical reach for warehouses, workshops, and building sites.

Every hoist supplied by Macire is checked before dispatch to ensure reliable performance for professional lifting operations.

⭐ Heavy-Duty Electric Hoist | Industrial Lifting Power | Verified & Supported by Macire

System Architecture & Configuration

Lifting System

Electric wire rope hoist mechanism

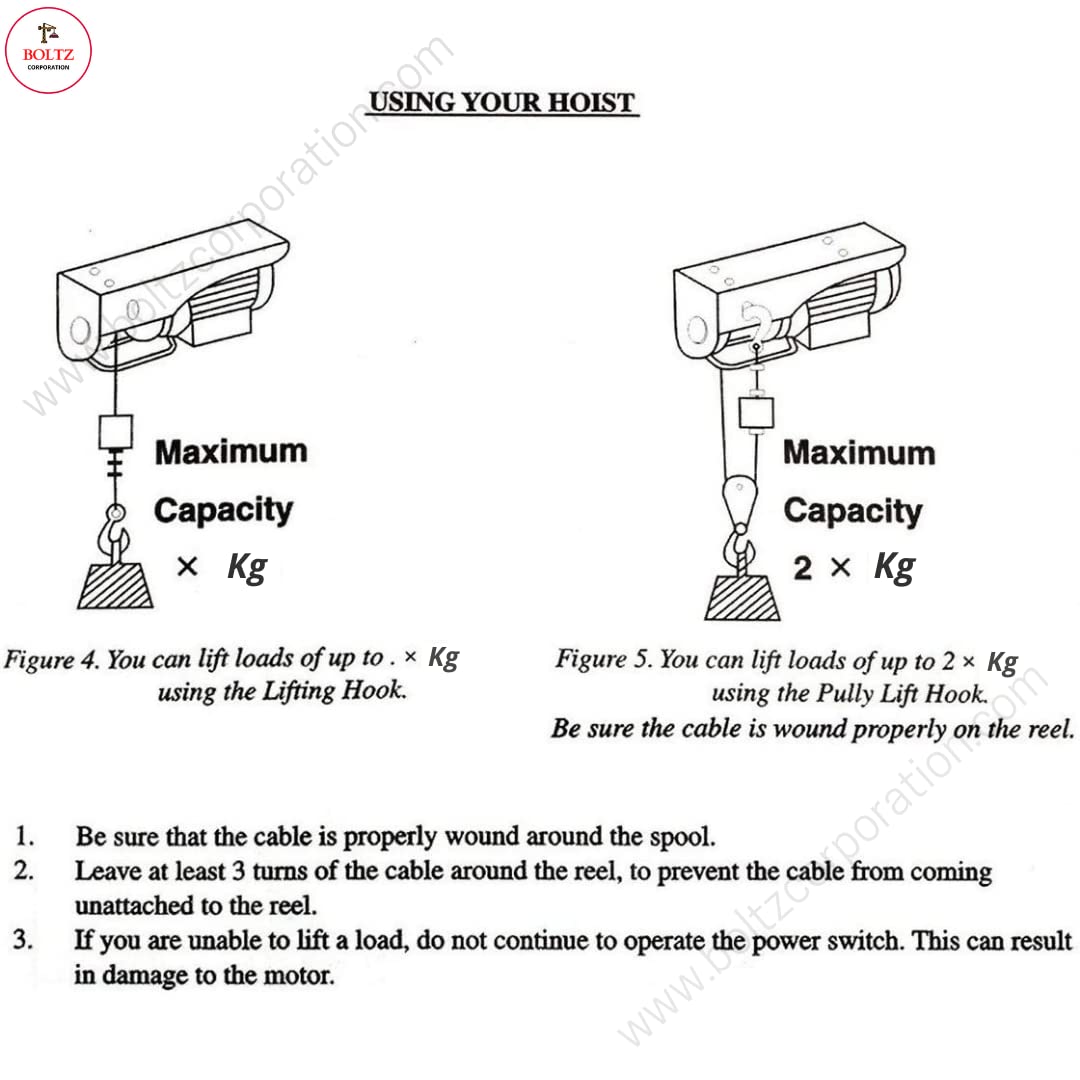

Single-line and double-line lifting configuration
Heavy-duty steel hook with safety latch
Industrial lifting motor drive system
Stable cable lifting mechanism

Machine Components

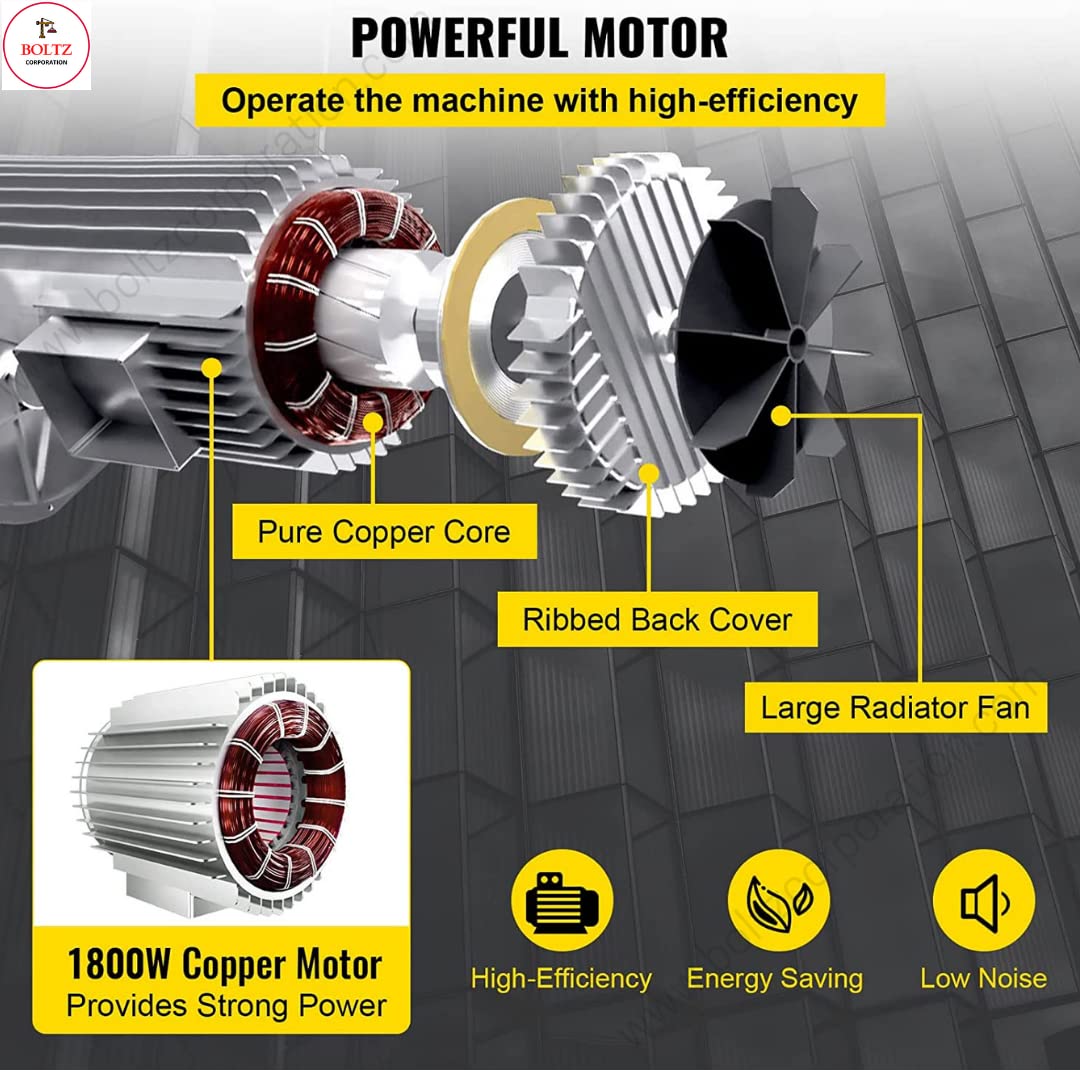

High-performance 2000W copper motor
Galvanized steel lifting cable
Durable alloy motor housing
Integrated safety limit switch system
Remote control handle with cable

Safety System

Automatic limit switch protection
Buffer spring anti-drop protection
Secure hook safety latch
Stable lifting cable system
Controlled motor lifting operation

Technical Specifications (Summary)

Key Features

Powerful 2000W copper motor lifting system
Heavy-duty 1000kg lifting capacity
Dual lifting modes (500kg single / 1000kg double line)
Durable galvanized steel lifting cable
Industrial alloy motor housing construction
Remote control lifting operation
Integrated limit switch safety system
Buffer spring anti-drop protection
Long 18m lifting cable reach
Verified and supported by Macire

Applications / Use Cases

???? Industrial factories
???? Construction sites
???? Warehouse material lifting
???? Automotive workshops
???? Commercial storage facilities
???? Hospitals and technical facilities
???? Municipal maintenance works
⚙ Engineering and mechanical workshops

Installation & Engineering Notes

Install hoist on a secure overhead beam or lifting frame
Ensure structure supports the rated lifting load
Connect machine to stable electrical supply
Ensure cable path is free from obstruction
Do not exceed rated lifting capacity
Operators should follow industrial safety procedures

Macire can provide guidance on safe equipment usage.

Care, Maintenance & Operations

Inspect lifting cable regularly
Lubricate moving mechanical parts
Clean hoist body to prevent debris buildup
Inspect electrical cable connections
Avoid overloading the hoist
Check hook safety latch before lifting
Store equipment in dry environment

Do’s & Don’ts

Do’s

Use within rated lifting capacity
Ensure load is securely attached
Operate hoist from safe distance
Inspect cable before operation
Use correct mounting structure

Don’ts

Do not exceed lifting capacity
Do not lift unstable loads
Do not operate with damaged cable
Do not operate without safety latch
Do not overload the motor

Compatibility

Compatible with:

Overhead beam lifting systems
Warehouse lifting frames
Construction lifting rails
Material handling cranes
Industrial lifting accessories
Macire construction equipment

Performance / Operational Guide

Performance may vary depending on installation and load conditions.

Macire – Inspired Living. ✨
