11Kw 3phase Veichi Solar Pumping Hybrid Inverter – Advanced MPPT Technology

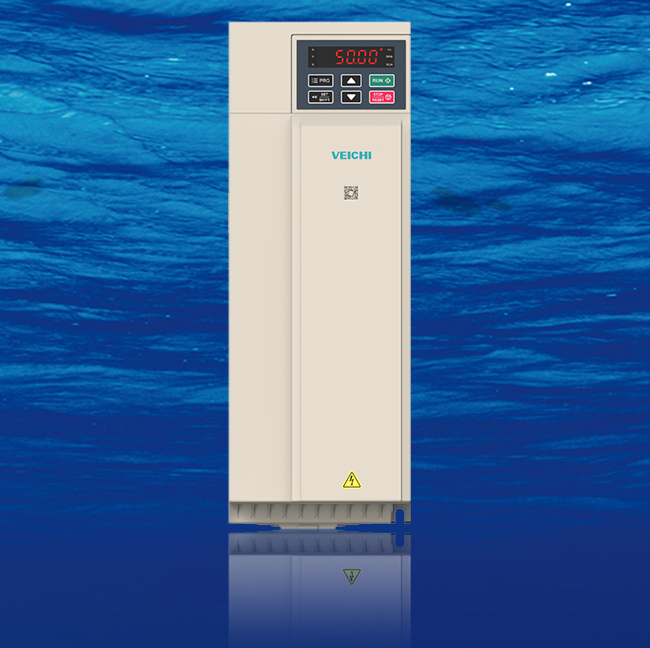

11kW 3-Phase VEICHI Solar Pumping Hybrid Inverter – Advanced MPPT Technology

???? Revolutionize Your Water Pumping System with VEICHI Solar Pumping Hybrid Inverter! ????
The 11kW 3-Phase VEICHI Solar Pumping Hybrid Inverter, now available at Macire, is a game-changer for irrigation, water supply, and sustainable power management. Combining cutting-edge MPPT (Maximum Power Point Tracking) technology and hybrid AC/DC input, this inverter delivers unmatched performance, energy efficiency, and durability.

Why Choose the VEICHI Solar Pumping Hybrid Inverter? ????????

✅ High-Efficiency MPPT Technology

• Achieves up to 99.9% MPPT efficiency, maximizing solar energy utilization for optimal water pumping.
• Ensures real-time frequency adjustments to suit various pumping requirements.

✅ Advanced Hybrid Operation

• Supports both solar (DC) and grid (AC) power inputs, ensuring uninterrupted operation even during low sunlight conditions.
• Perfect for off-grid and on-grid setups alike!

✅ Robust Design for Long Life

• Narrow-body book-style structure saves up to 60% installation space while ensuring efficient heat dissipation.
• IP20-rated protection, making it ideal for outdoor environments with temperatures ranging from -10°C to 60°C.

✅ Intelligent IoT Integration ????

• Equipped with big data remote monitoring for real-time updates on performance metrics like power generation and water flow.
• Compatible with GPS, WiFi, and GPRS modules for seamless connectivity and diagnostics.

✅ Comprehensive Pump Protection

• Features dry-run protection, overcurrent safeguards, and low-frequency protection to extend the life of your water pump.

✅ Universal Compatibility

• Compatible with a wide range of motors, including synchronous, asynchronous, and single-phase setups.
• Suitable for various applications:
  • Farmland irrigation ????
  • Swimming pool water supply ????‍♀️
  • Landscape fountains ⛲
  • Residential water systems ????

Key Features at a Glance ????️✨

• Power Range: 11kW with robust 3-phase output (380VAC).
• Input Voltage: DC250-780V, offering flexibility for diverse setups.
• Frequency Range: 0-320Hz with customizable options.
• Cooling Method: Natural and forced air cooling for efficient heat management.
• Remote Monitoring: Easy debugging and parameter adjustments via VEICHI Virtual Oscilloscope.
• International Certifications: CE-compliant, meeting stringent IEC and EN standards.

Built for Durability & Efficiency ????????

At Macire, we understand the importance of reliability in your equipment. The VEICHI Solar Pumping Hybrid Inverter is crafted with premium components and a state-of-the-art control algorithm, ensuring:

• Precise motor control and reduced energy losses.
• Enhanced environmental resistance with isolated air duct design.
• Seamless operation even in harsh conditions.

Technical Specifications ????

• Rated Power: 11kW
• Input Voltage: DC250-780V
• Output Voltage: 3-phase 380-460VAC
• MPPT Efficiency: 99.9%
• Overload Capacity: 150% for 1 min, 180% for 10s, 200% for 0.5s
• Protection Features: Overvoltage, undervoltage, dry-run, and phase-loss protection.
• Weight: Lightweight, easy-to-install design.

Why Buy from Macire?

When you choose Macire, you’re not just buying a product—you’re investing in reliable performance and unmatched customer support. Let us help you achieve energy-efficient, sustainable solutions for your water pumping needs. ????????
