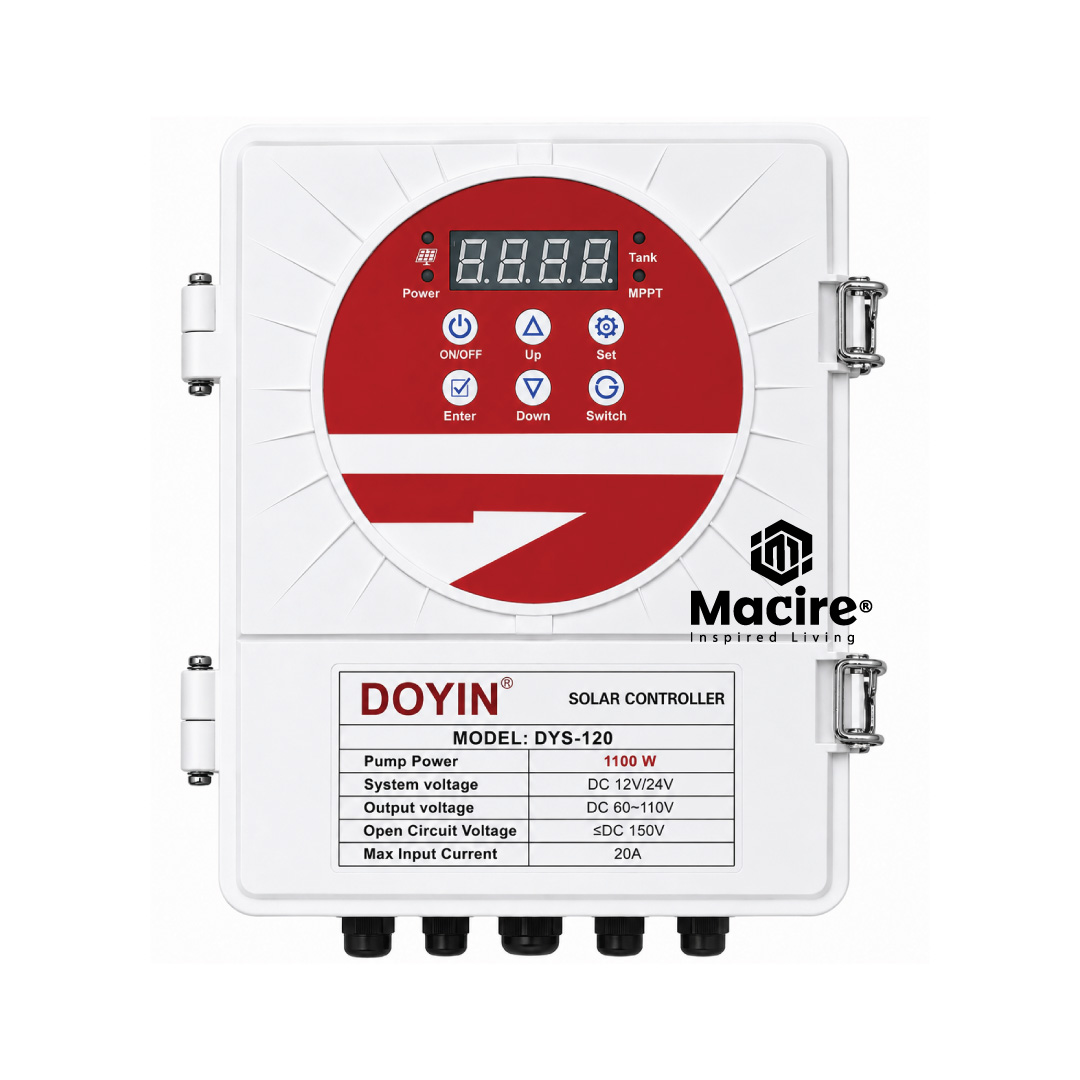

1100W Doyin DYS-120 DC Solar Pump Controller – MPPT Control, Dry-Run Protection, Automatic Operation

Product Overview

The 1100W Doyin DYS-120 DC Solar Pump Controller is designed to manage and protect compatible DC solar water pumps rated up to 1100W. It regulates power supplied from the solar PV array to the pump, helping maintain efficient water pumping as available solar energy changes throughout the day.

Its control system is particularly useful for borehole, irrigation, livestock and remote water-supply installations where direct solar pumping is preferred. Integrated operating protections help safeguard the pump and controller against common abnormal operating conditions, while automatic operation reduces the need for continuous manual control.

Macire supplies the Doyin DYS-120 for correctly matched Doyin solar pumping systems and can provide guidance on pump, controller and solar-panel sizing for Kenyan installations.

⭐ Genuine Product | Verified & Supported by Macire

System Architecture & Configuration

DC Solar Input

Designed to receive DC power from a correctly sized solar PV array.

Pump Control

Manages the operation of compatible DC solar pumps up to the controller’s 1100W rating.

MPPT Operation

Optimises available solar energy to support effective pump operation under changing sunlight conditions.

Protection System

Provides operating protection against conditions such as dry running, abnormal voltage and excessive electrical load, subject to the controller configuration.

Technical Specifications

Key Features

• 1100W controller capacity for compatible DC solar pumps.
• MPPT technology for improved utilisation of available solar power.
• Automatic pump operation based on available solar energy.
• Dry-run protection helps protect the pump when the water source is insufficient.
• Electrical protection for safer pump operation.
• Designed specifically for solar-powered water pumping.
• Suitable for off-grid installations without dependence on mains electricity.
• Compact controller configuration for straightforward system integration.
• Compatible with correctly sized solar PV arrays.
• Technical sizing and installation guidance available from Macire.

Applications / Use Cases

• 🚜 Farms – Solar-powered irrigation and livestock watering.
• 🏠 Homes – Borehole and storage-tank water supply.
• 🌱 Irrigation – Direct daytime solar water pumping.
• 🐄 Livestock – Pumping water to troughs and storage tanks.
• 🏢 Institutions – Solar-powered water supply systems.
• 🌍 Remote Locations – Water pumping where grid electricity is unavailable.

Installation & Engineering Notes

The DYS-120 should be matched to the correct pump rating and solar PV configuration. Solar-panel voltage and power must remain within the controller’s specified operating limits.

Install the controller in a protected, ventilated location and use correctly rated DC cables, isolators and electrical protection. Proper borehole water-level sensing is recommended where applicable.

Macire can provide technical guidance when matching the controller with the pump and solar array.

Care, Maintenance & Operations

• Keep the controller clean and protected from excessive moisture.
• Regularly inspect DC cables and electrical connections.
• Keep solar panels clean for optimum energy production.
• Check water-level sensors where installed.
• Maintain adequate ventilation around the controller.
• Investigate protection alarms before repeatedly restarting the system.
• Ensure the connected pump remains within the controller’s rated capacity.
• Contact Macire for technical support and compatible replacement components.

Do’s & Don’ts

Do’s

• Use a correctly rated DC solar pump.
• Size the PV array correctly.
• Install appropriate DC protection.
• Maintain secure electrical connections.
• Protect the controller from water ingress.
• Follow correct polarity during installation.

Don’ts

• Do not exceed the controller’s rated power.
• Do not reverse DC polarity.
• Do not connect an incompatible pump.
• Do not operate with damaged cables.
• Do not install in an unprotected wet location.
• Do not modify internal controller components.

Compatibility

The Doyin DYS-120 is suitable for integration with:

• Compatible Doyin DC solar water pumps
• Solar PV modules
• Borehole pumping systems
• Water-level sensors
• Storage tanks
• Irrigation systems
• DC isolators and protection devices

Correct component matching is essential for reliable operation.

Performance Guide

Actual water flow and pumping head depend primarily on the connected pump, solar-array sizing and installation conditions.

Mini FAQ

1. What pump size can the DYS-120 control?
It is designed for compatible DC solar pumping systems up to its 1100W rated capacity.

2. Does it require grid electricity?
No. It is intended for DC solar-powered pumping installations.

3. Can it protect a borehole pump from dry running?
The controller supports pump-protection functions, with correct sensor and system configuration required where applicable.

4. Does Macire provide installation support?
Yes. Macire can assist with pump, controller and solar-array matching and installation guidance.

5. Is nationwide delivery available?
Macire can arrange delivery to customers across Kenya.
