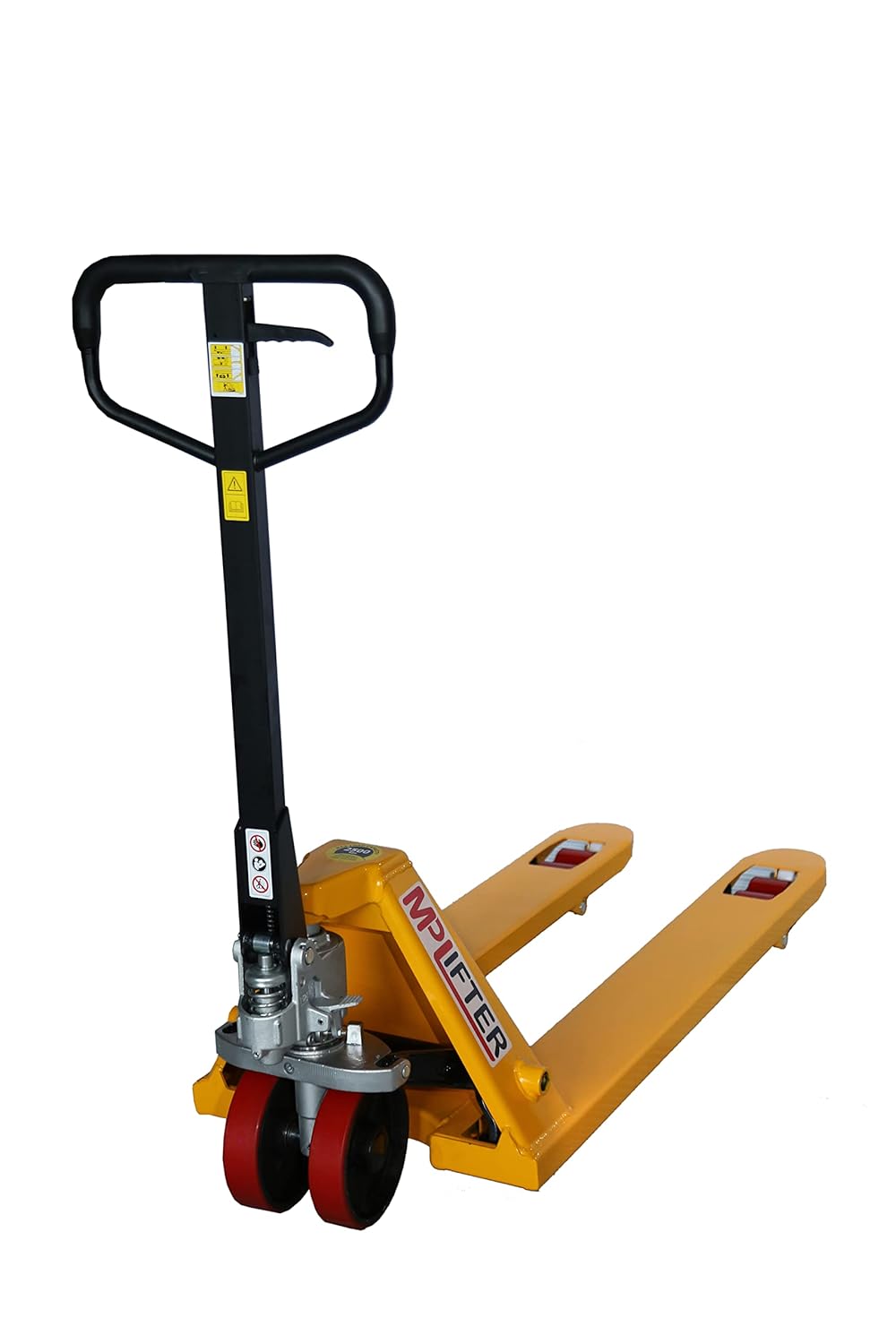

3 Ton Hisaki Narrow Pallet Truck – Japan Technology – Platform Trolley

3 Ton Hisaki Narrow Pallet Truck – Japan Technology

Efficient, durable, and designed with precision, the 3 Ton Hisaki Narrow Pallet Truck combines advanced Japan Technology with reliable engineering to handle heavy-duty tasks effortlessly. Perfect for warehouses, factories, and distribution centers, this pallet truck ensures seamless movement of up to 3 tons (6,600 lbs) of load with absolute ease. Crafted with Macire’s quality assurance, it’s a must-have for any professional handling heavy loads.

🌟 Key Features

• 3-Function Hand Control: Effortlessly raise, lower, and set to neutral for smooth handling and precise control.
• Spring-Loaded Loop Handle: Automatically returns to the upright position for added operator convenience.
• 200° Steering Arc: Superior maneuverability for tight spaces and narrow aisles.
• Polyurethane Steering Wheels: Leave floors unmarked while ensuring excellent durability and performance.
• Sealed Endura Pump: Leak-proof design with a hardened chrome piston and ram for smooth, trouble-free operation.
• Entry Guide Wheels: Easily guide forks into pallets, minimizing effort and saving time.
• Tapered Forks: Smooth pallet entry, reducing wear and tear on forks and pallets.

🔧 Specifications

• Capacity: 3,000 kg / 6,600 lbs
• Fork Length: 1150 mm / 45.3 in
• Width (Overall Forks): 540 mm / 21.3 in
• Min Fork Height: 85 mm / 3.3 in
• Max Fork Height: 205 mm / 8 in
• Individual Fork Width: 6.25 inches
• Forks Raised Height: 7.5 inches
• Forks Lowered Height: 3 inches
• Finish: Durable powder coat for enhanced longevity

📦 Application Areas

The Hisaki 3 Ton Pallet Truck is ideal for:

• Warehouses – Moving bulk goods quickly and efficiently.
• Manufacturing Plants – Transporting heavy materials safely.
• Retail Distribution – Maneuvering items in narrow aisles.
• Logistics & Shipping – Ensuring smooth cargo handling in depots.

🛠️ Maintenance Tips for Longevity

Keep your Macire-certified pallet truck running smoothly with these tips:

1. Inspect Regularly: Check for wear and tear on wheels, forks, and hydraulic components.
2. Lubricate Moving Parts: Ensure all joints and the pump are well-lubricated.
3. Keep Clean: Remove dirt, grease, and debris from wheels and forks.
4. Avoid Overloading: Do not exceed the 3-ton capacity to protect the hydraulic system.
5. Store Properly: Park in a dry, covered area to prevent rust and corrosion.

🛠️ DIY Operation Guide

1. Position Forks: Align forks to the pallet opening.
2. Raise Forks: Use the hand control to lift the load slightly off the ground.
3. Transport: Steer using the 200° loop handle for precise movement.
4. Lower the Load: Gently lower the pallet to the ground using the control lever.

⚠️ Do’s and Don’ts

✅ Do’s:

• Use for even and balanced loads.
• Inspect hydraulic systems before every use.
• Follow the load capacity strictly.

❌ Don’ts:

• Do not operate on uneven or sloping surfaces.
• Avoid sudden jerks to prevent damage to the pump.
• Do not use for handling chemical spills or hazardous loads.

❓ Frequently Asked Questions (FAQs)

1. What is the maximum load capacity?
The Hisaki 3 Ton Narrow Pallet Truck can handle up to 3,000 kg (6,600 lbs).

2. Can it be used outdoors?
Yes, but it’s best used on smooth, level surfaces. Avoid uneven terrain for optimal performance.

3. How often should I maintain the pallet truck?
Perform routine maintenance every 3 months or after every 500 hours of use.

4. Are replacement parts available?
Yes, Macire provides high-quality replacement parts for wheels, forks, and hydraulic systems.

5. Can one person operate it?
Yes, the ergonomic design ensures one-person operation with minimal effort.
