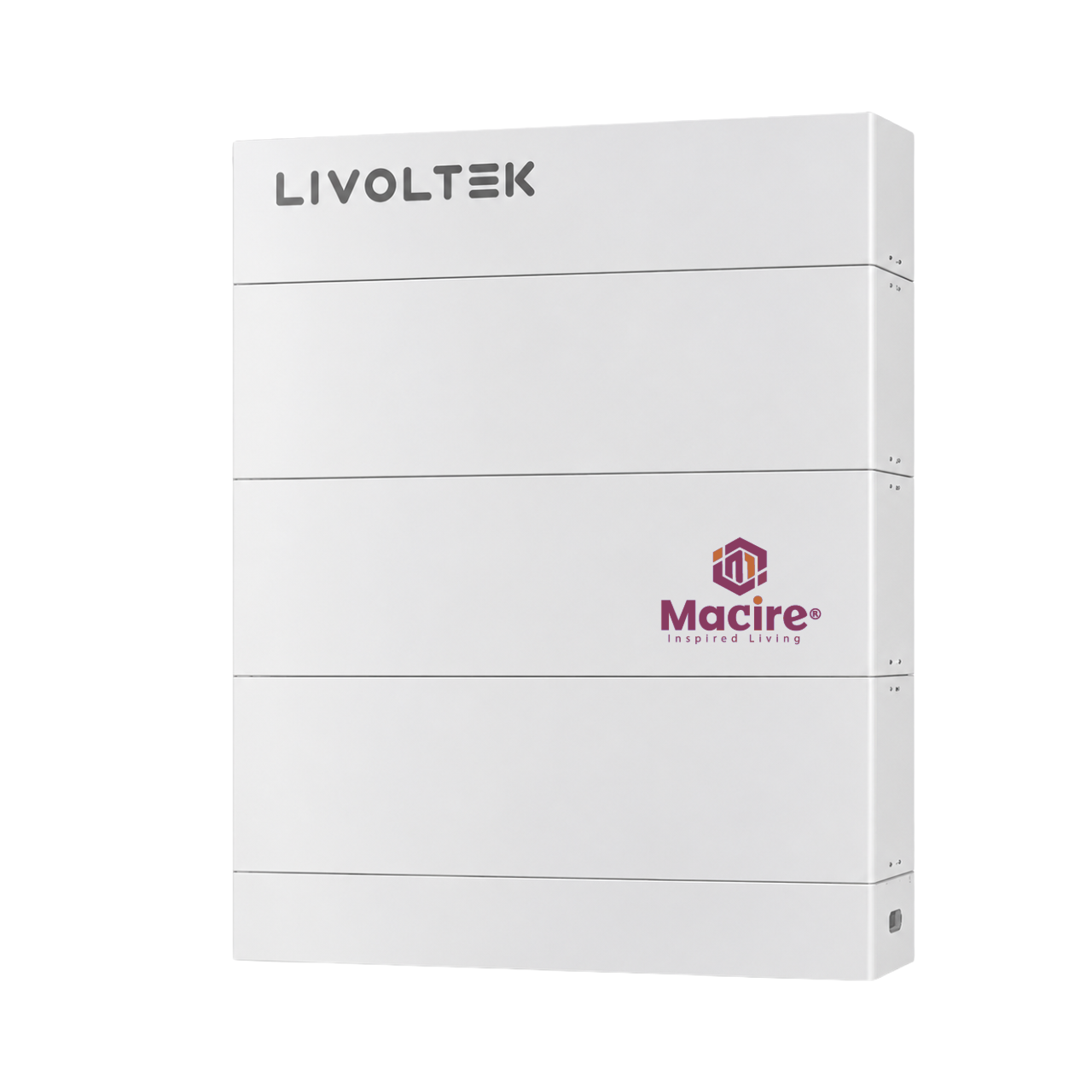

???? Macire 20kW Lithium Battery Livoltek High-Voltage BHF-S20 ????

Unleash the full potential of your residential energy storage with the Macire 20kW Lithium Battery Livoltek High-Voltage BHF-S20. This state-of-the-art battery system combines innovative technology, exceptional efficiency, and robust design to cater to all your high energy demands.

Key Features:

High Energy Density: ???? The Macire BHF HV Battery System boasts superior energy density, offering maximum storage capacity to meet your extensive energy needs.
Modular Stacking Design: ???? Designed with a modular stacking system, this battery allows for easy installation and scalability, supporting both floor and wall mounting to seamlessly fit your space.
Durable & Versatile: ????️ With an IP65 rating, this battery system is ideal for both indoor and outdoor installations, ensuring durability and reliable performance in various environments.
Long Cycle Life: ???? Utilizing the safest prismatic LFP batteries, the Macire BHF-S20 offers a long cycle life, maintaining high efficiency and reliability over time.
Remote Fault Diagnosis & Maintenance: ????️ Features remote fault diagnosis, upgrade, and maintenance capabilities, simplifying management and ensuring optimal performance.
High Efficiency & Reliability: ???? Delivers high efficiency, high energy density, and 90% Depth of Discharge (DOD), ensuring consistent and reliable power for all your energy needs with Macire’s trusted technology.

Specifications:

Capacity: 20kWh
Voltage: High Voltage
Model: BHF-S20
Nominal Voltage: 409.6V
Operating Voltage Range: 259.2V-345.6V
Battery Module: 102.4V 50Ah 5.12kWh
Number of Modules: 4
Total Energy: 20.5kWh
Usable Energy: 18.4kWh
Rated Capacity: 50Ah
Nominal Power: 10.2kW
Max. Power: 19.7kW
Rated Charge/Discharge Current: 25A
Max. Charge/Discharge Current: 48A
Cycle Life: 6000 Cycles[1]
Expected Life Time/Warranty: 10 Years
Operating Temperature Range: Charge: 0℃~55℃; Discharge: -20℃~55℃
Storage Temperature: -20℃~55℃
Operating Humidity: 5%-95%
Operating Altitude: Below 4000m
Protection Degree: IP65
Installation Location: Wall-mounted / Ground-mounted
Battery to Inverter Communication: CAN
Battery to Battery/BMS: CAN
Certificate: CE, UN38.3, IEC62619, IEC61000
Protective Level: I
Dimensions (W×H×D mm): 8701455208.7
Net Weight: 271kg

Elevate your energy storage with the Macire 20kW Lithium Battery Livoltek High-Voltage BHF-S20. Designed to provide efficient, reliable, and scalable energy solutions for modern homes, it is the perfect choice for sustainable living. Embrace the future of energy storage with Macire! ???????? #EnergyStorage #SustainableLiving
